TLS 15 container system in stock

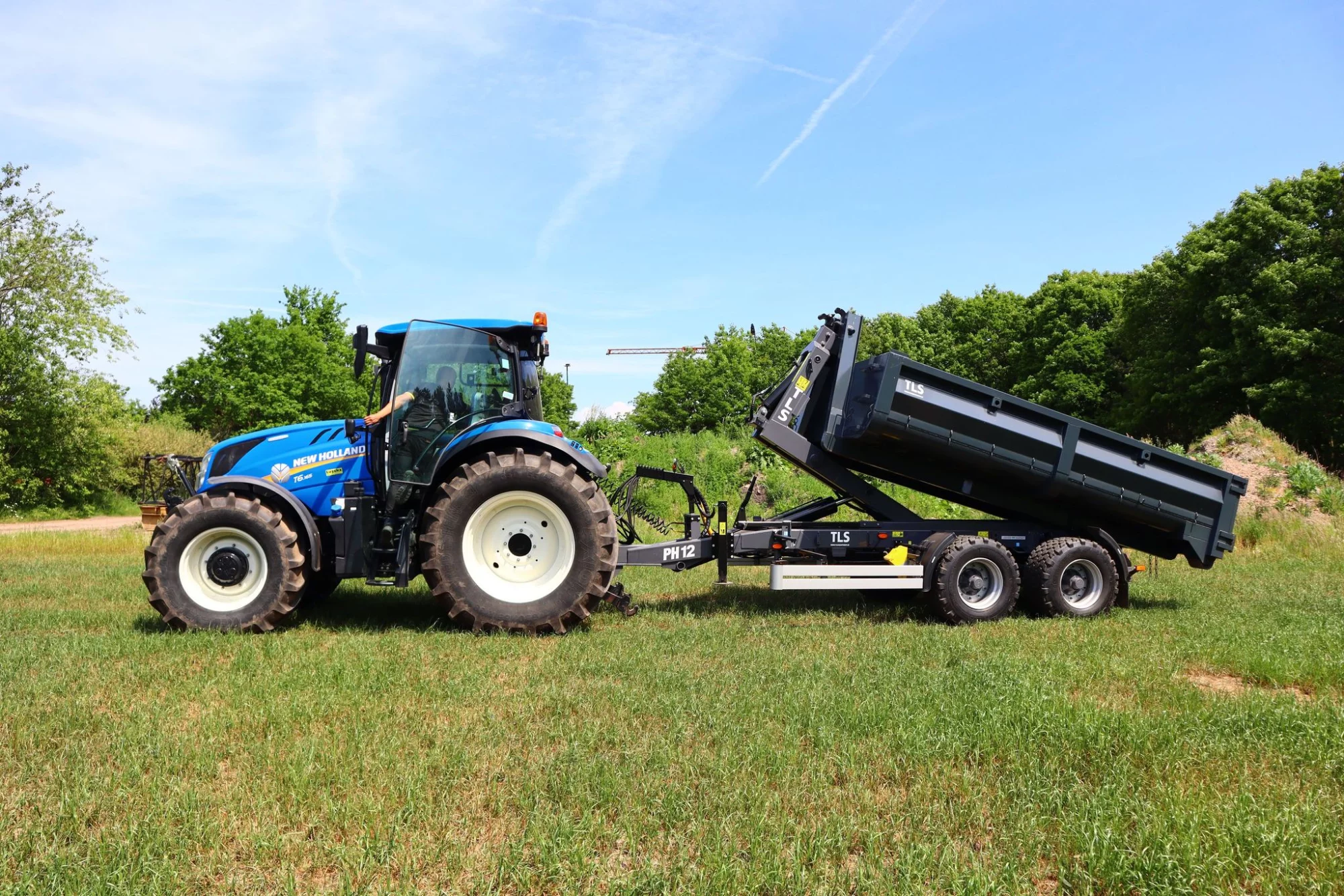

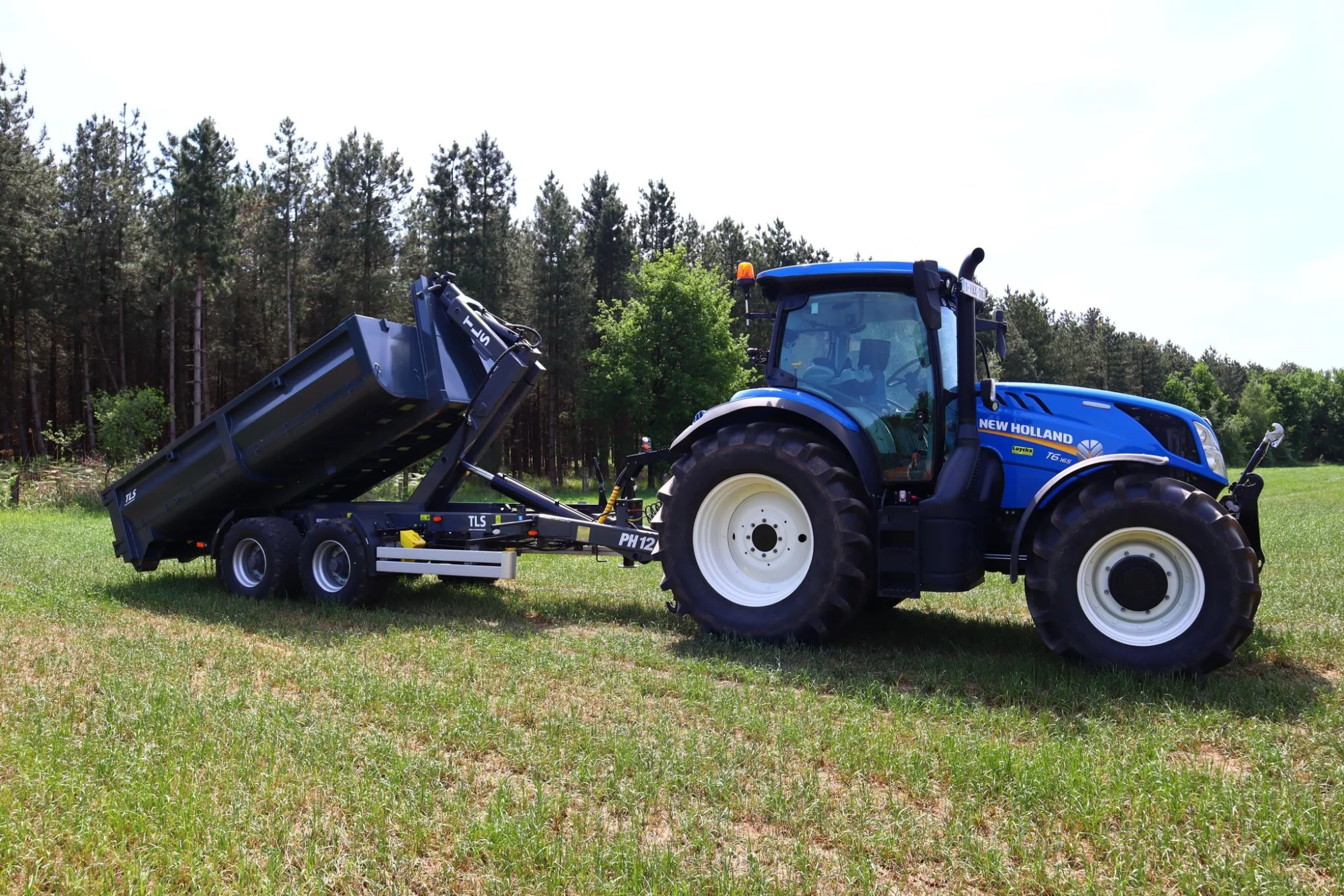

Wednesday, May 18, 2022We can deliver the TLS 15 container system with container loading bucket from stock.
Specificaties:
- Containers 4100 - 4600mm (optimally 4500mm)
- Arm length to reels 4000mm
- Tipping angle 52°

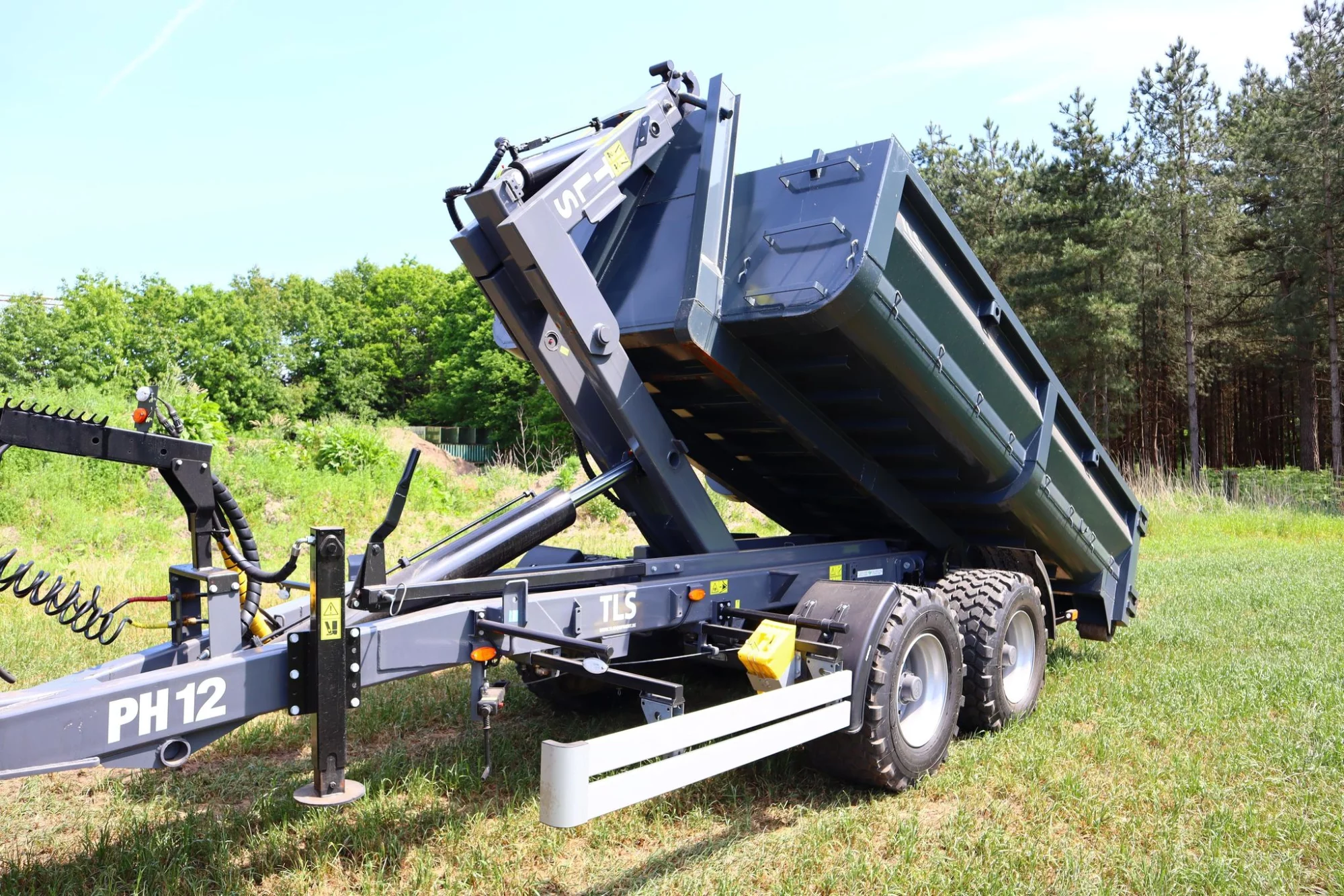

- Systeem TLS: articulated arm
- MTM: 15900kg
- Pull up force: 15000kg
- Own weight: +/- 2800kg
- Master cylinders: 1 stuk
- Min hp: 90hp
- Pick up height: 510mm
- Hydraulic pressure: 200bar
- Hook height: 1450mm
- Total length including container: 6000mm
- Max width: 2550mm
- Operation: 3 dubbelwerkende ventielen in standaard
Opties inclusief:
- Pneumatic braking system
- Turning eye 50mm
- Extra wide tires

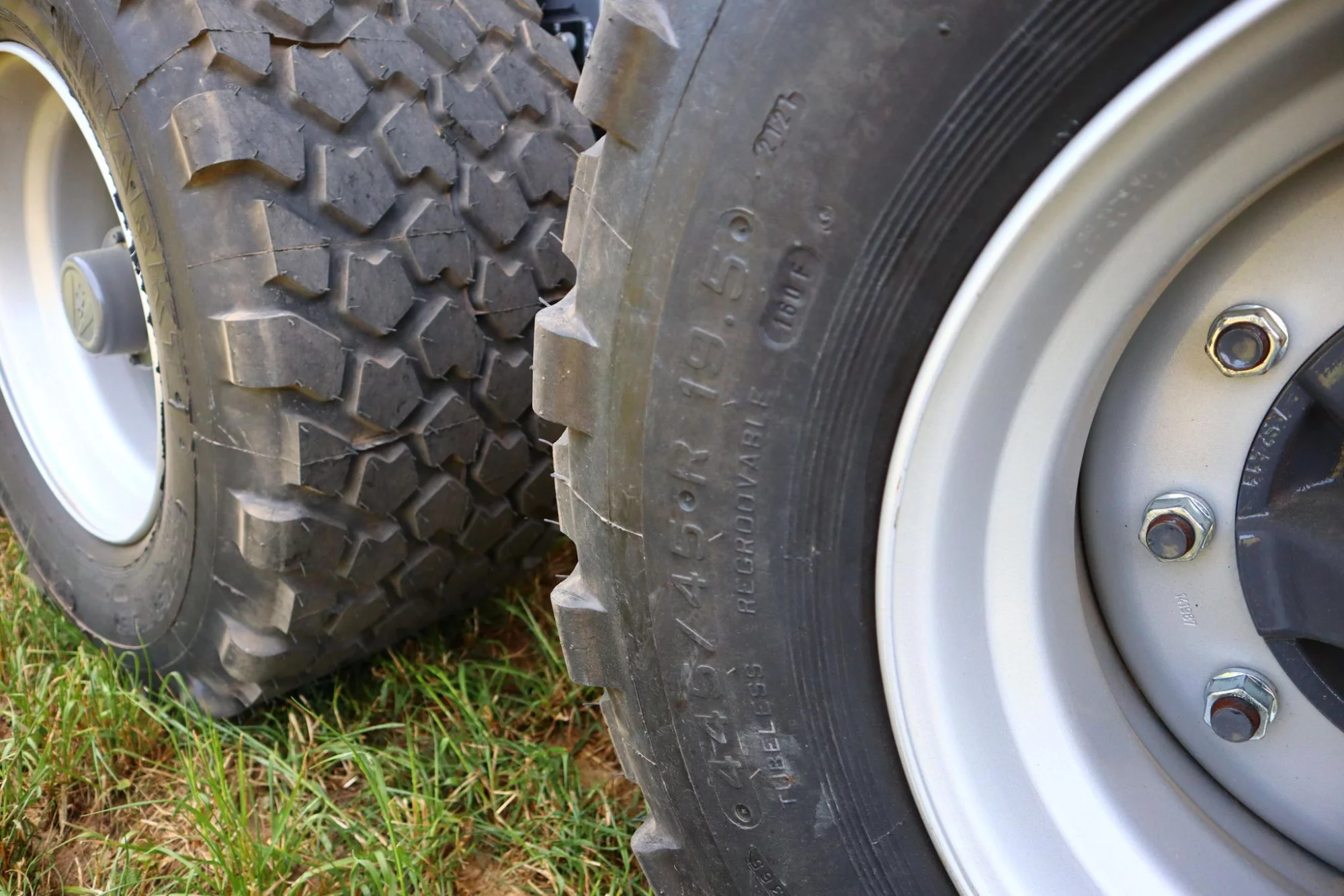

- Size 445/45R 19.5
- Brand: bandenmarkt
- Supplied control free
- Picked up by customer
- English manual
- CE certificate
Cargo containers:

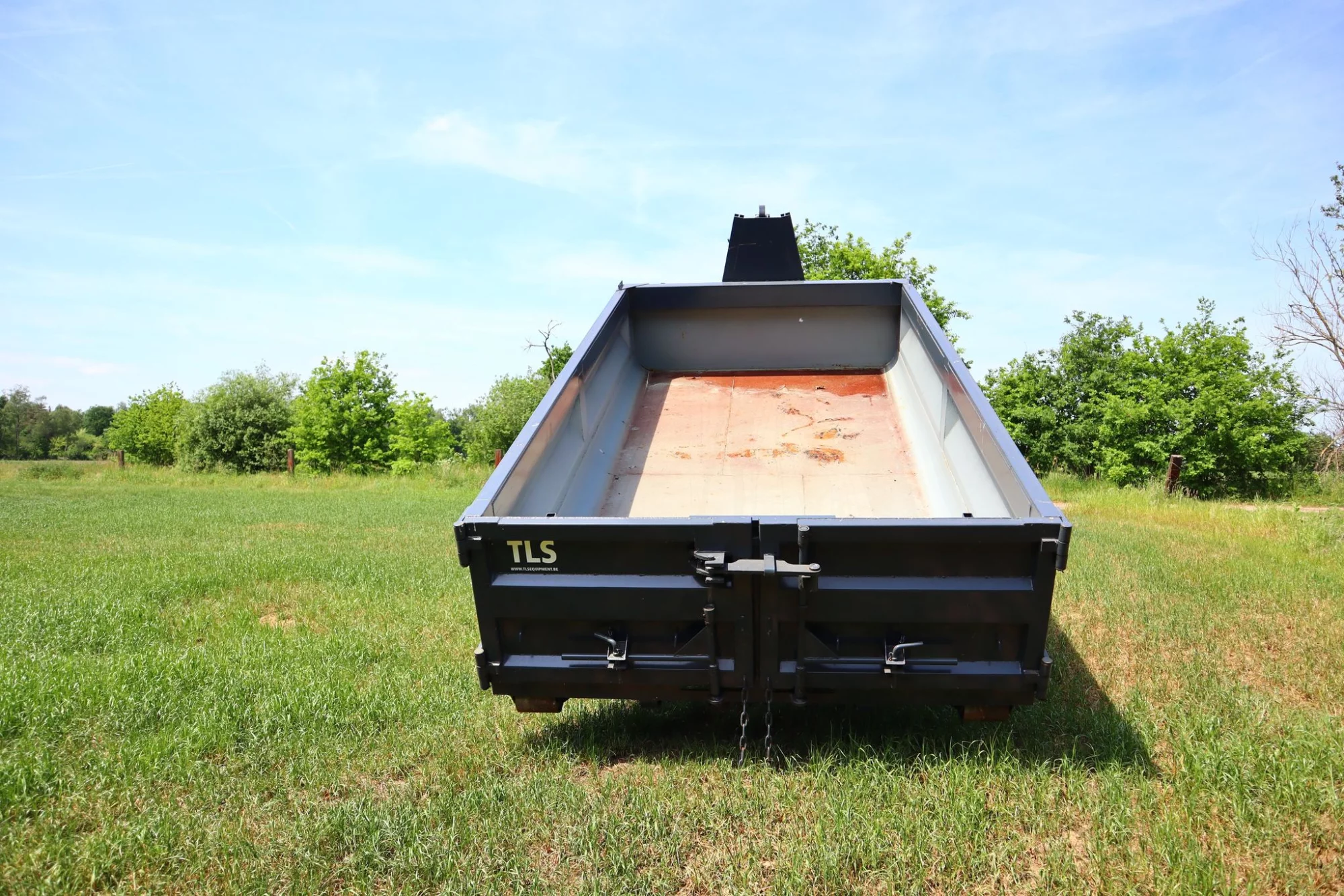

- Container bin
- ECO tank body type
- Dimensions loading bin
- Length: 4250mm
- Width: 2300mm
- Height: 800mm
- Sheet thickness
- Bottom: 4mm
- Sides: 3mm
Price on request
