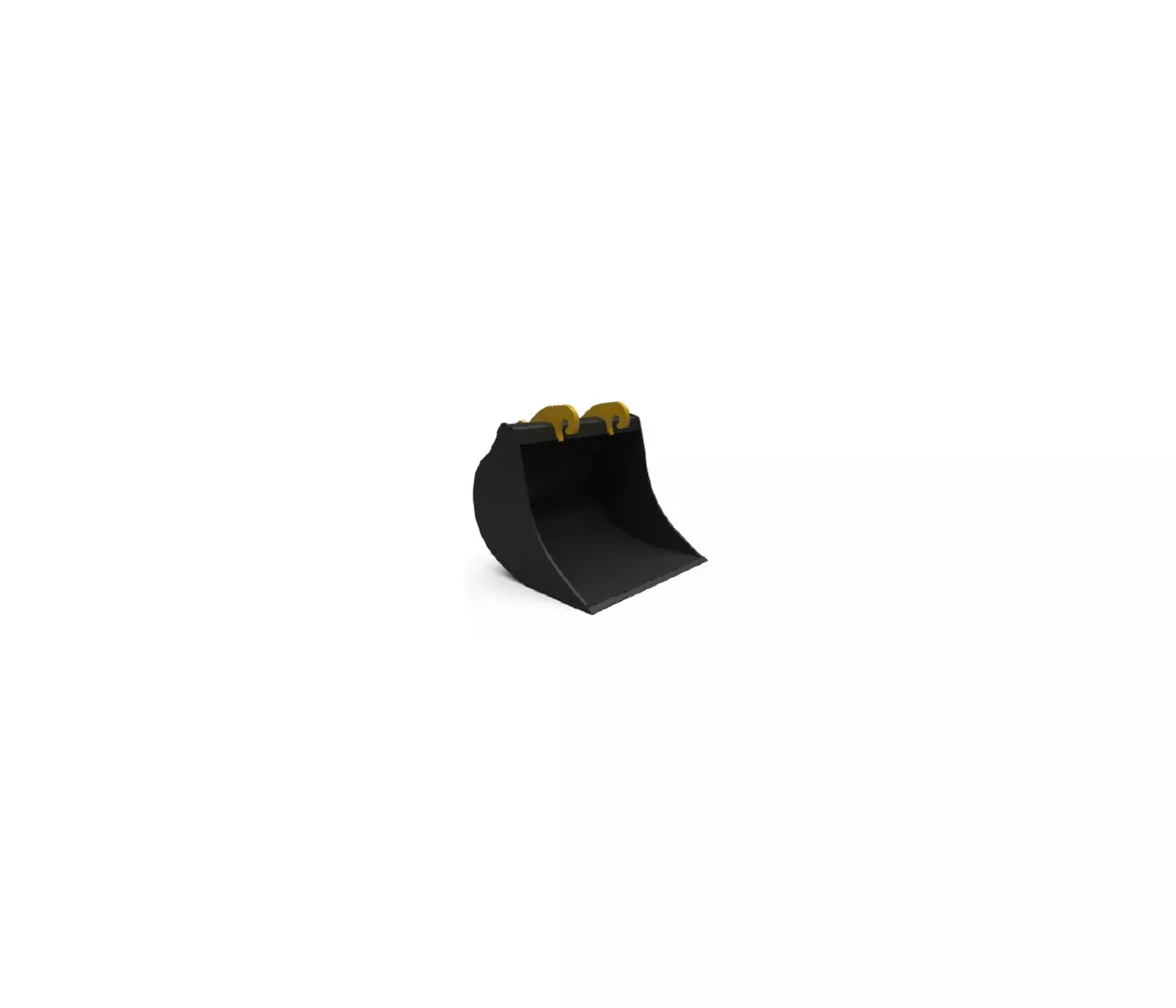

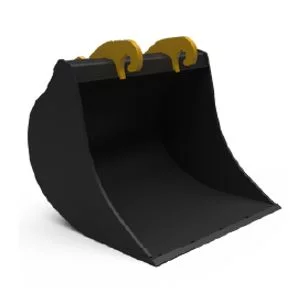

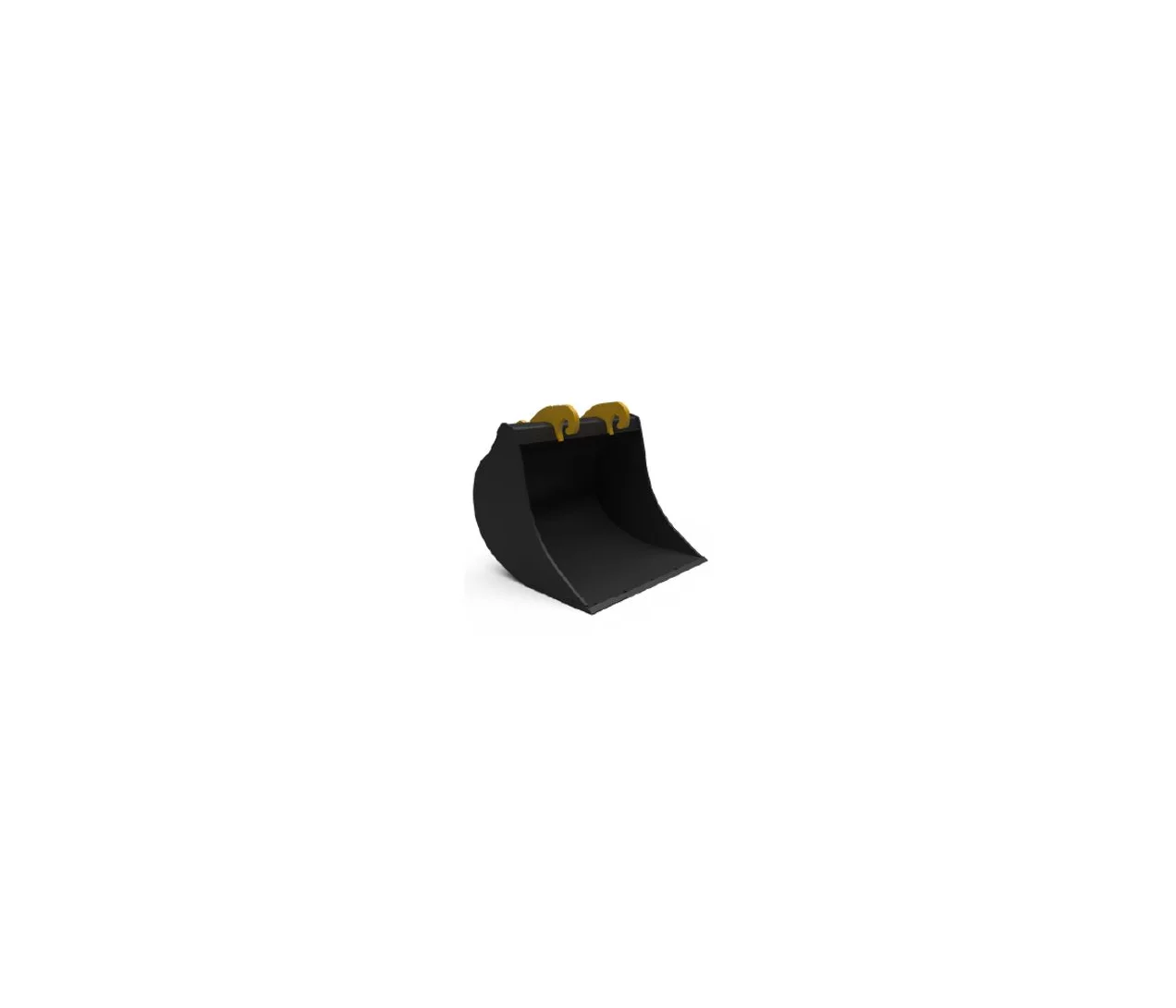

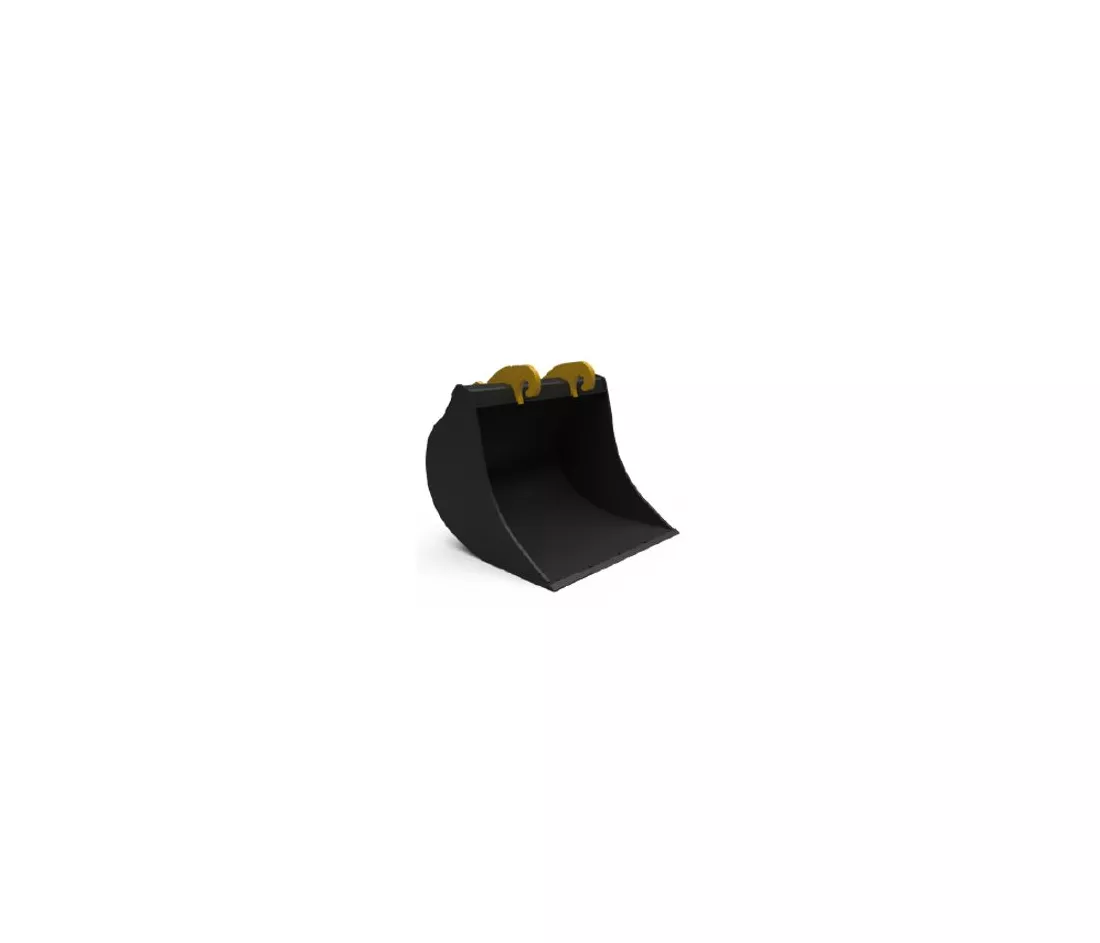

LX digging bucket - LXRB1
Excavator buckets - general purpose bucket
Luyckx manufactures its own digging buckets for mini excavators. Thanks to their robust construction, high-quality steel grades, and wear-resistant finish, our buckets are known for their long service life and high productivity.
Luyckx also offers custom-made digging buckets, fully tailored to your machine and specific application.
The specifications below apply to the standard version of digging buckets for machines in the 1 to 2 tonne class.
TECHNICAL SPECIFICATIONS:
| Type digging bucket | LXRB1 |
| Reference of digging bucket type 1: | TT0031001 |
| Standard bucket width: | 450mm |

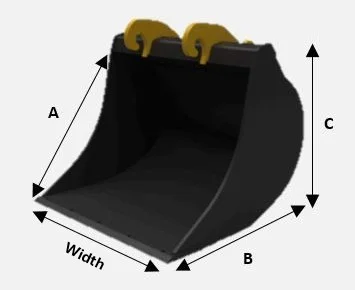

| Bucket opening (A): | 400mm |
| Depth (B): | 410mm |
| Height (C): | 356mm |
| Weight (from): | 45kg |
| Capacity: | 38L |
Suspension options for digging buckets 1-2T:
- Verachtert CW05
- Retromatic Module 0
- S30-180 System
Options / Extra's:
- Verachtert CW suspension can be equipped with a reversible version (TWIN)
- Wear strips on the back
- Welded cutting edge
- Bolt-on reversible cutting edge
