Pladdet tilting coupler with cylinders - PLKS55-C
The Pladdet PLKS55-C is a cylinder-operated tilting coupler specifically developed for the most demanding applications on excavators from 45 to 60 tonnes.
Whether it is for slope finishing, site grading, or precision excavation work, the Pladdet tilting coupler delivers optimal control and outstanding finishing results.
Thanks to its hydraulic tilt function, operators can easily work at different angles without having to reposition the machine. This results in greater efficiency, reduced equipment wear, and significant time savings.
Its heavy-duty construction, high-quality steel grades, and powerful hydraulic components enable the coupler to withstand the extreme loads associated with 50-tonne excavators. This ensures maximum reliability and a long service life, even under the most challenging working conditions.
TECHNICAL SPECIFICATIONS:
| PLKS55 small | PLKS55 | |
| Machine class: | 45-60T | 45-60T |
| Weight (from): | 1195kg | 1465kg |
| Build height - Pin centre distance (A): | 855mm | 880mm |
| Number of cylinders: | 2 pieces | 2 pieces |
| Tilt angle: | 2x45° | 2x45° |
| Oil flow: | 60l/min | 60l/min |
| Operating pressure: | 320bar | 320bar |
Configuration options:
- Fixed mounting / CW55small hydraulic quick coupler
- Fixed mounting / CW55 hydraulic quick coupler
- CW55small / CW55small hydraulic quick coupler
- CW55 / CW55 hydraulic quick coupler

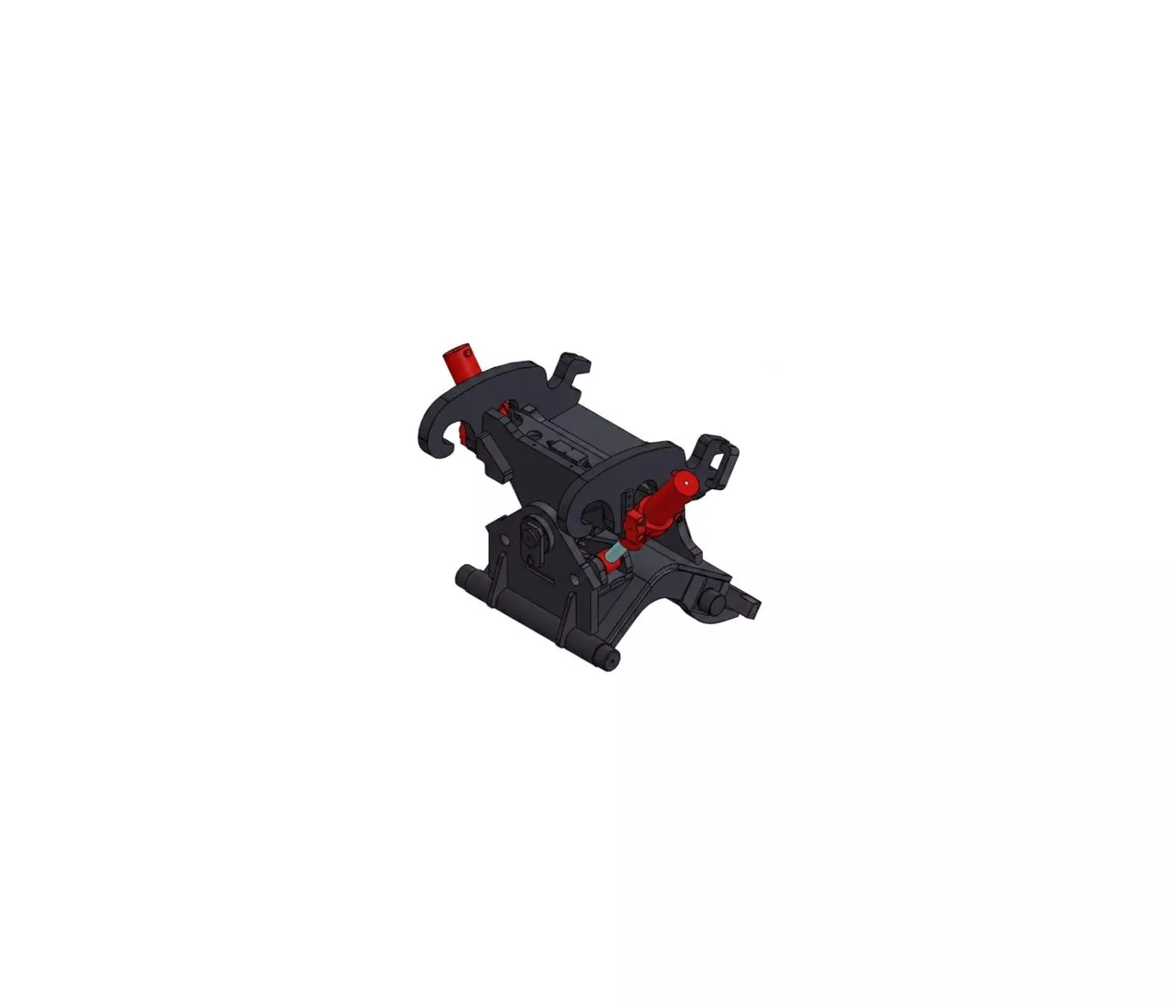

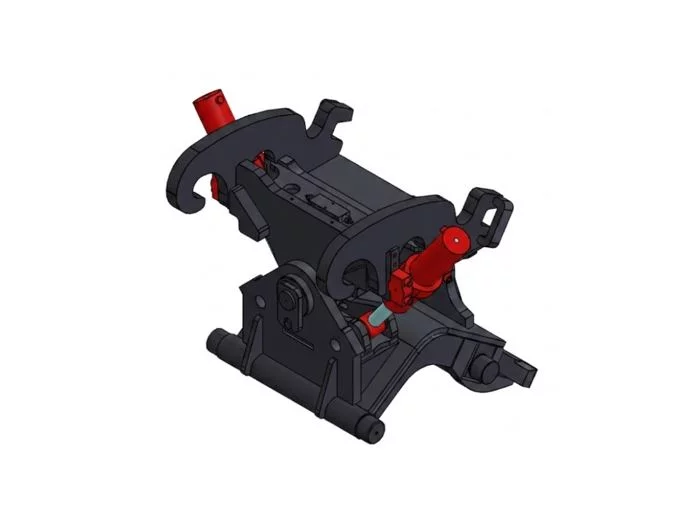

The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
