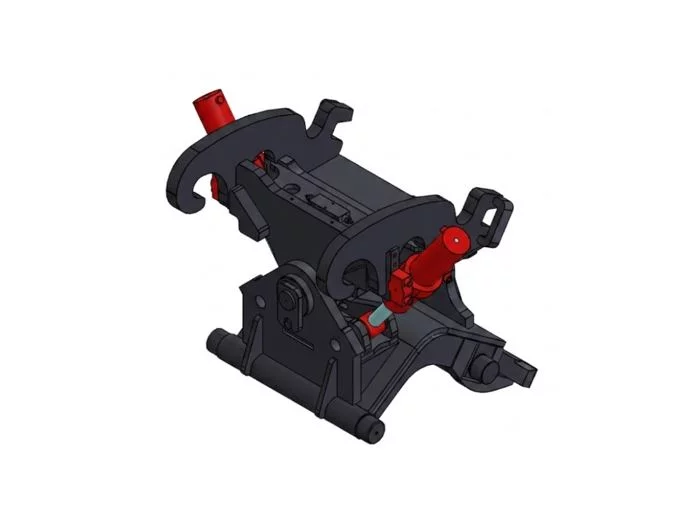

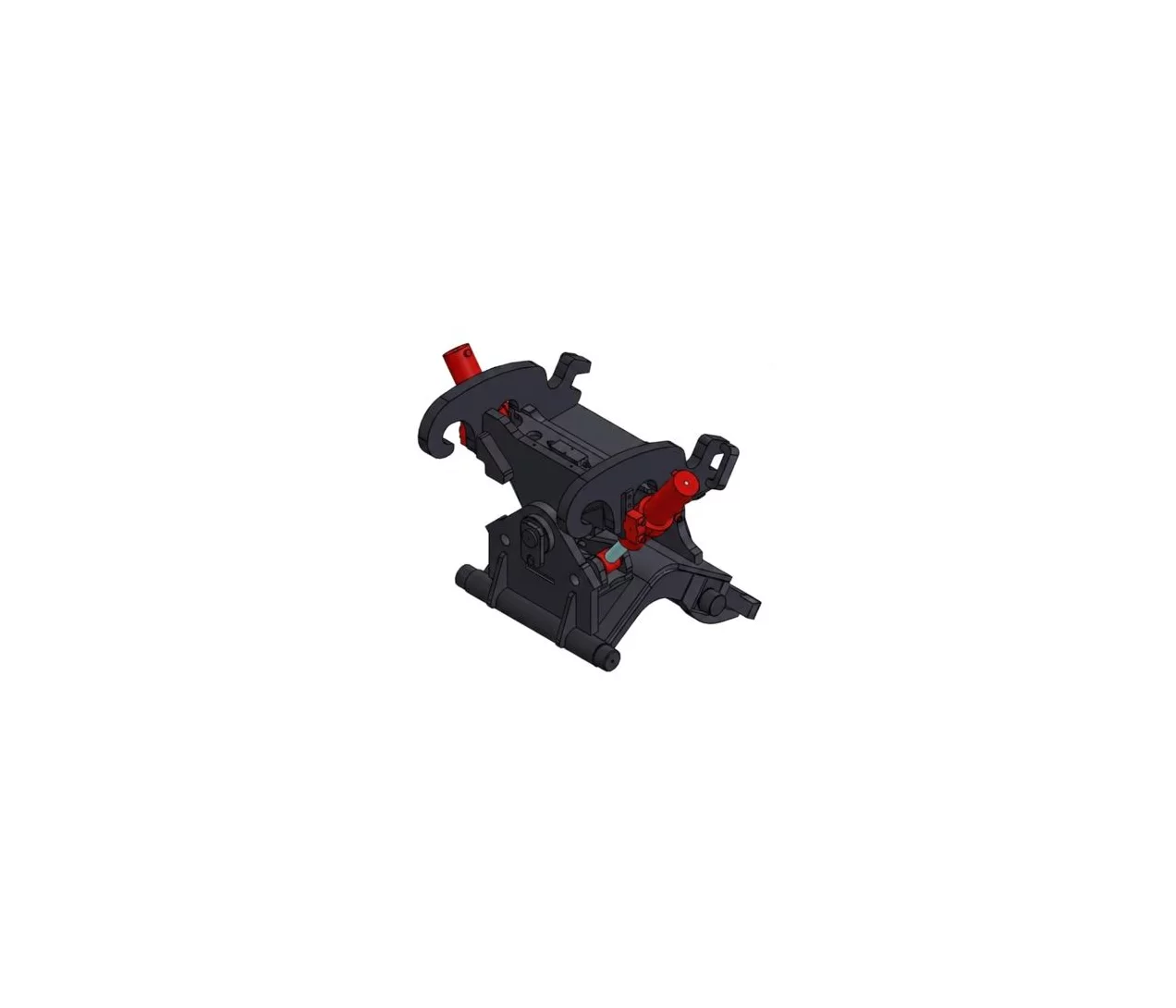

Pladdet tilting coupler with cylinders - PLKS45-C
The Pladdet PLKS45-C is a cylinder-operated tilting coupler suitable for excavators from 30 to 45 tonnes.
Although tiltrotators are becoming increasingly popular, a tilting coupler remains the most cost-effective choice for many applications. Not every job requires 360° rotation, while a tilting coupler still offers many of the same advantages at a significantly lower cost.
Thanks to its robust construction, low own weight, and minimal maintenance requirements, more lifting capacity remains available and operating costs are kept low. In addition, demolition tools such as hydraulic breakers can also be used with a tilting coupler.
TECHNICAL SPECIFICATIONS:
| Machine class: | 30-45T |
| Weight (from): | 550kg |
| Build height - Pin centre distance (A): | 748mm |
| Number of cylinders: | 2 pieces |
| Tilt angle: | 2x45° |
| Oil flow: | 50l/min |
| Operating pressure: | 320bar |
Configuration options:
- Fixed mounting / CW45 mechanical quick coupler
- Fixed mounting / CW45 hydraulic quick coupler
- CW45 / CW45 mechanical quick coupler
- CW45 / CW45 hydraulic quick coupler
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
