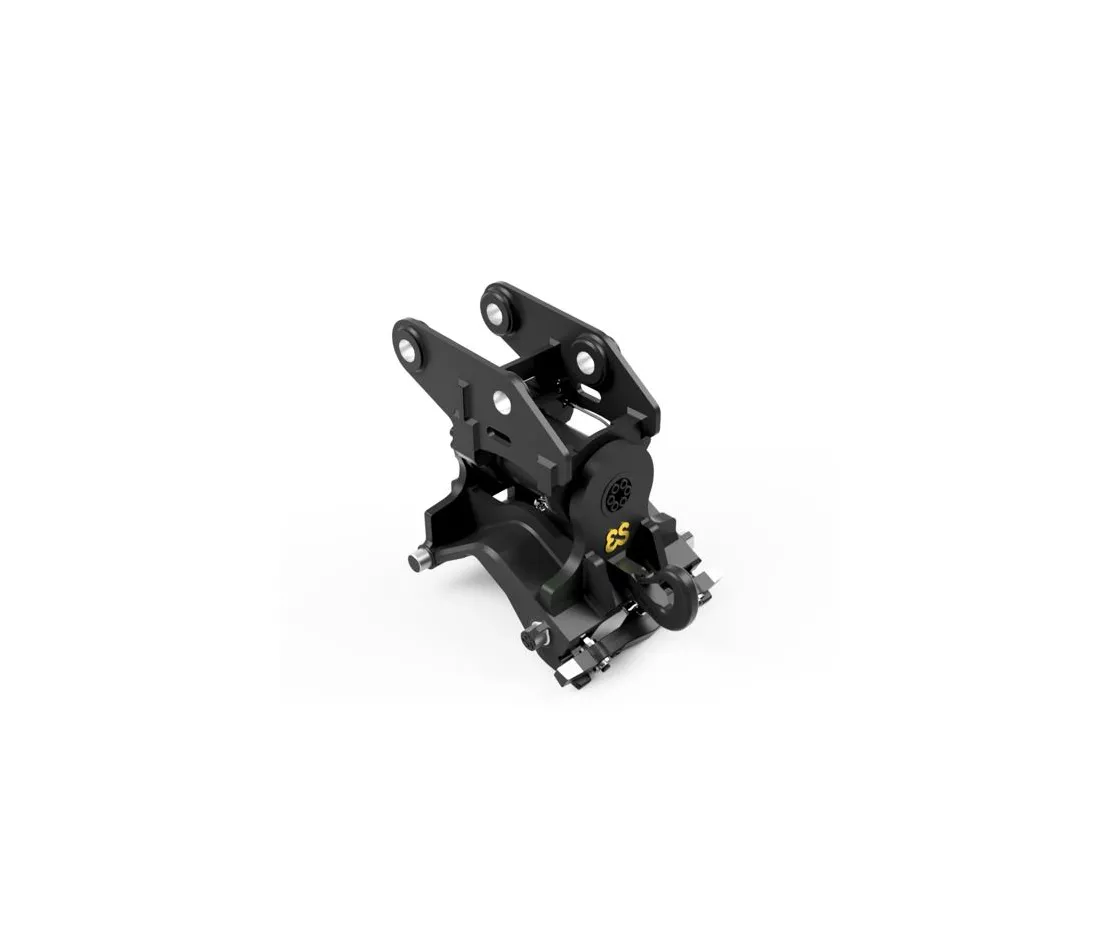

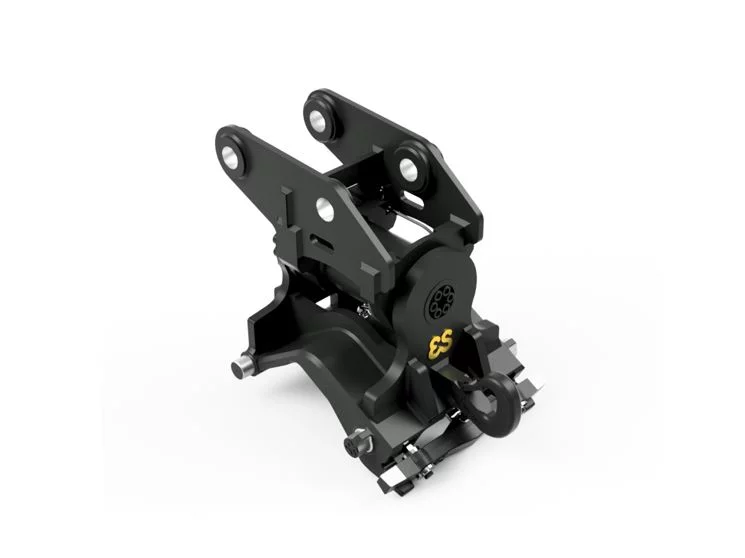

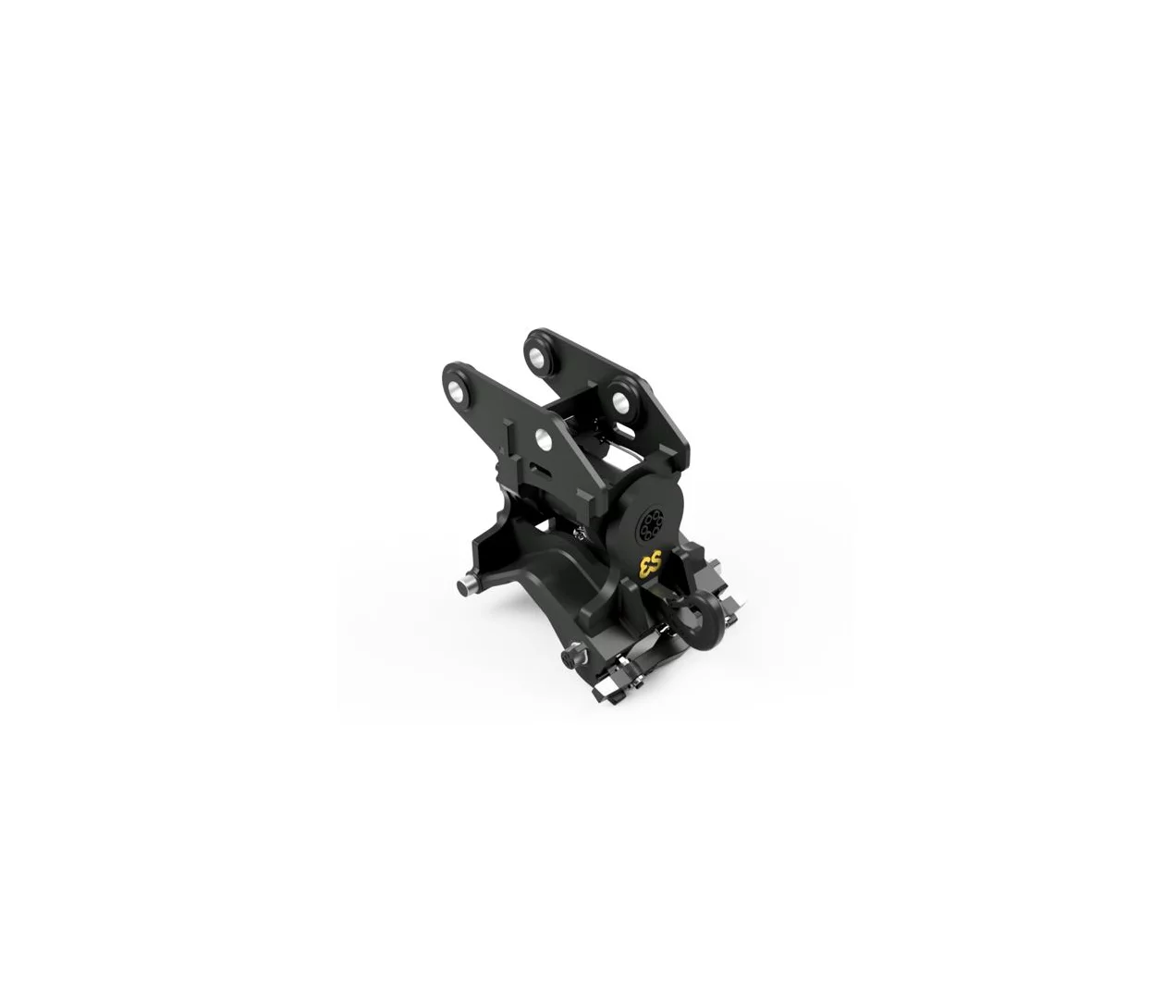

Eurosteel motorized tilt coupler - HKK3-PTA180
Tilting couplers - Motorized tilt couplers (10-35T)
The Eurosteel HKK3-PTA180 tilting coupler is designed for intensive use on excavators from 10 to 18 tonnes. This system combines robust hydraulic technology with a wide tilt range, giving operators maximum control during precision work and demanding earthmoving applications.
The PTA180 is known for its high torque, compact design, and durable construction. Thanks to the integrated Powertilt system, attachments can be tilted smoothly and precisely through a total angle of 120°, reducing machine repositioning and increasing productivity on site.
TECHNICAL SPECIFICATIONS:
| Machine class: | 10-18T |
| Weight (from): | 470kg |
| Tilt angle: | 2x60° |
| Oil flow: | 31-52l/min |
| Operating pressure: | 250bar |
Configuration options:
- Fixed mounting / CW30 mechanical quick coupler
- Fixed mounting / CW30 hydraulic quick coupler
- CW30 / CW30 mechanical quick coupler
- CW30 / CW30 hydraulic quick coupler
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
