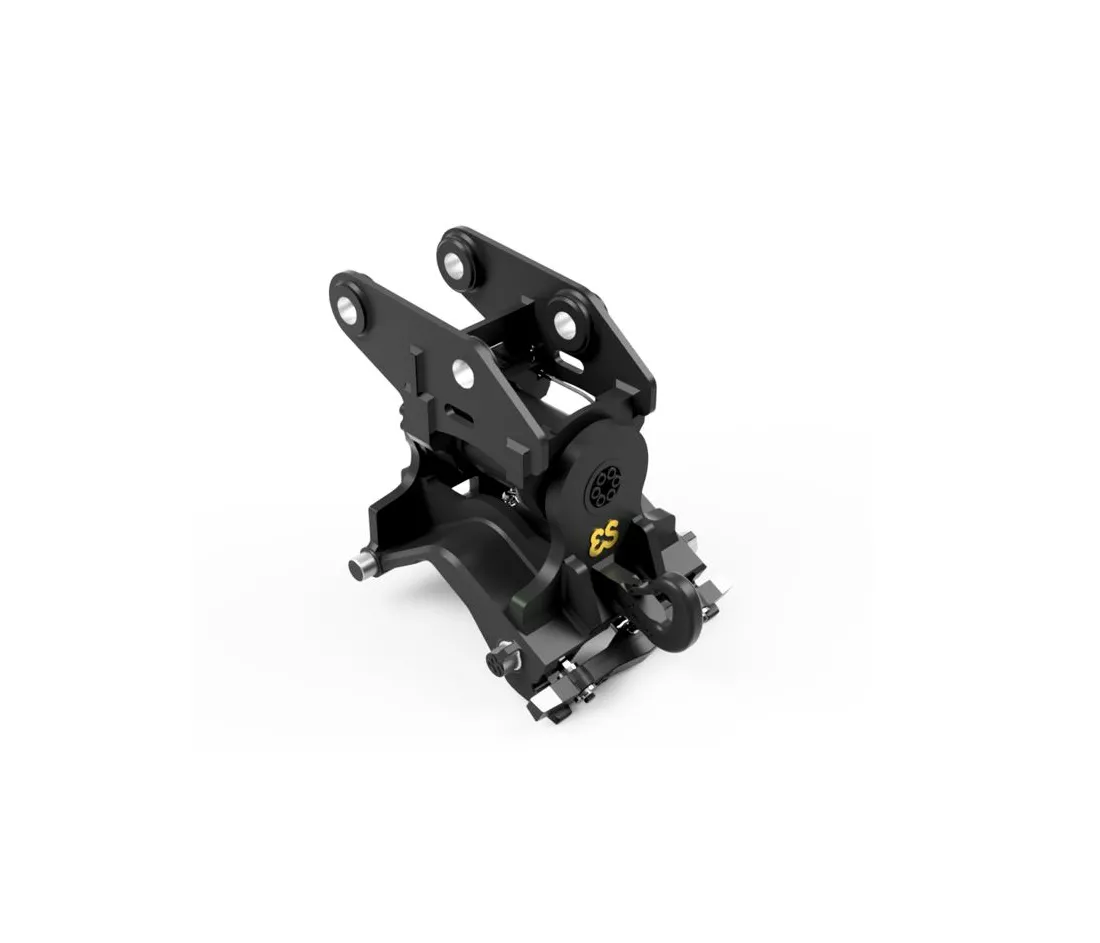

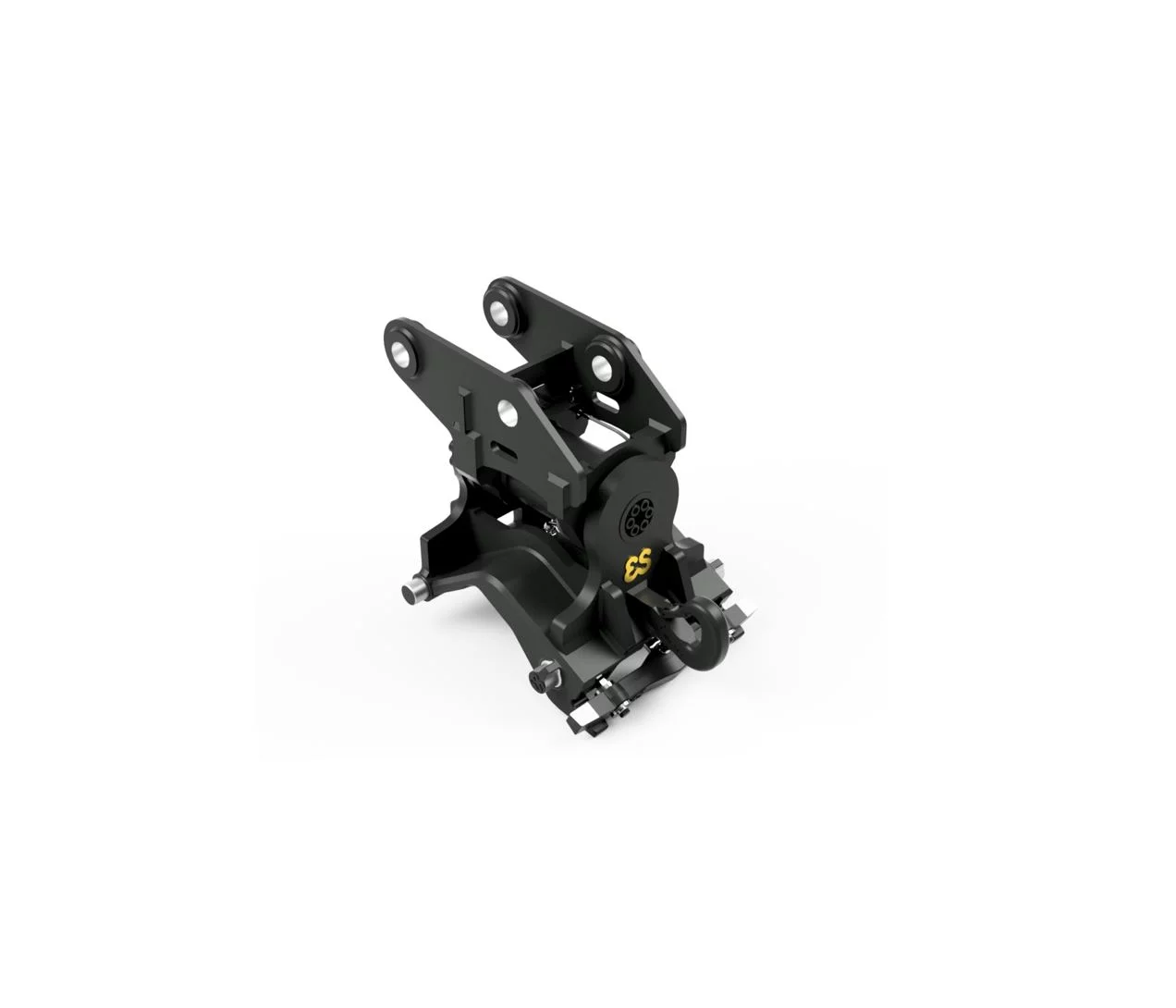

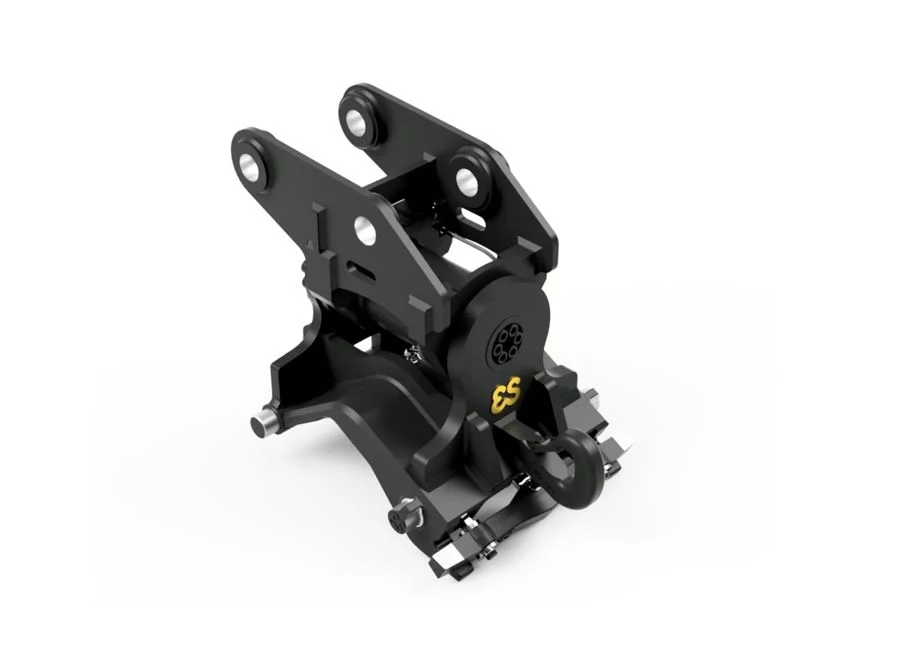

Eurosteel motorized tilt coupler - HKK4-PTA300
Tilting couplers - Motorized tilt couplers (10-35T)
The Eurosteel HKK4-PTA300 is a powerful tilting coupler designed for intensive use on medium to heavy excavators from 24 to 32 tonnes. This system combines robust hydraulic technology with a wide tilt range, giving operators maximum control during precision work and demanding earthmoving applications.
The PTA300 is known for its high torque, compact design, and durable construction. Thanks to the integrated Powertilt system, attachments can be tilted smoothly through a total range of 180°, reducing machine repositioning and increasing productivity on site.
TECHNICAL SPECIFICATIONS:
| PTA300 | PTA300-HD | |
| Machine class: | 24-29T | 29-32T |
| Weight (from): | 750kg | 820kg |
| Tilt angle: | 2x90° | 2x90° |
| Oil flow: | 57-95l/min | 57-95l/min |
| Operating pressure: | 250bar | 250bar |
Configuration options:
- Fixed mounting / CW40 mechanical quick coupler
- Fixed mounting / CW40 hydraulic quick coupler
- CW40 / CW40 mechanical quick coupler
- CW40 / CW40 hydraulic quick coupler
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
