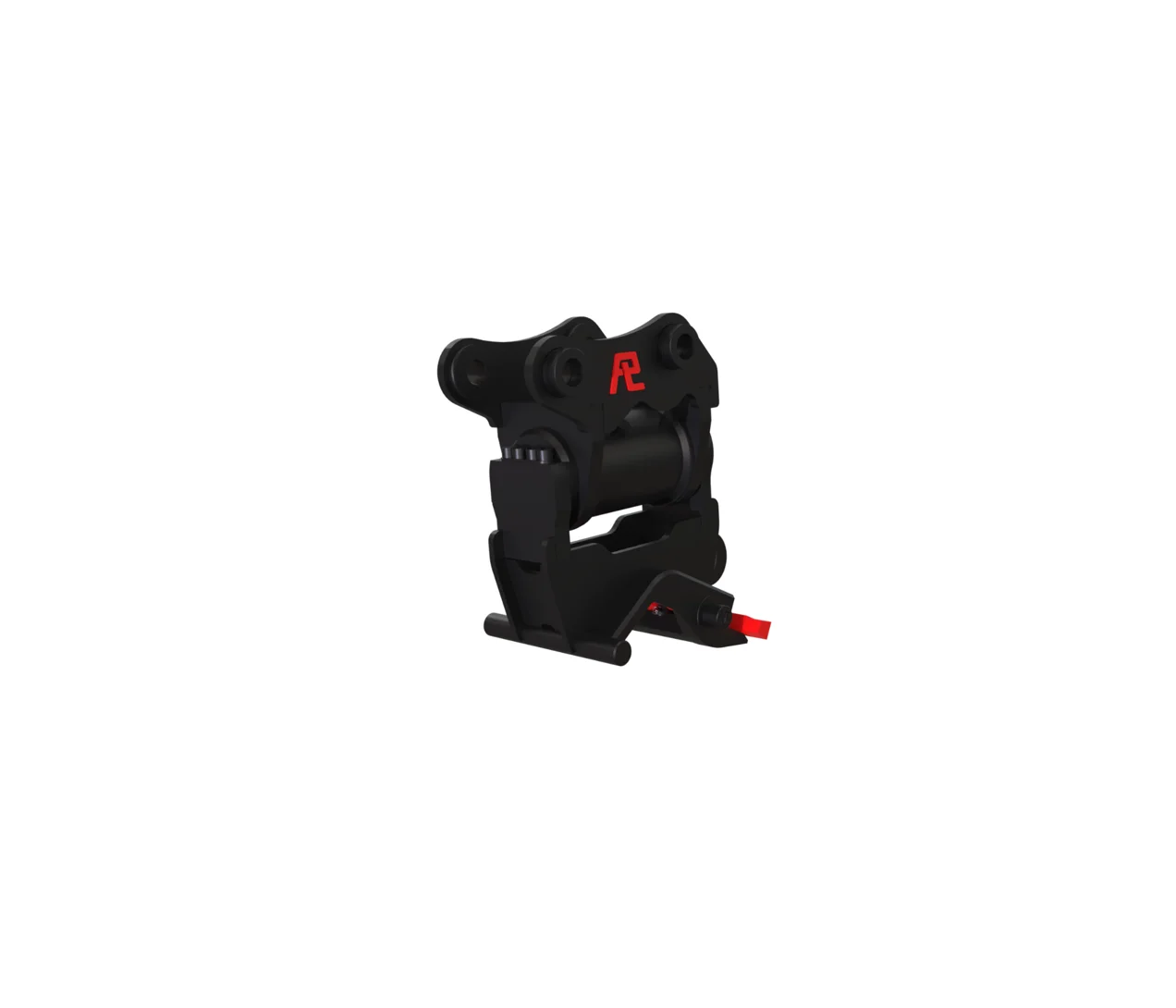

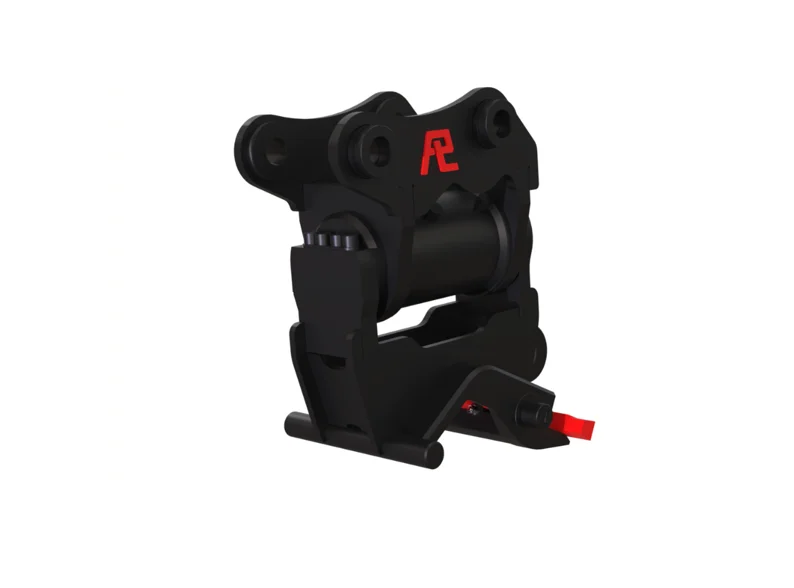

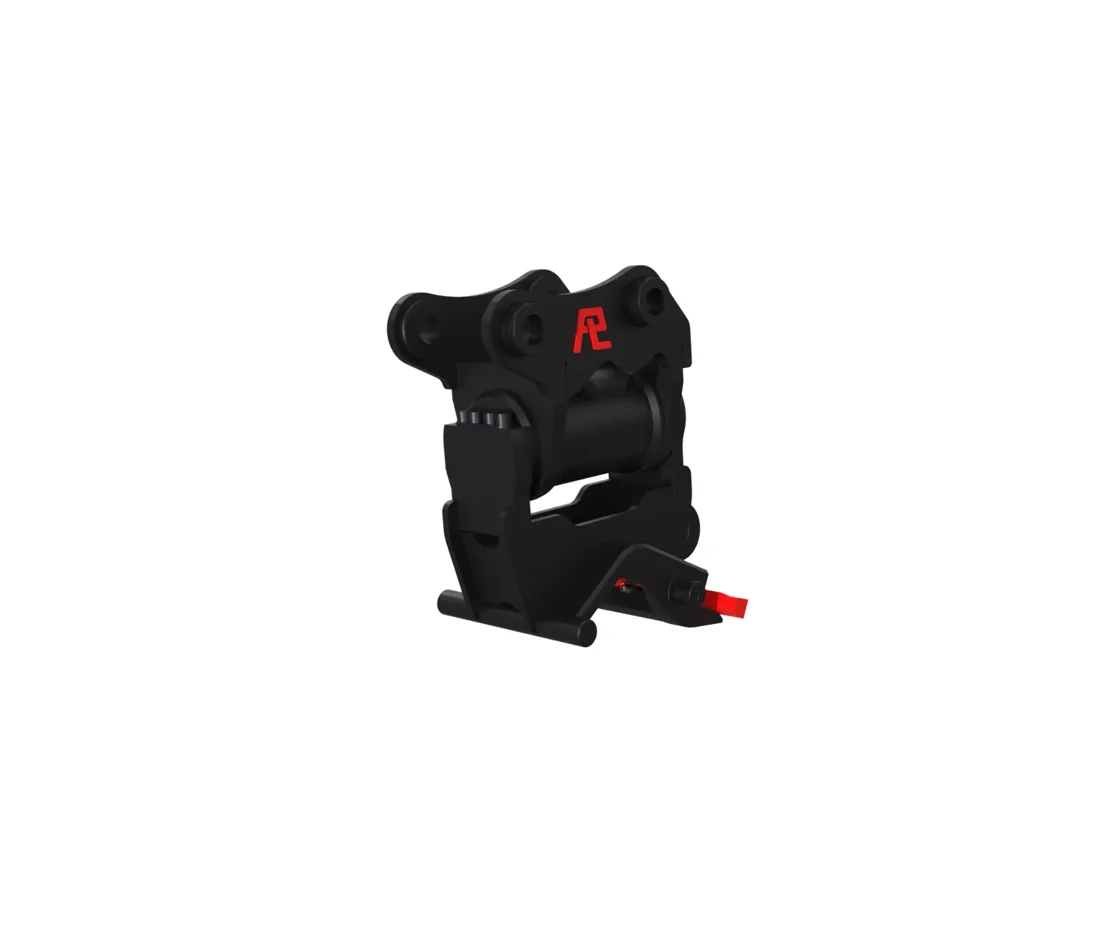

Pladdet motorized tilt coupler - PT6

Tilting couplers - Motorized tilt couplers (1-10T)

The Pladdet PT6 tilting coupler has been developed for mini excavators from 2 to 4 tonnes that require maximum control and flexibility for earthmoving, infrastructure, and finishing applications.

Thanks to its robust worm gear drive, the PT6 offers a wide tilt range and highly precise control, allowing every task to be completed faster and more efficiently. Suitable for machines in a higher weight class, this tilt motor combines power with a compact design.

TECHNICAL SPECIFICATIONS:

Machine class:2-4T
Weight (from):55kg
Tilt angle:2x90°
Oil flow:6l/min
Operating pressure:210bar

Configuration options:

  • Fixed mounting / CW05 mechanical quick coupler
  • Fixed mounting / CW05 hydraulic quick coupler
  • CW05 / CW05 mechanical quick coupler
  • CW05 / CW05 hydraulic quick coupler

Options / Extra's:

  • Lifting hook

Request a quote

The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
