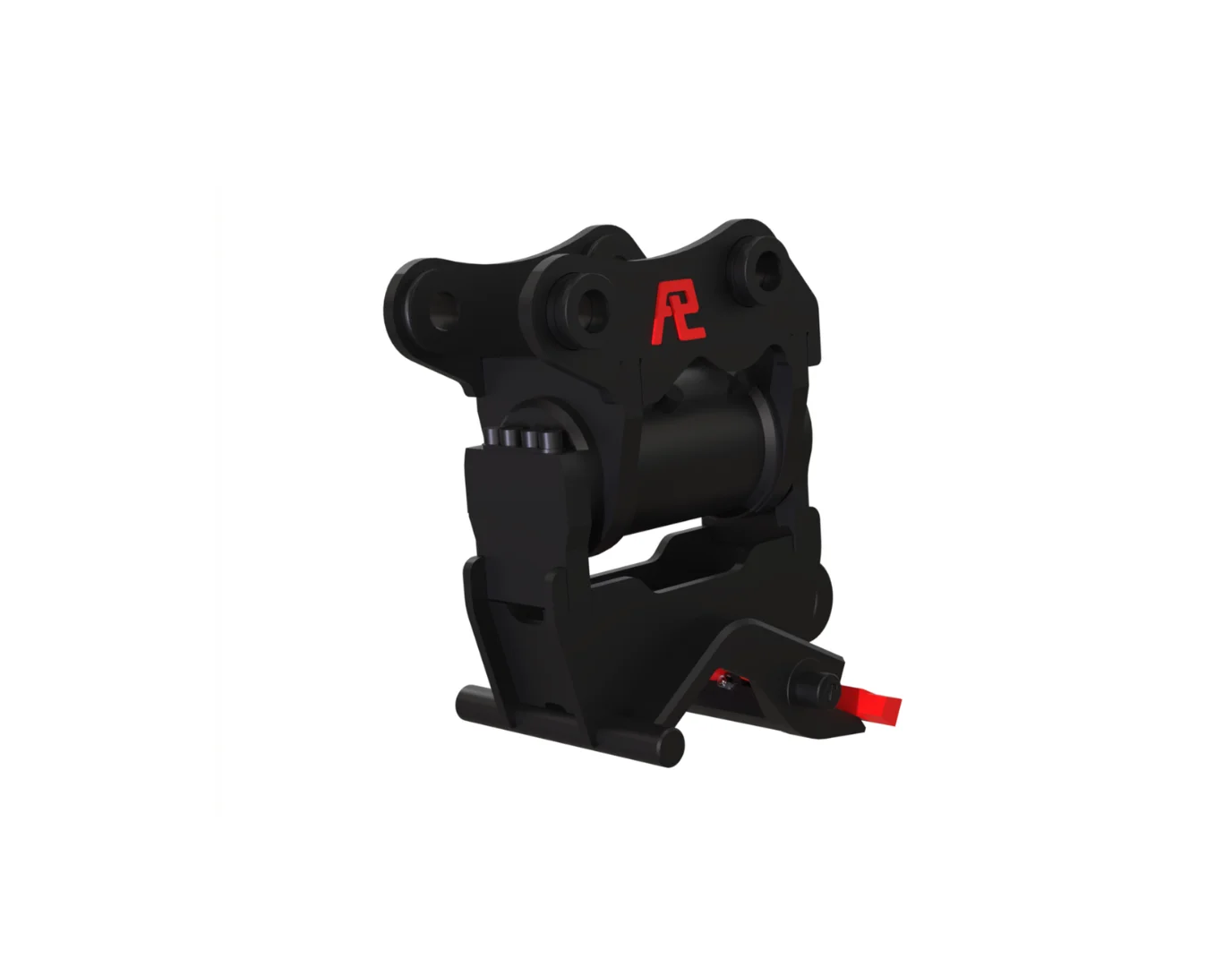

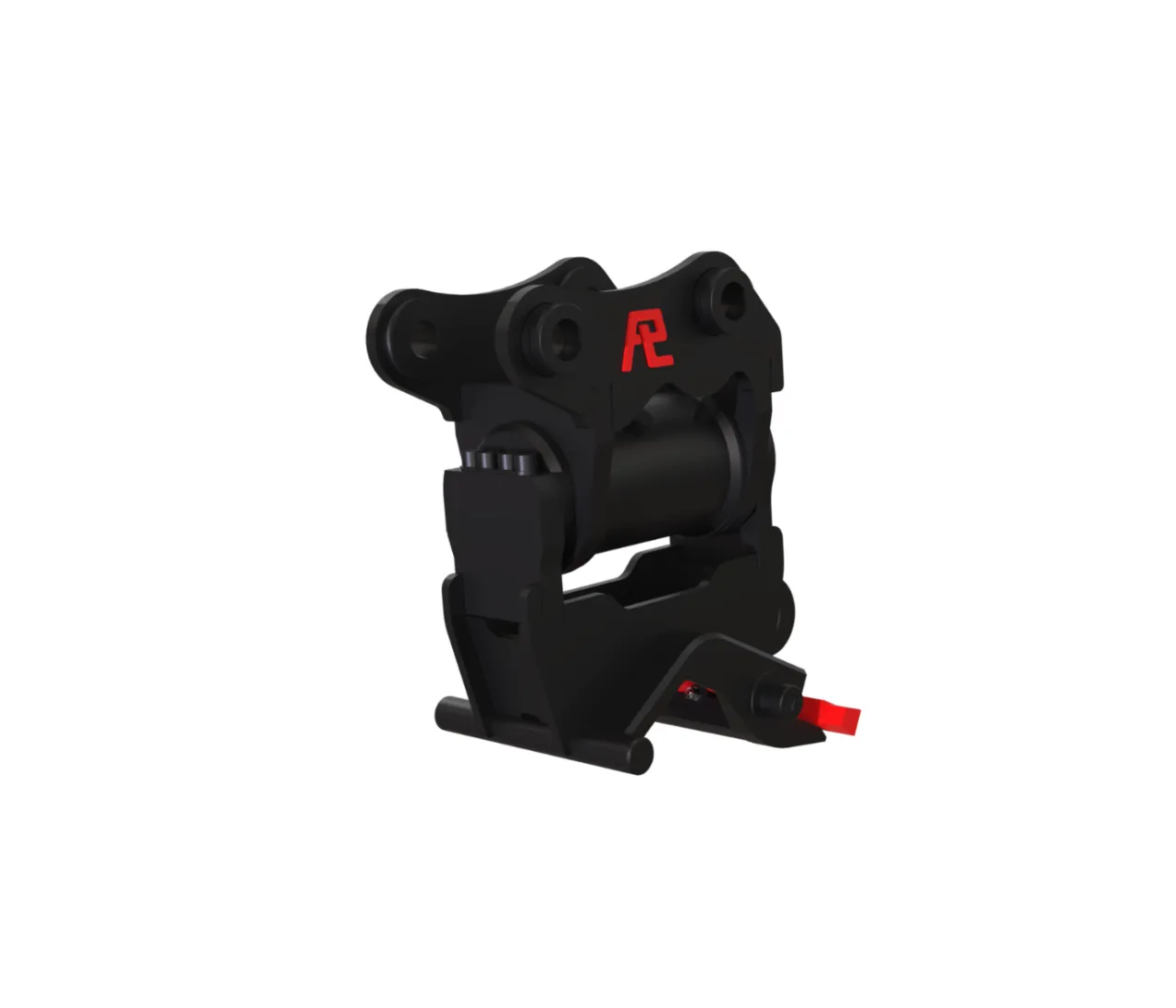

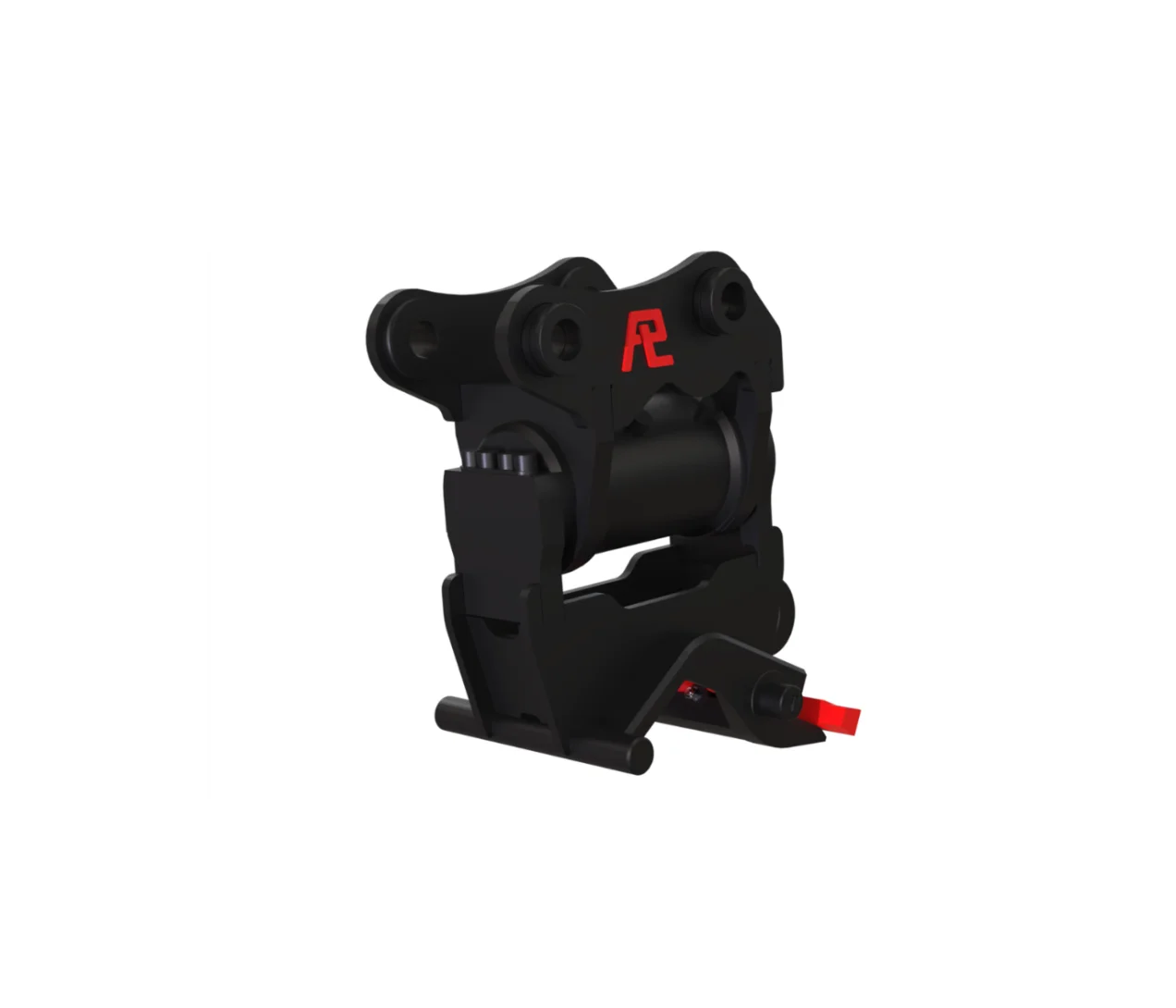

Pladdet motorized tilt coupler - PT4.5
The Pladdet PT4.5 tilting coupler is the ideal solution for operators who want maximum flexibility and precision from their mini excavator. Thanks to its compact design and worm gear drive, this tilt motor offers an exceptional tilt range of 2 x 90°, enabling work to be carried out faster, more efficiently, and with greater accuracy.
The PT4.5 is designed for machines up to approximately 1.8 tonnes and stands out for its low own weight, robust construction, and minimal maintenance requirements. Without exposed cylinders, the unit remains compact and optimally protected during daily operation.
TECHNICAL SPECIFICATIONS:
| Machine class: | 1-1,8T |
| Weight (from): | 25kg |
| Tilt angle: | 2x90° |
| Oil flow: | 4l/min |
| Operating pressure: | 210bar |
Configuration options:
- Fixed mounting / CW05 mechanical quick coupler
- Fixed mounting / CW05 hydraulic quick coupler
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
