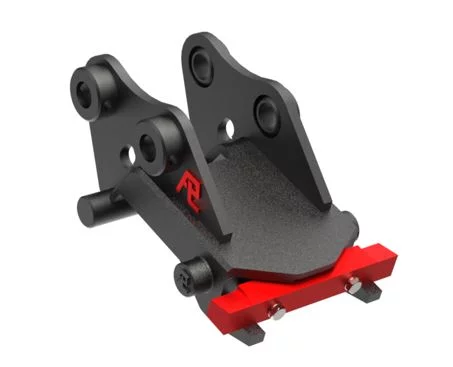

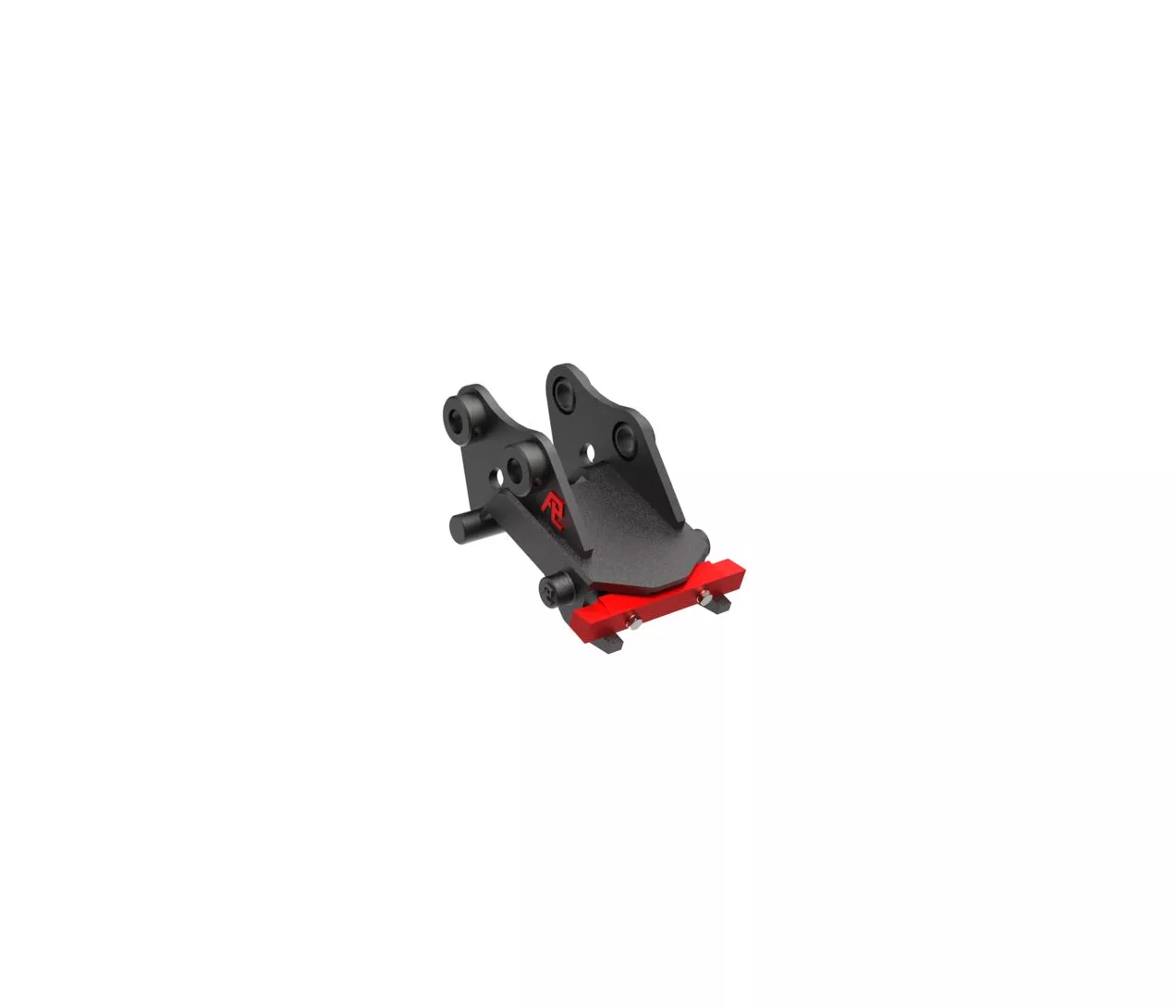

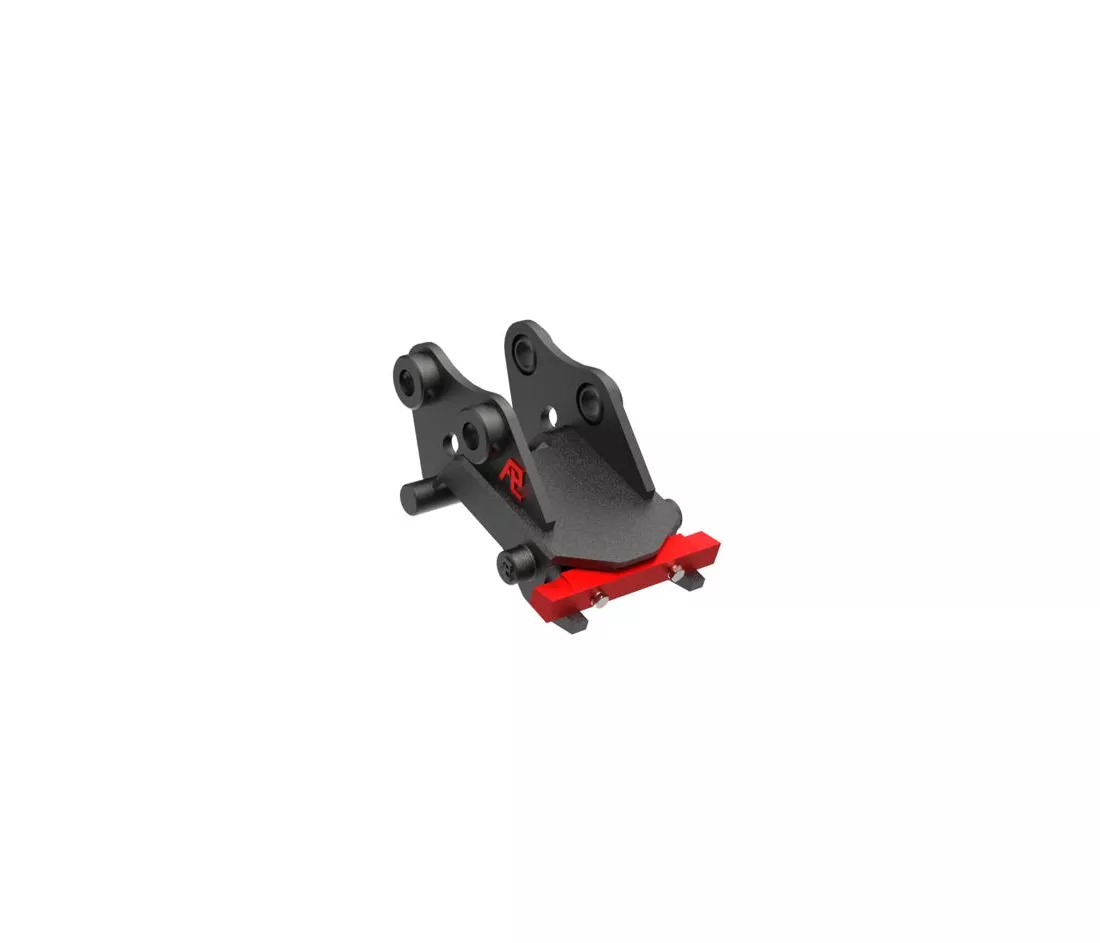

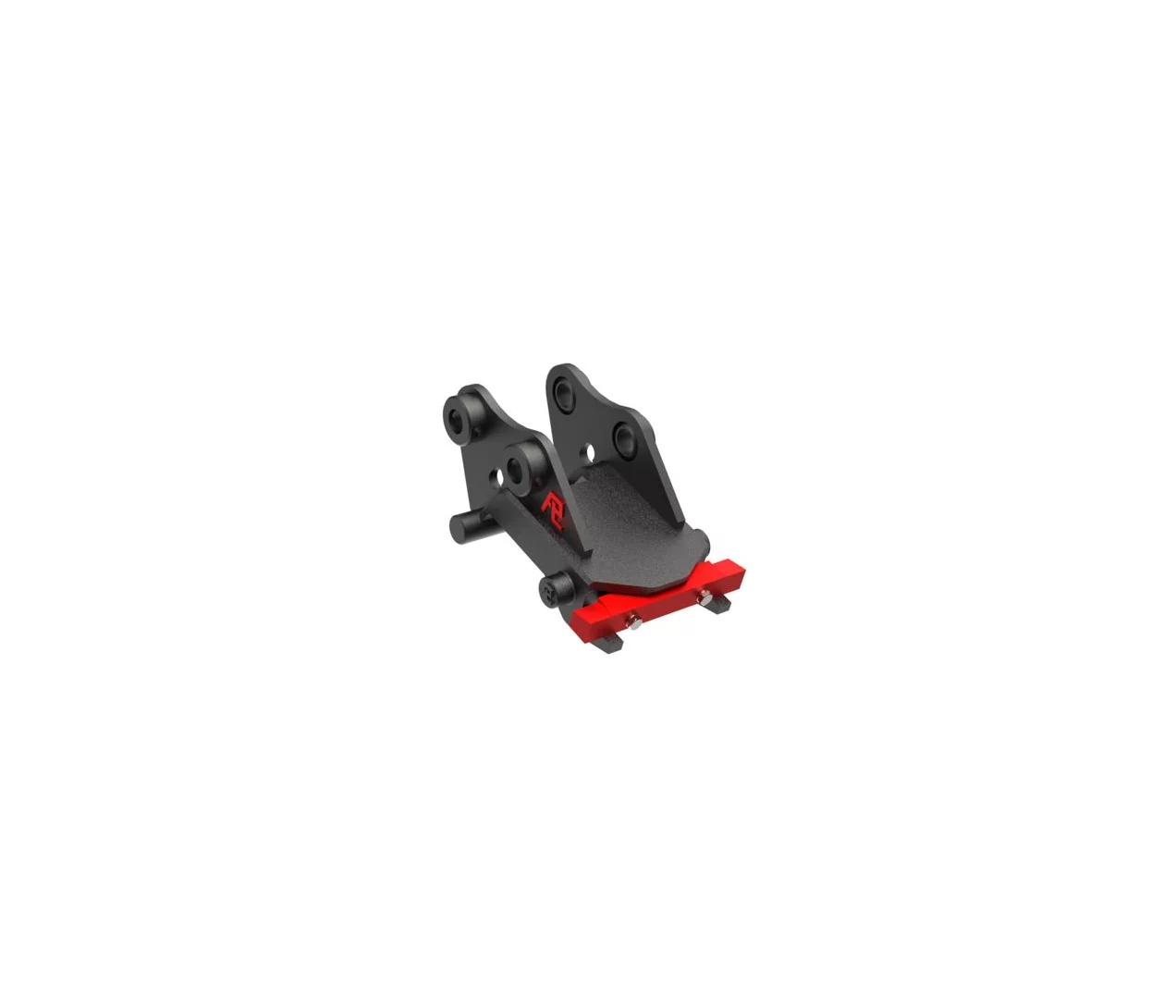

Hydraulic quick coupler - CW00
Excavators quick couplers - Hydraulic quick couplers - Verachtert / CW
The CW00 quick coupler is suitable for mini excavators from 0.5 to 1.2 tonnes.
On a hydraulic CW version, the locking pin is hydraulically operated by a cylinder. This hydraulic movement is powered by a dedicated quick coupler circuit that can be controlled directly from the cab. As a result, the operator no longer needs to leave the cab to change attachments.
Why choose a Verachtert quick coupler:
- Safety: The CW quick coupler is equipped with a dual safety system. The cylinder keeps the locking pin retracted, while the springs also keep the pin in the retracted position until the cylinder is activated.
- Price: Compared to other quick coupler variants, the CW quick coupler offers a more cost-effective solution.
TECHNICAL SPECIFICATIONS:
| Pin diameter (A): | Machine dependent |
| Coupling pins (B): | 30mm |
| Distance between pins (C): | 150mm |
| Width (D): | 150mm |
| Weight (from): | 9kg |
| Lifting hook*: | 1T |
*Option
Options / Extra's:
- Lifting hook 1T
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
