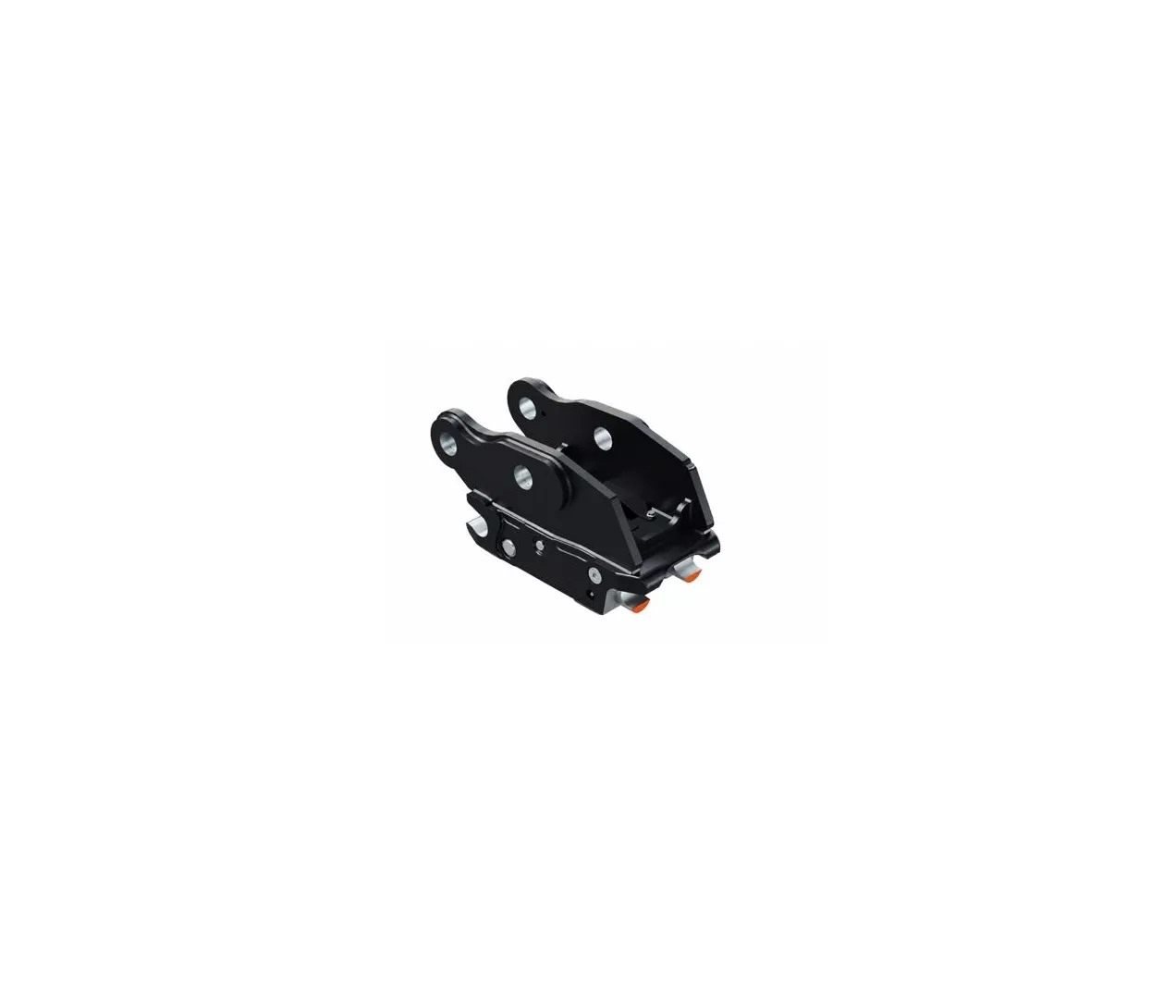

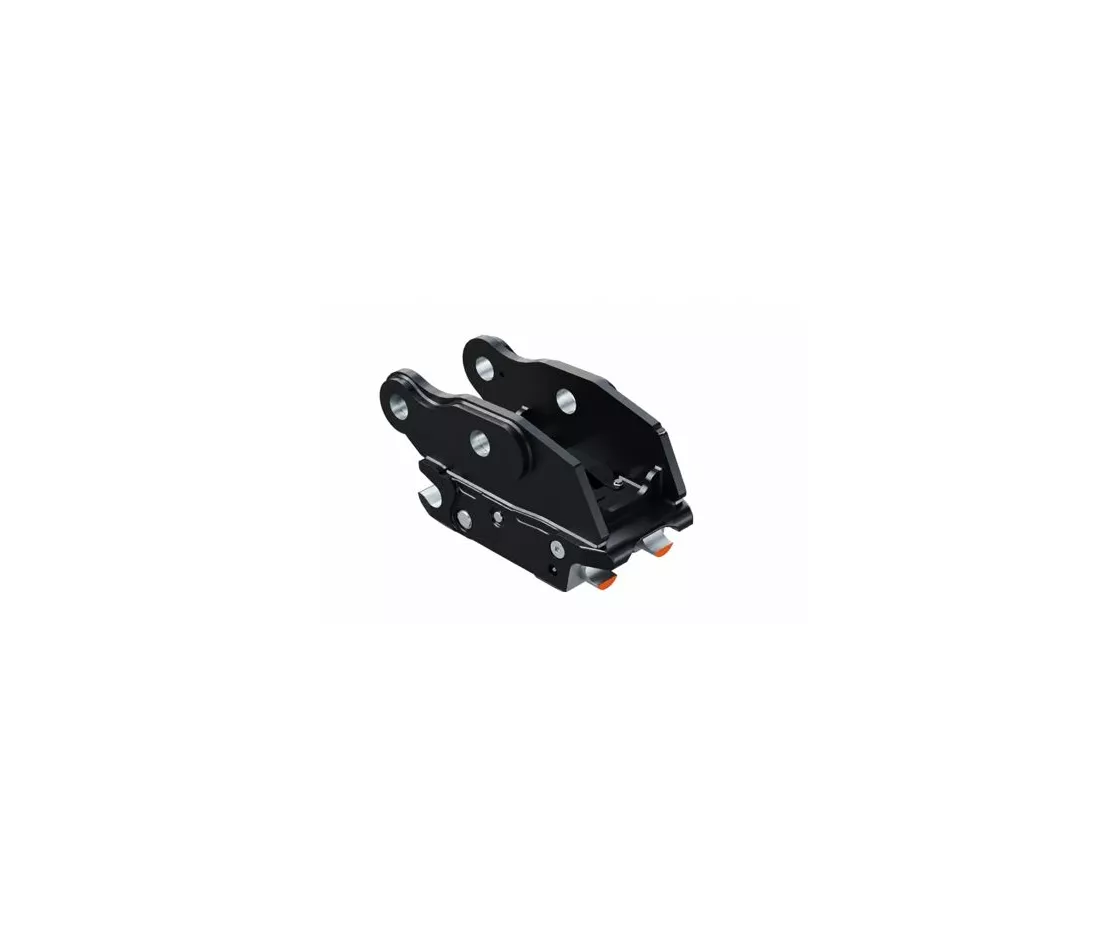

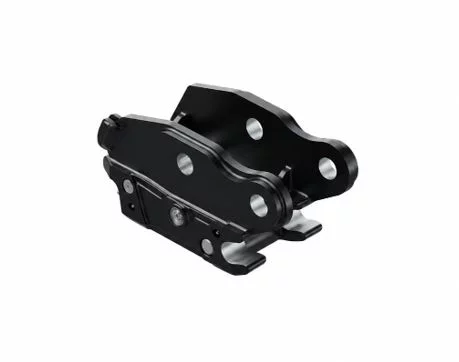

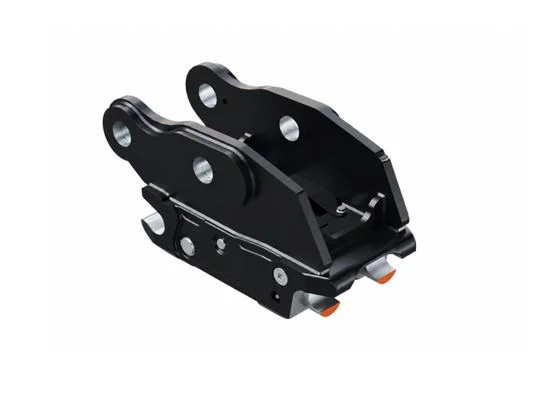

Hydraulic quick coupler - S30-180
Excavators quick couplers - Hydraulic quick coupler - S-system
The Kinshofer S30-180 quick coupler is suitable for mini excavators from 0.5 to 2T.
The S-system uses a standardized connection where the attachment is securely locked into the quick coupler via two shafts. The hydraulic operation ensures a fast and reliable coupling with maximum safety during operation.
Why choose an S-system quick coupler: Safety:
- Saftey: The quick couplers are equipped with an additional safety system that provides extra control over the closure.
- Wear: An S quick coupler has little to no play over its lifespan.
- Compact: The S quick coupler has one of the lowest mounting heights on the market.
- Recognition: S quick couplers are used all over the world, which is not the case with CW and Morin.
TECHNICAL SPECIFICATIONS:
| Pin diameter (A): | Machine dependent |
| Coupling pins diameters (B): | 30mm |
| Distance between axes (C): | 230mm |
| Width (D): | 178mm |
| Weight: | 15kg |
| Lifting hook*: | 1T |
*Option
Options / Extra's:
- Lifting hook 1T
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
