Hydraulic quick coupler - S40
Excavators quick couplers - Hydraulic quick coupler - S-system

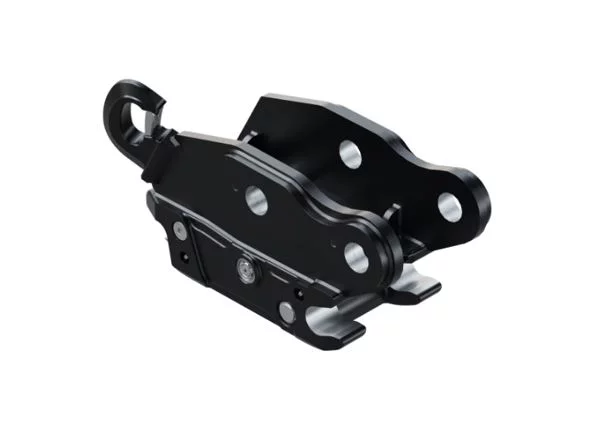

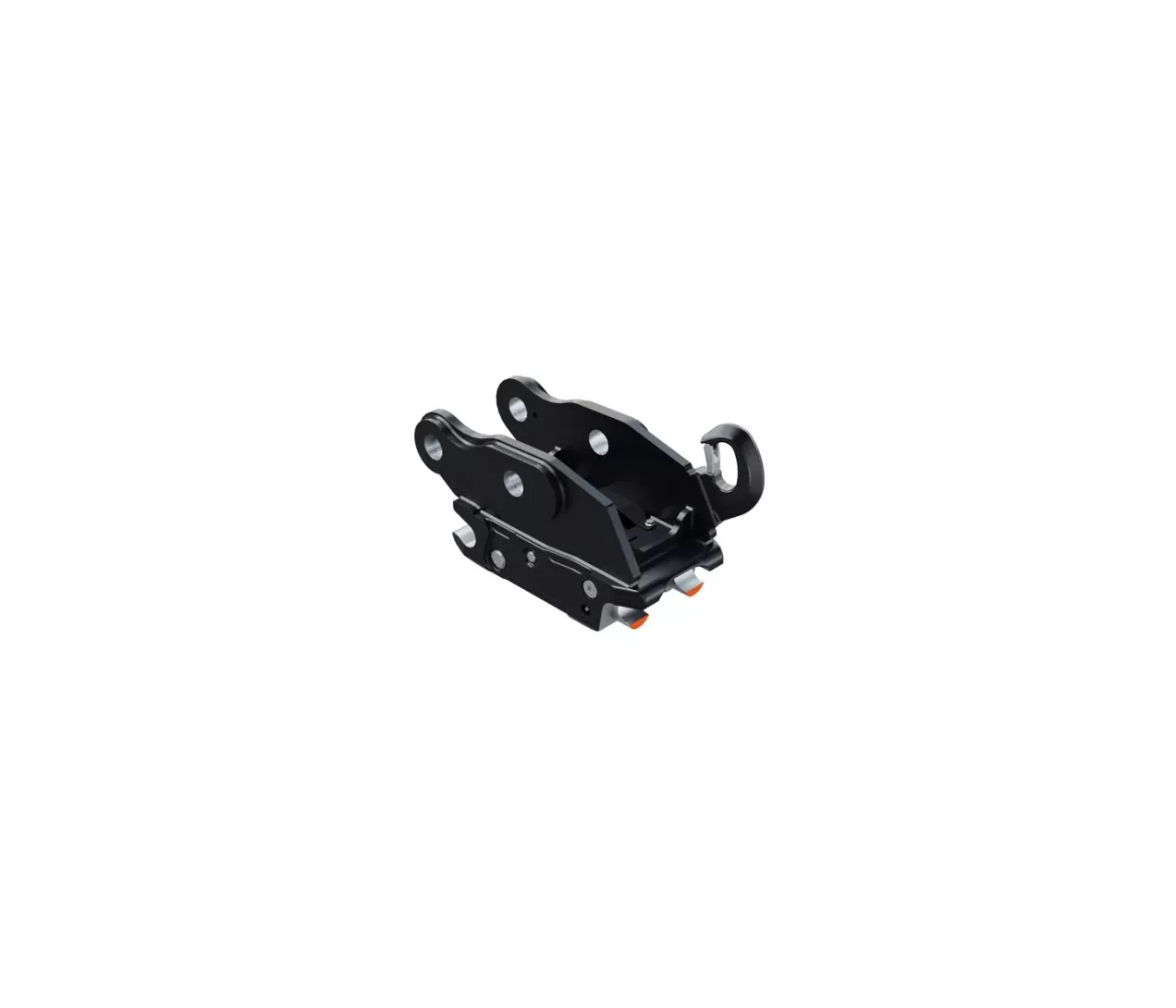

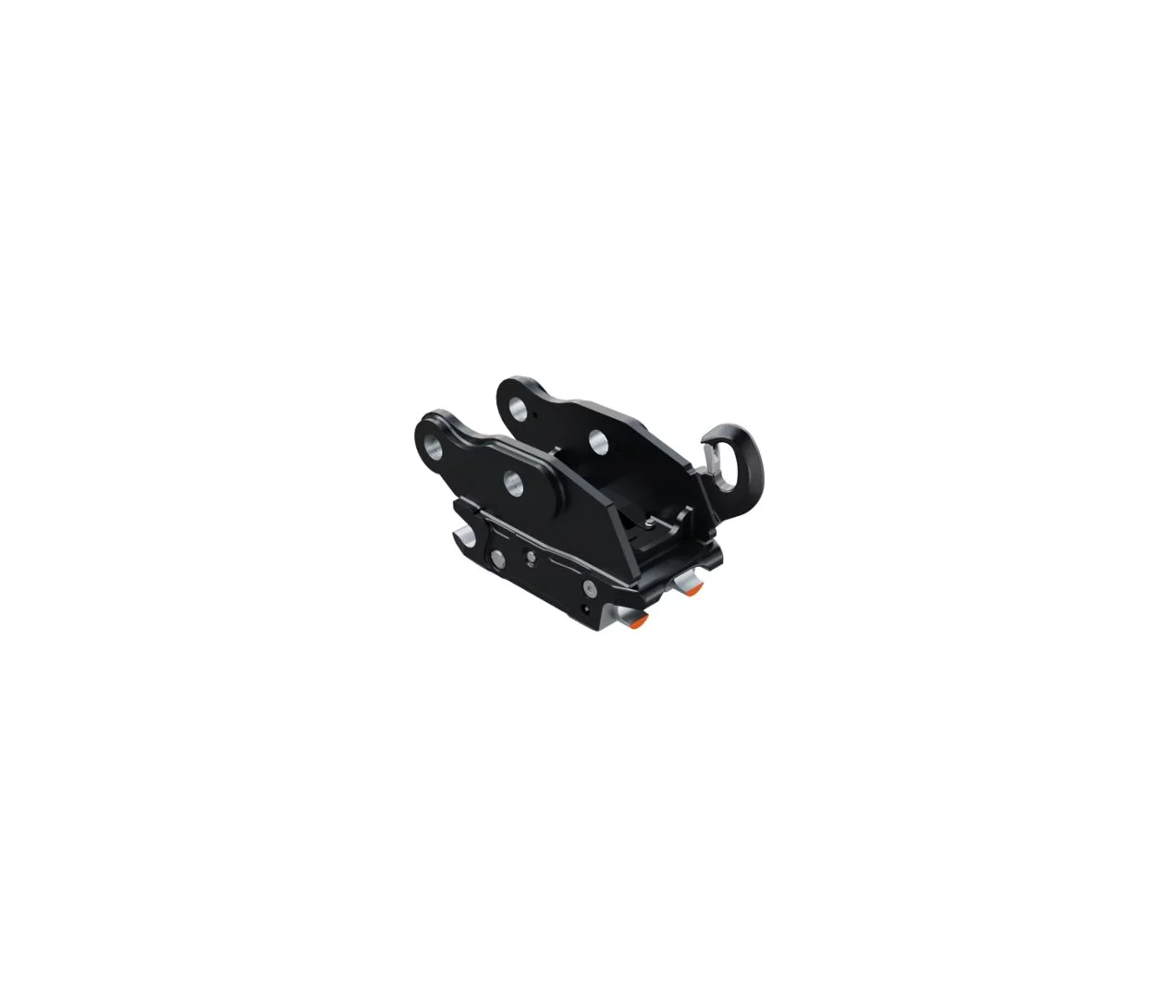

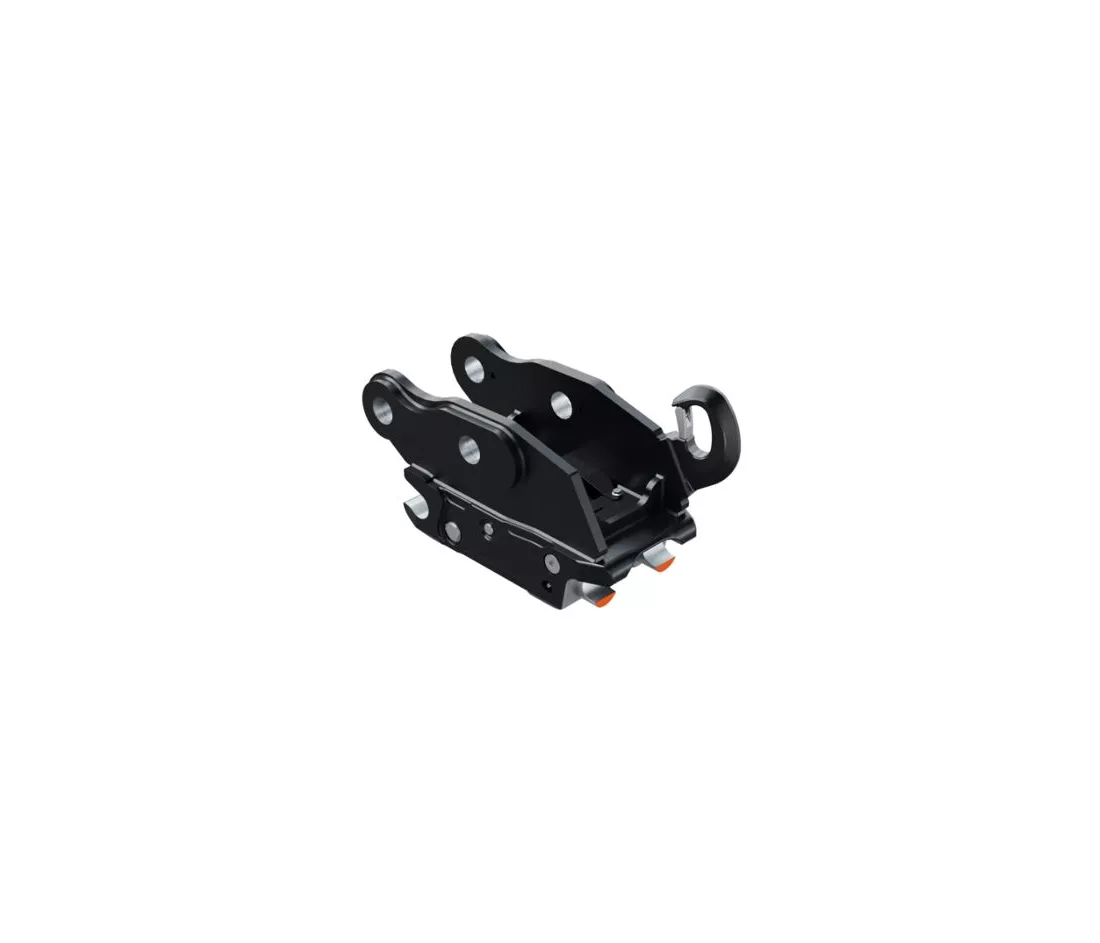

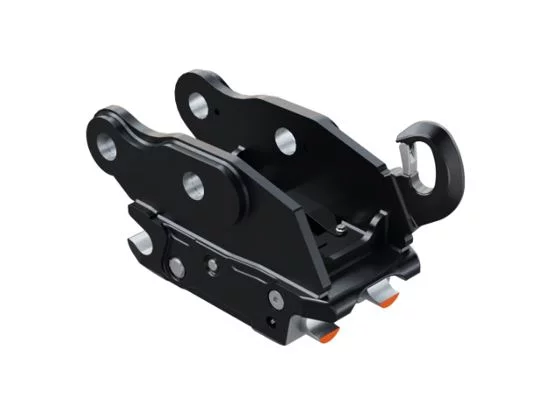

The Kinshofer S40 quick coupler is suitable for mini excavators from 2 to 6T.
The S-system uses a standardized connection where the attachment is securely locked into the quick coupler via two shafts. The hydraulic operation ensures a fast and reliable coupling with maximum safety during operation.
Why choose an S-system quick coupler:
- Saftey: The quick couplers are equipped with an additional safety system that provides extra control over the closure.
- Wear: An S quick coupler has little to no play over its lifespan.
- Compact: The S quick coupler has one of the lowest mounting heights on the market.
- Recognition: S quick couplers are used all over the world, which is not the case with CW and Morin.
TECHNICAL SPECIFICATIONS:
| Pin diameter (A): | Machine dependent |
| Coupling pins diameters (B): | 40mm |
| Distance between axes (C): | 300mm |
| Width (D): | 198mm |
| Weight: | 50kg |
| Lifting hook*: | 3T |
*Optional up to 3T, standard from 4T onwards
Options / Extra's:
- Lifting hook 3T
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
