Full-hydraulic quick coupler - OQ120
Excavators quick couplers - Full hydraulic quick coupler - S-system

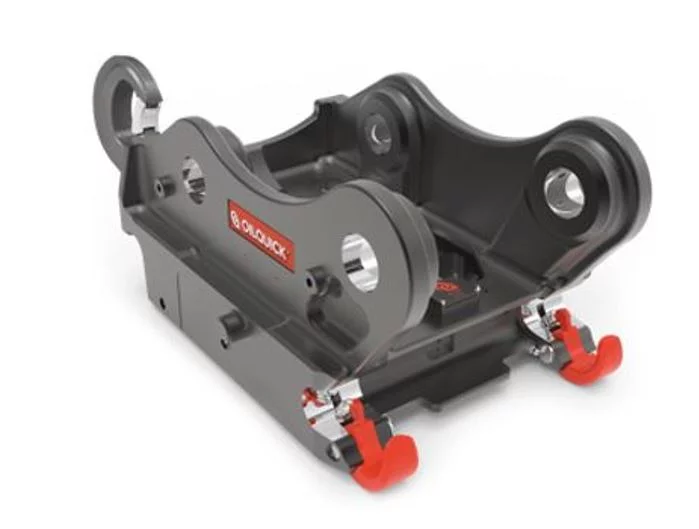

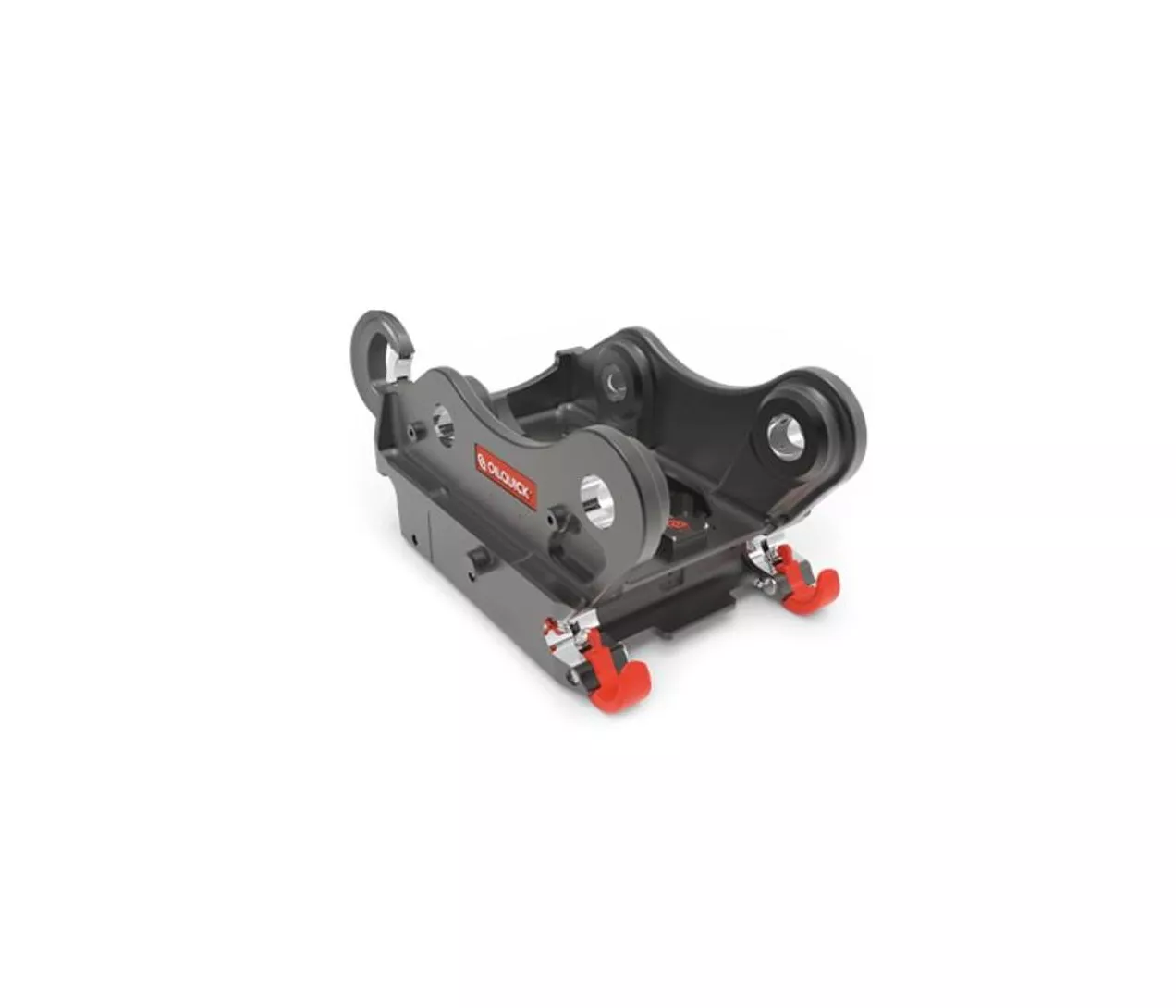

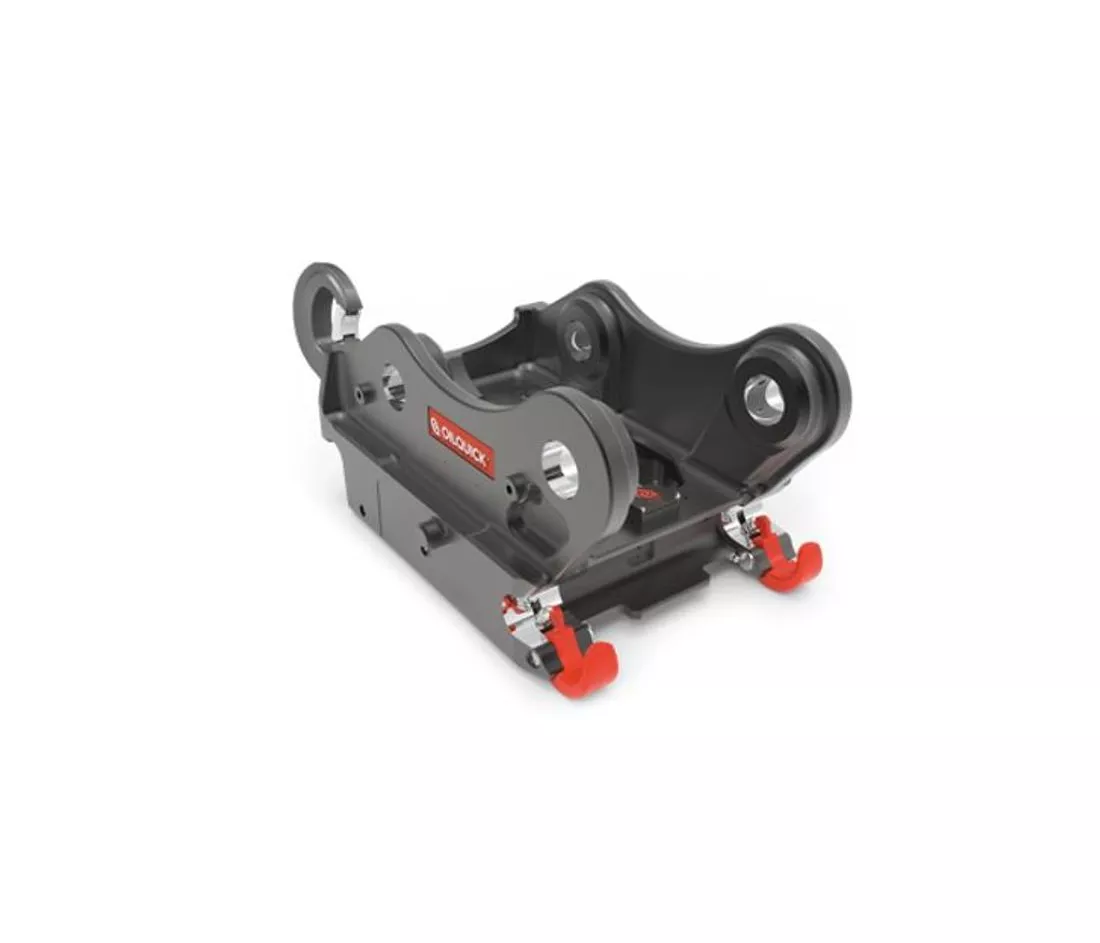

The OilQuick OQ120 fully hydraulic quick coupler is suitable for excavators from 70 to 120 tonnes.
This type of quick coupler allows you to automatically connect and disconnect hydraulic attachments within seconds, without leaving the cab to connect hydraulic hoses. All functions are controlled via an in-cab display.
If you frequently change attachments, this solution can increase productivity by up to 30%.
The quick coupler is equipped with several safety features:
- "Drop Guard" safety hooks provide additional protection if the locking mechanism is not fully engaged
- Display indicator showing whether the attachment is correctly locked
- Continuous hydraulic monitoring of the locking pressure
TECHNICAL SPECIFICATIONS:
| Machine class: | 70-120T |
| Weight (from): | On demand |
| Width: | 870mm |
| Distance between axes: | 925mm |
| 8 hydraulic coupler connections: | 2x 1-1/2" 3x 1/2" 3x 1" |
| Lifting hook: | 26T |
| Operating pressure: | 350bar |
| Flow capacity: | 700l/min (1-1/2") 70l/min (1/2") 250l/min (1") |
| Kit for pressureless connection/disconnection: | Standard |
Options / Extra's:
- Electrical connector (V90)
- Grease coupling (instead of one 1/2")
Working full-hydraulic quick coupler:
