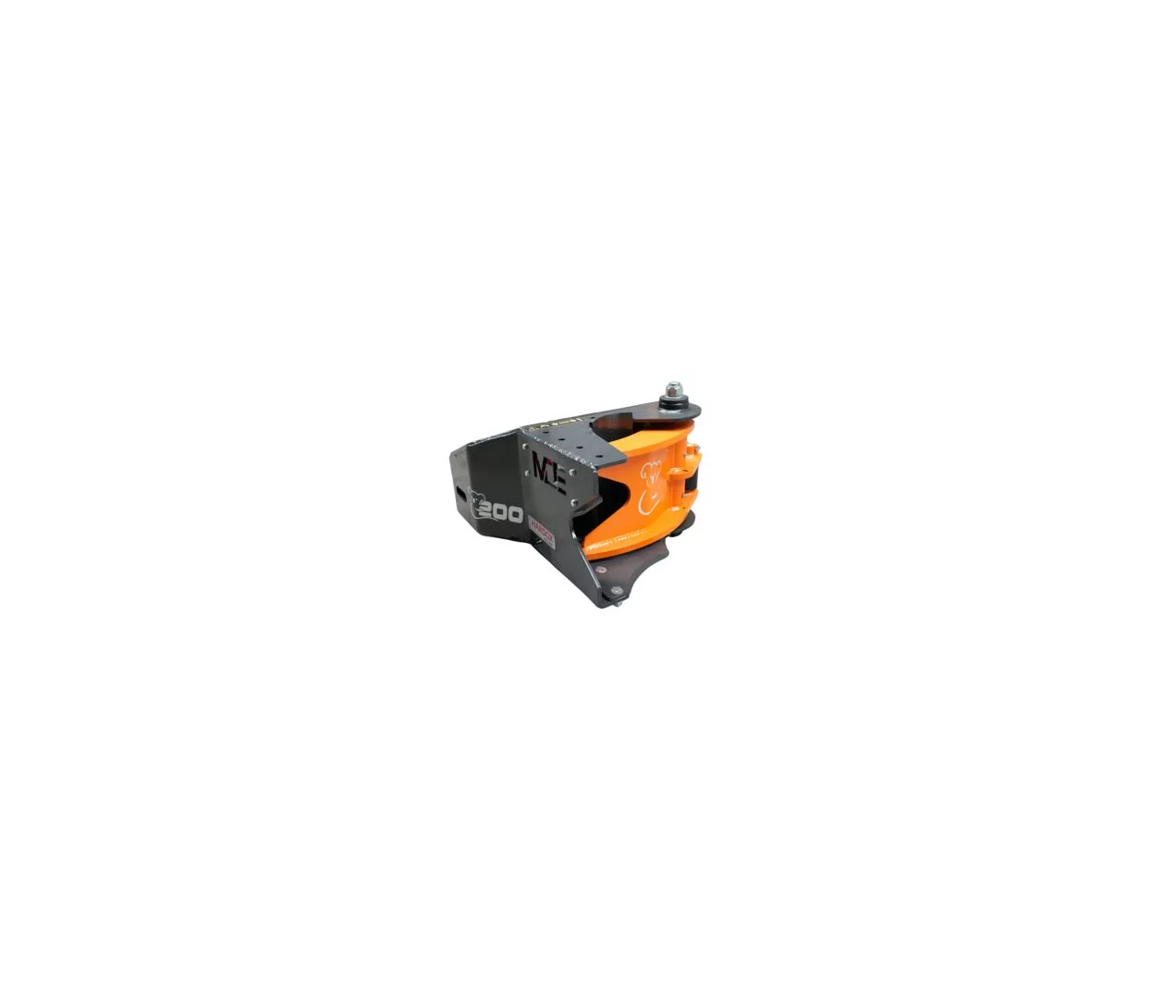

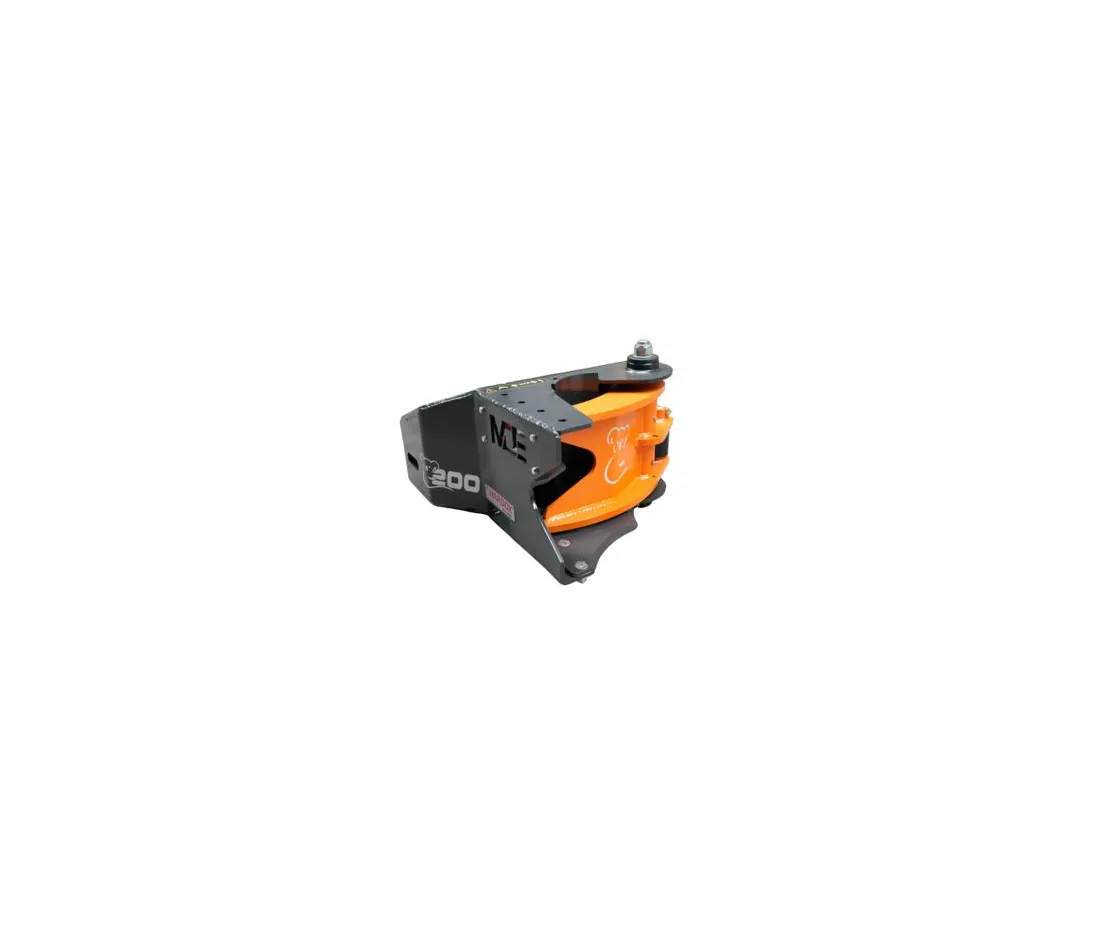

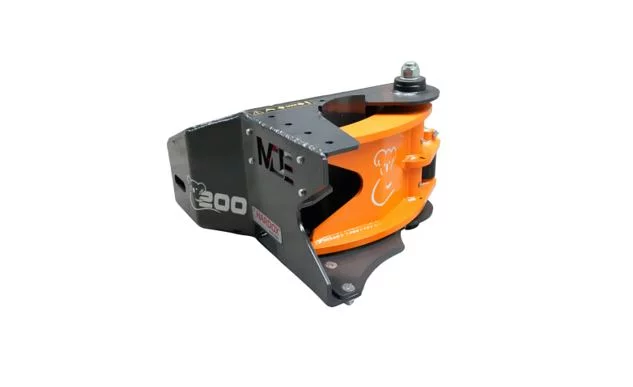

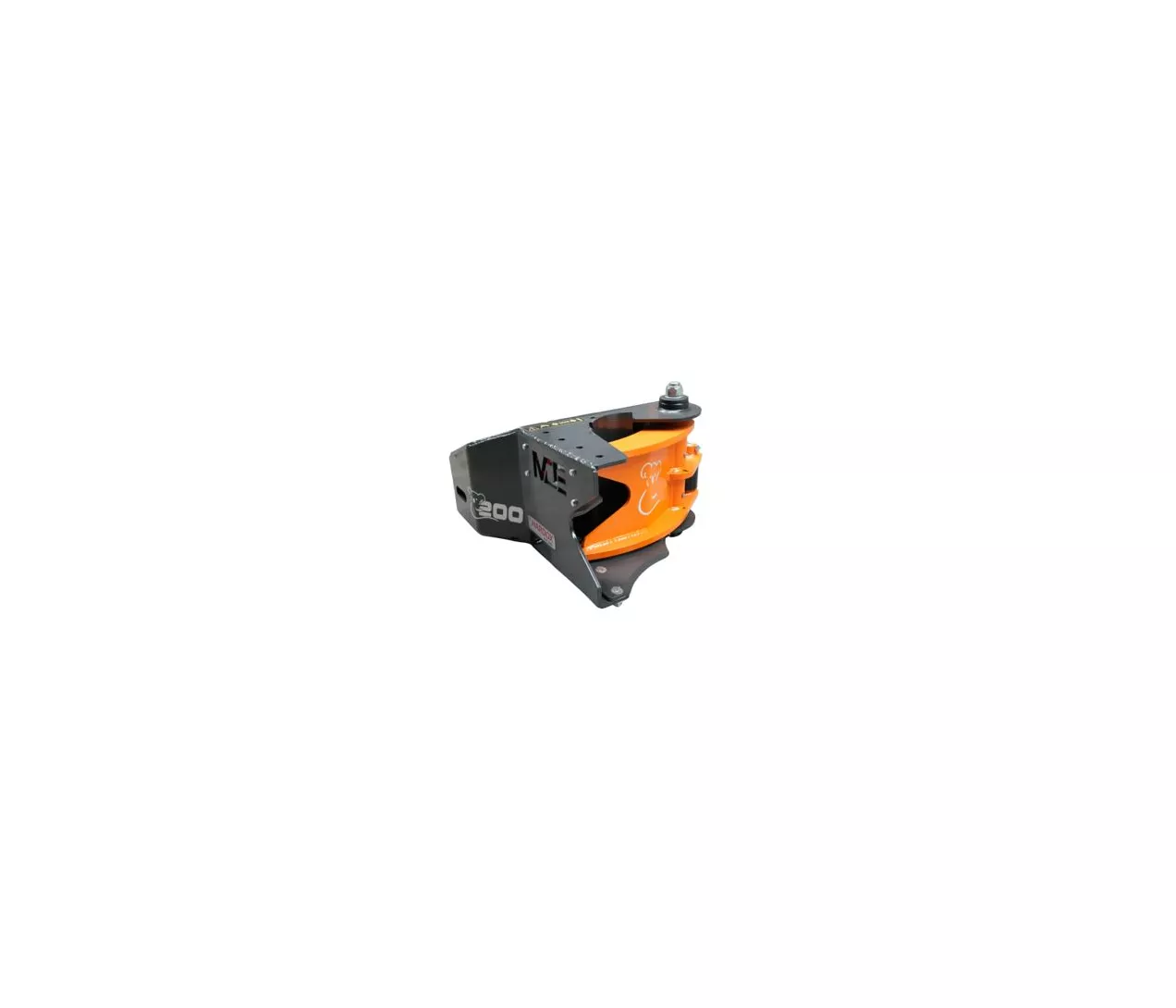

MDE Tree shear - K200
The MDE K200 tree shear is a highly powerful tree shear developed for mini excavators from 3 to 10 tonnes. It delivers outstanding performance, durability, and control for pruning, felling, and site clearing applications.
Thanks to its robust Hardox construction and smart hydraulic design, the K200 combines durability, safety, and maximum productivity on site. The replaceable cutting blades also help minimize downtime and reduce maintenance costs.
As an option, the K200 can be equipped with a tilt unit for increased working reach and improved positioning, as well as a collecting grab that allows smaller trees to be cut and held, eliminating the need to place them down after each cut.
TECHNICAL SPECIFICATIONS:
| Machine class: | 3-10T |
| Weight (from): | 202kg |
| Maximum cutting diameter: | 200mm |
| Dimensions (LxWxH): | 800x660x520mm |
| Oil flow: | 40-70l/min |
| Operating pressure: | 250bar |
Options / Extra's:
- 2x55° Tilt Function
- Smart Grip Collector (collecting clamp)
Downloads
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
