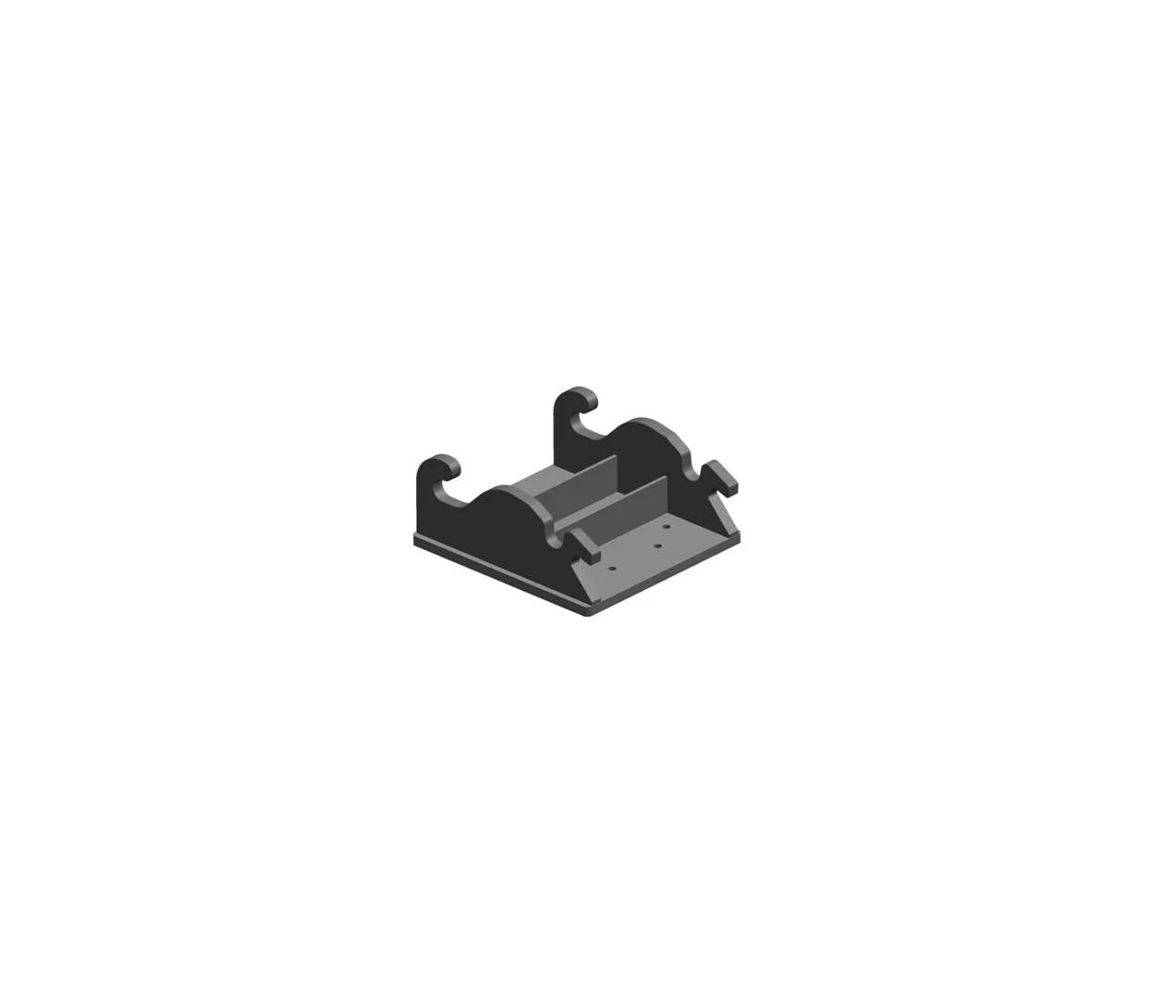

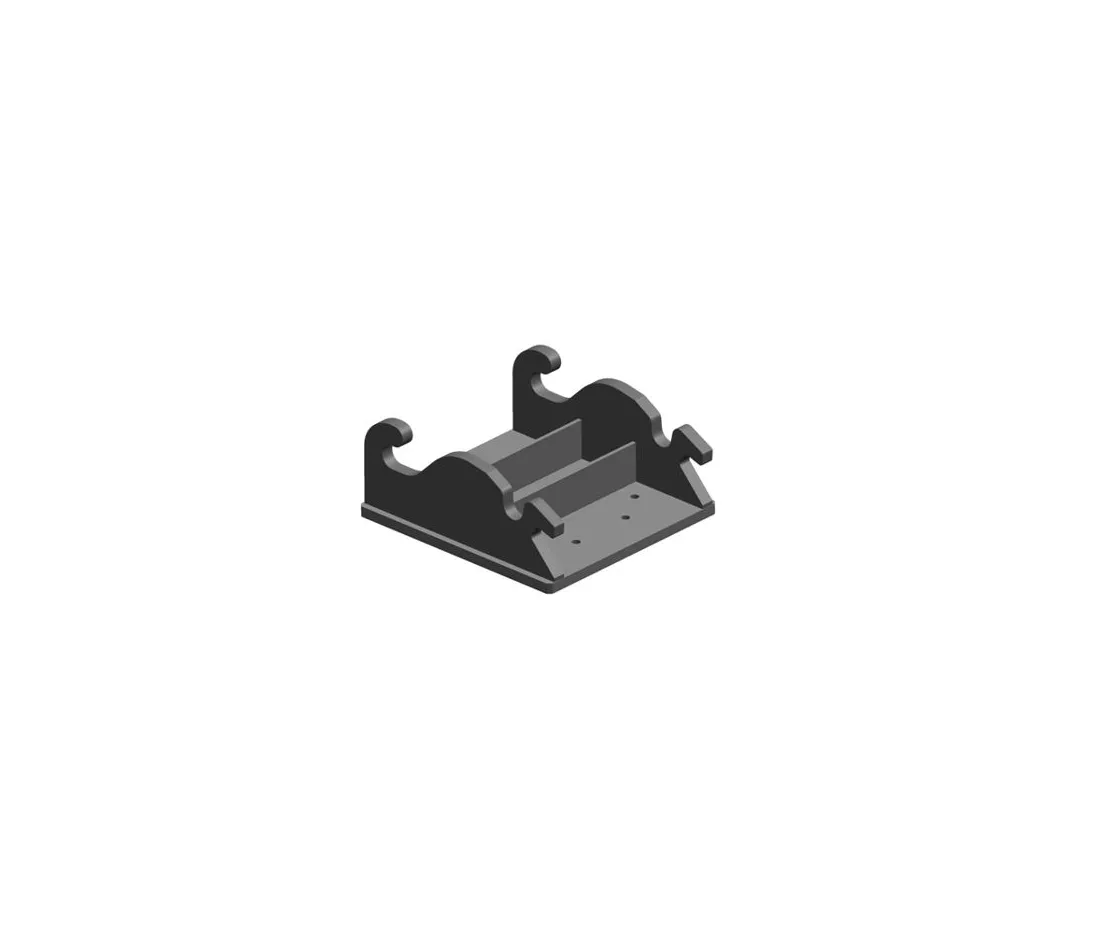

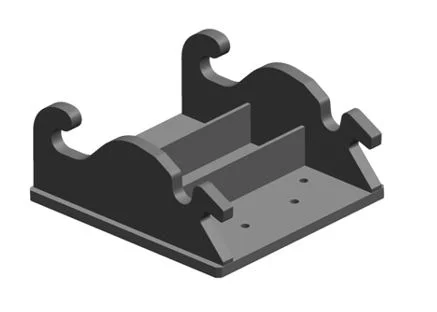

Adapter plate for CW55
Other attachments - Adapter plates (8-120T)
We manufacture bolt-on adapter plates with a Verachtert CW55 coupling for all attachments within our product range, suitable for machines from 35 to 60 tonnes.
In addition, we offer tailor-made solutions and can develop an adapter plate that is perfectly matched to your specific tool or application.
This coupling interface is available in 4 models:
CW55 / CW55small Standard:
In Belgium, the CW55small is the standard and most common version of both models.
| CW55 | CW55s (small) | |
| Material: | HARDOX 450 | HARDOX 450 |
| Centre-to-centre distance (A): | 650mm | 650mm |
| Thickness (B): | 60mm | 60mm |
| Distance between the 2 adapter hooks (C): | 845mm | 575mm |
- CW55 / CW55small reversible (TWIN):
This version allows attachments to be mounted in reverse on your quick coupler.
| CW55 | CW55s (Small) | |
| Material: | HARDOX 450 | HARDOX 450 |
| Centre-to-centre distance (A): | 650mm | 650mm |
| Thickness (B): | 60mm | 60mm |
| Distance between the 2 adapter hooks (C): | 845mm | 575mm |
| Centre-to-centre distance (D): | 650mm | 650mm |
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
