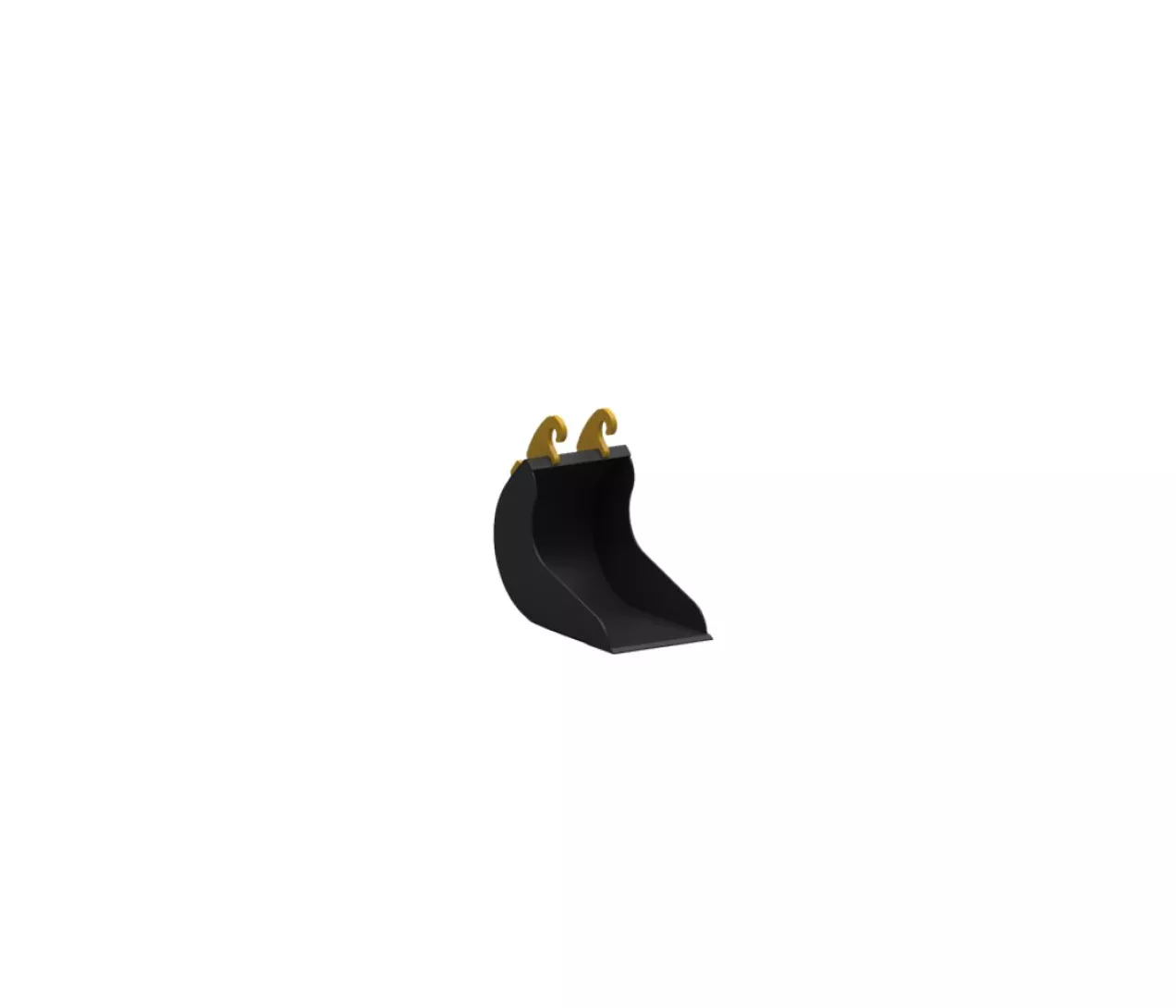

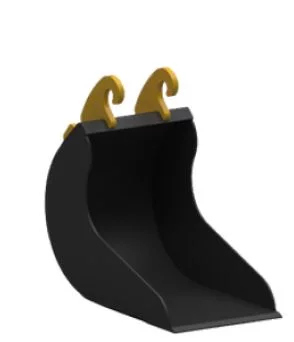

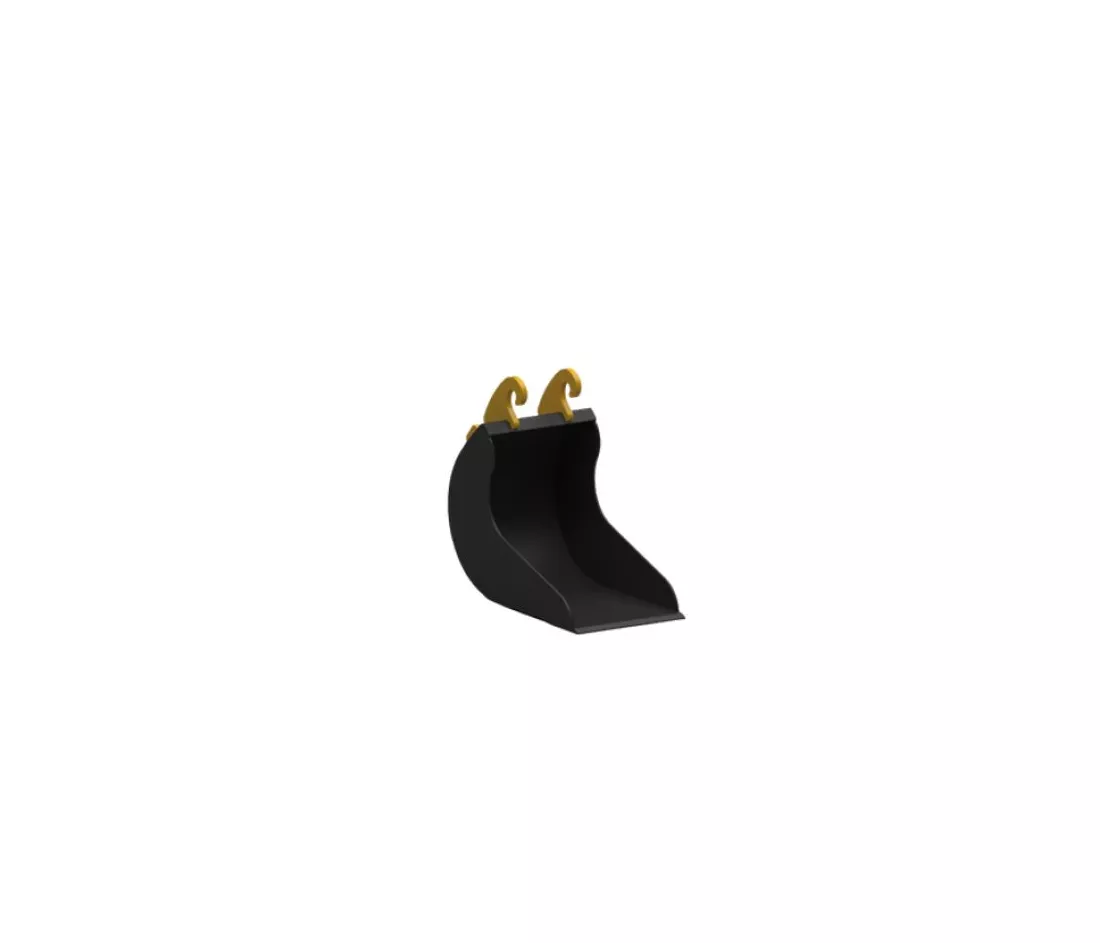

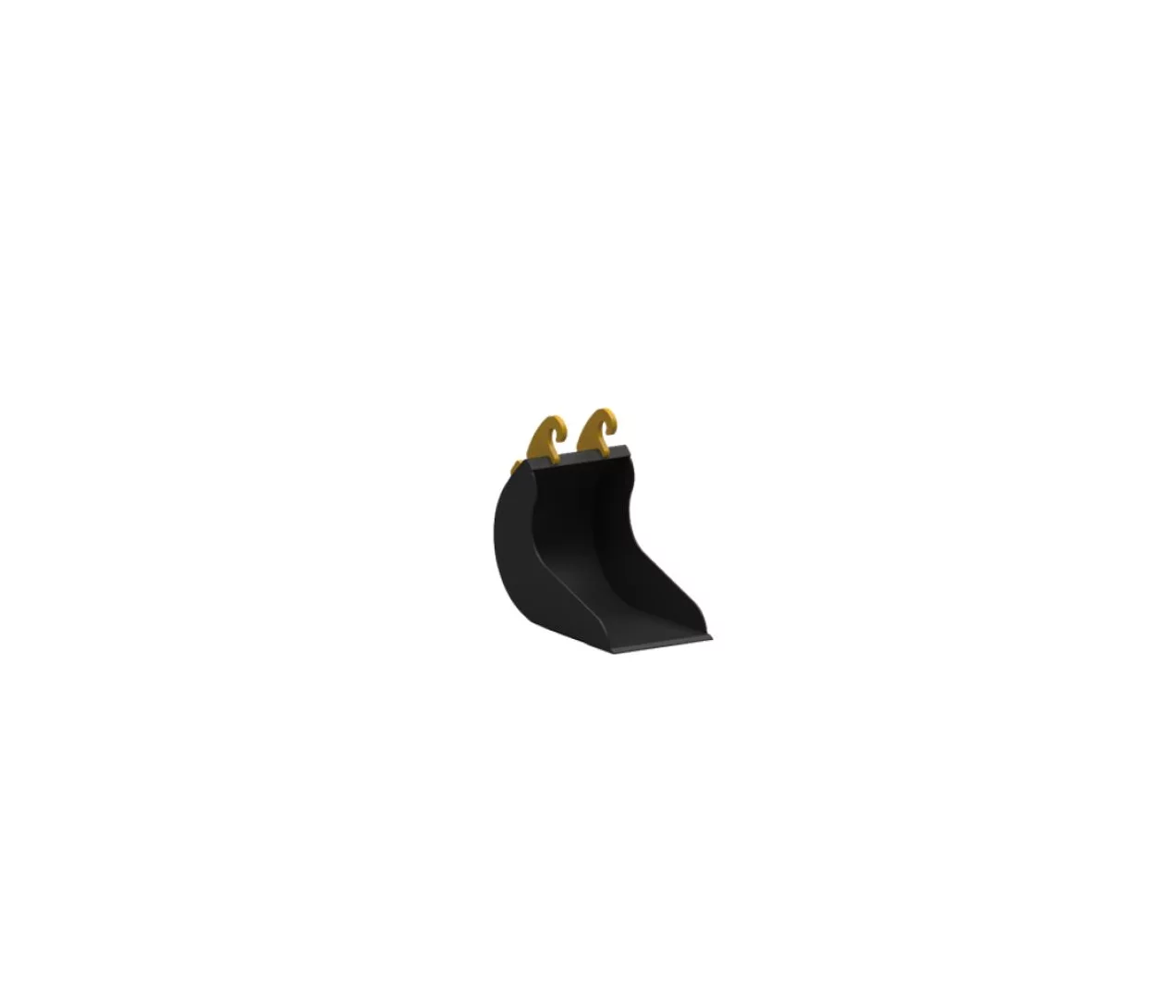

Luyckx trench bucket - LXSB0
Excavator buckets - trench bucket
Luyckx manufactures its own trenching buckets for excavators. Thanks to their robust construction, high-quality steel grades, and wear-resistant finish, our buckets are known for their long service life and high productivity.
If required, Luyckx also produces custom-made trenching buckets, fully tailored to your machine and application.
The specifications below apply to the standard version of trenching buckets in the 0 to 1 tonne class.
TECHNICAL SPECIFICATIONS:
| Type trenching bucket | LXSB0 |
| Reference of bucket type 0: | TT0022000 |
| Standard bucket width: | 200mm |
| Bucket opening (A): | 413mm |
| Depth (B): | 476mm |
| Height (C): | 363mm |
| Weight (from): | 19kg |
| Capacity: | 25L |
Suspension options for ditch cleaning buckets 0-1T:
- Verachtert CW00
- Verachtert CW05
- Retromatic Module 0
- S30-180 System
Options / Extra's:
- Verachtert CW suspension can be equipped with a reversible version (TWIN)
- Welded cutting edge
- Bolt-on reversible cutting edge
- Teeth
Downloads
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
