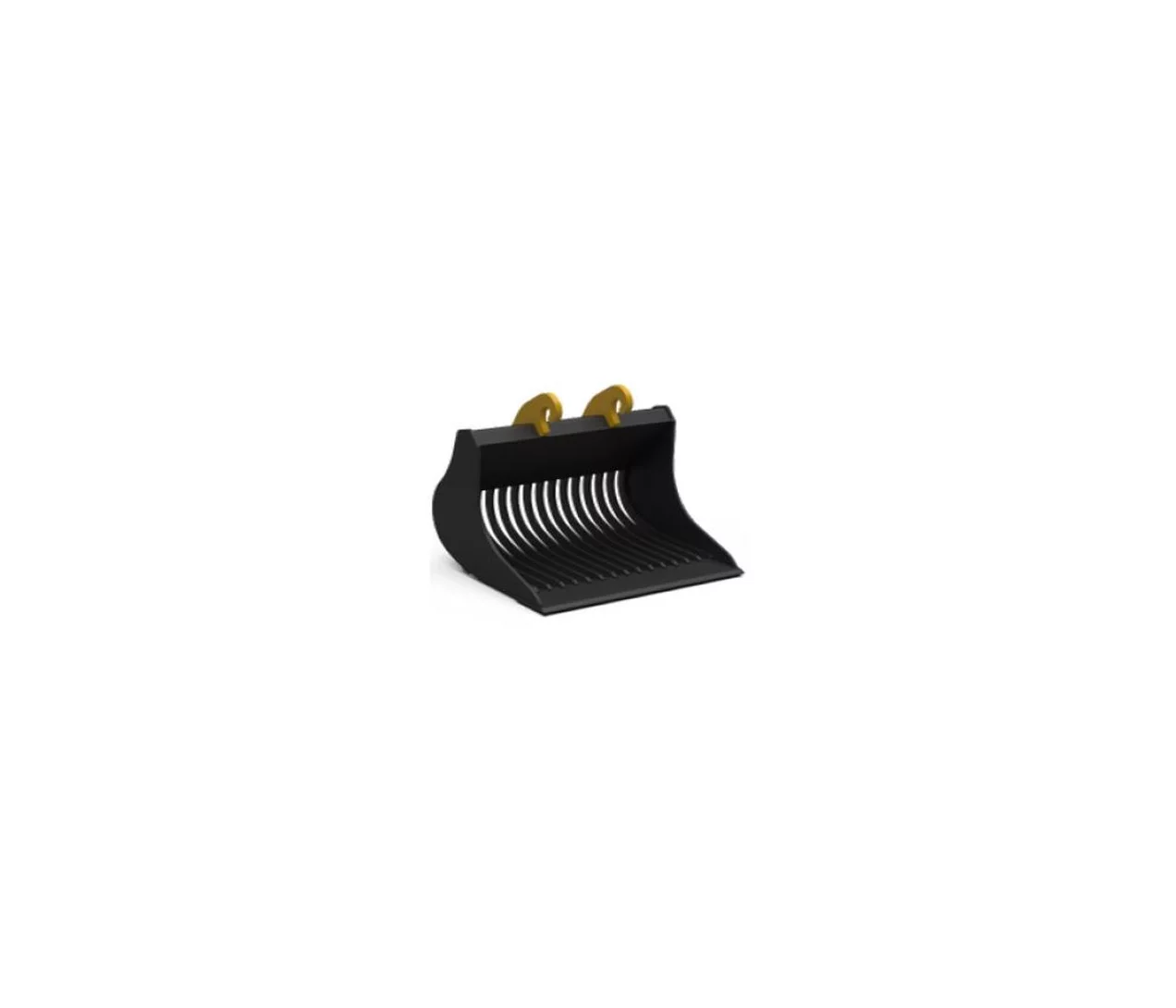

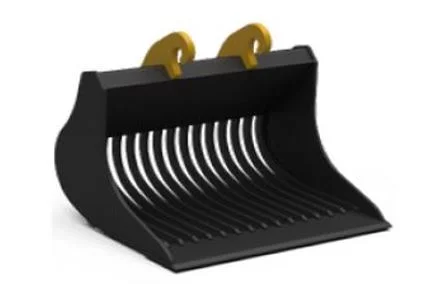

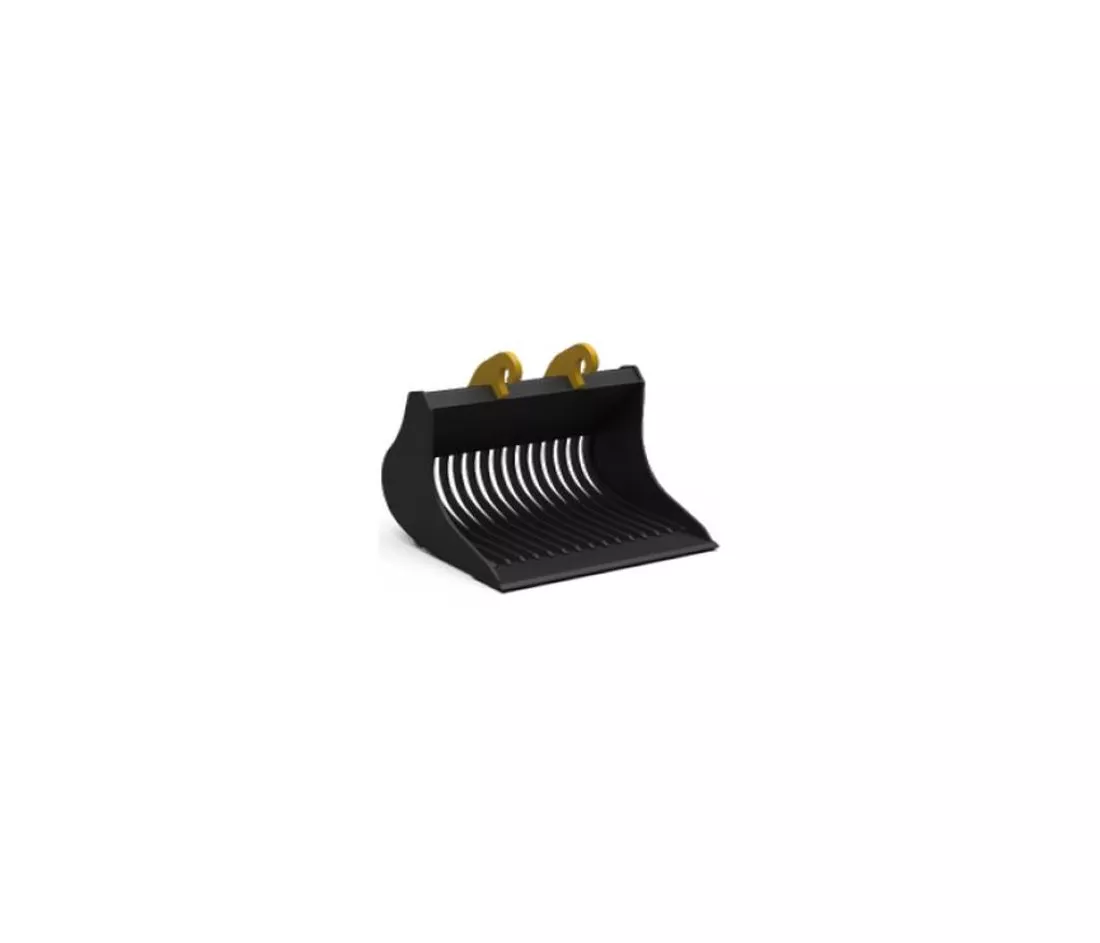

Luyckx Skeleton bucket - LXPB7
Excavator buckets - skeleton bucket
Luyckx manufactures its own skeleton buckets for excavators. Thanks to their robust construction, high-quality steel grades, and wear-resistant finish, our buckets are known for their long service life and high productivity.
Luyckx also offers custom-made skeleton buckets, fully tailored to your machine and specific application.
The specifications below apply to the standard version of skeleton buckets for machines in the 10 to 15 tonne class.
TECHNICAL SPECIFICATIONS:
| Type skeleton bucket: | LXPB7 |
| Reference of bucket type 7: | TT0090007 |
| Standard bucket width: | 1200mm |
| Bucket opening (A): | 960mm |
| Depth (B): | 1055mm |
| Height (C): | 869mm |
| Weight (from): | 481kg |
| Capacity: | 698L |
Suspension options for skeleton buckets 10-15T:
- Verachtert CW30
- S60 System
Options / Extra's:
- Verachtert CW suspension can be equipped with a reversible version (TWIN)
- Welded cutting edge
- Bolt-on reversible cutting edge
- Teeth
Downloads
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
