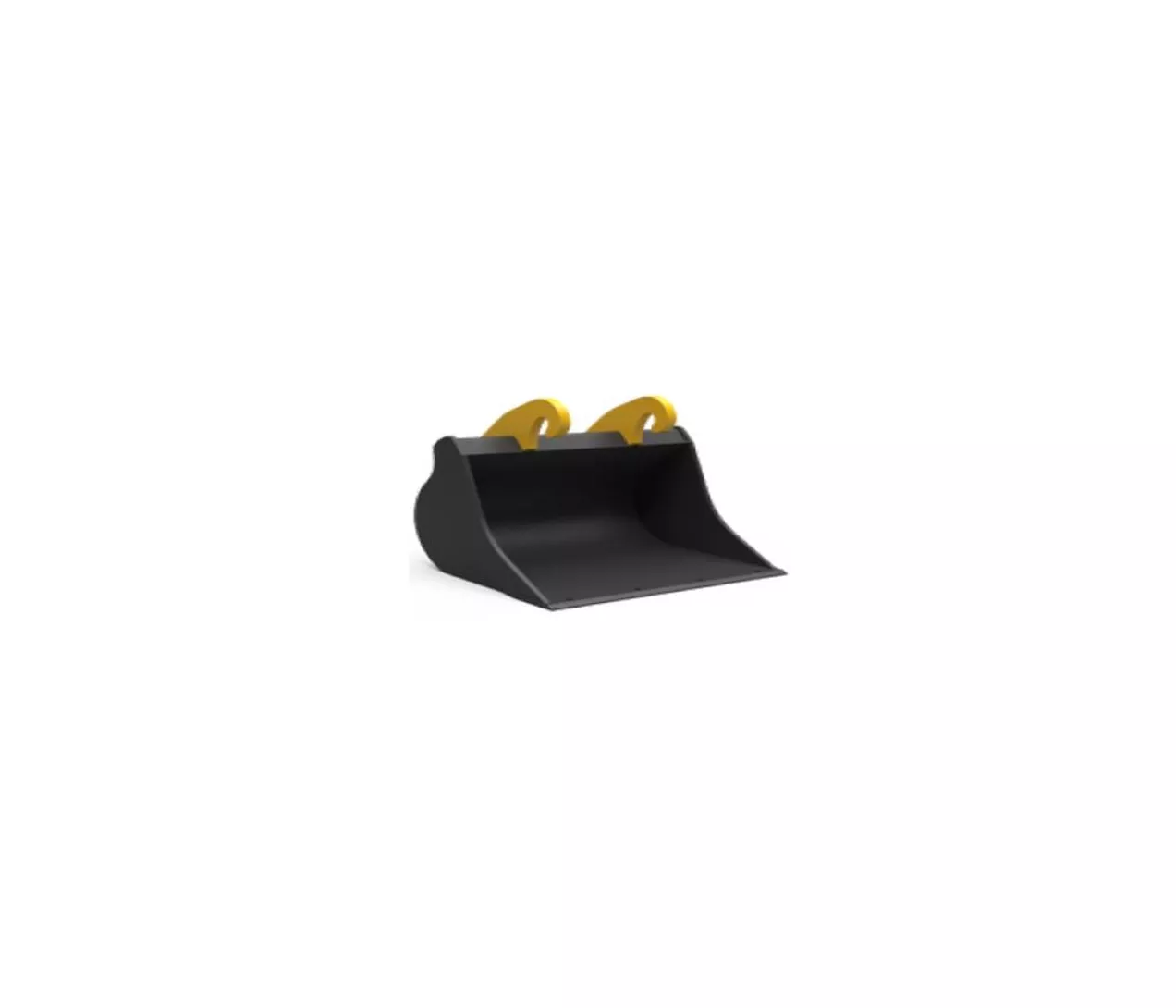

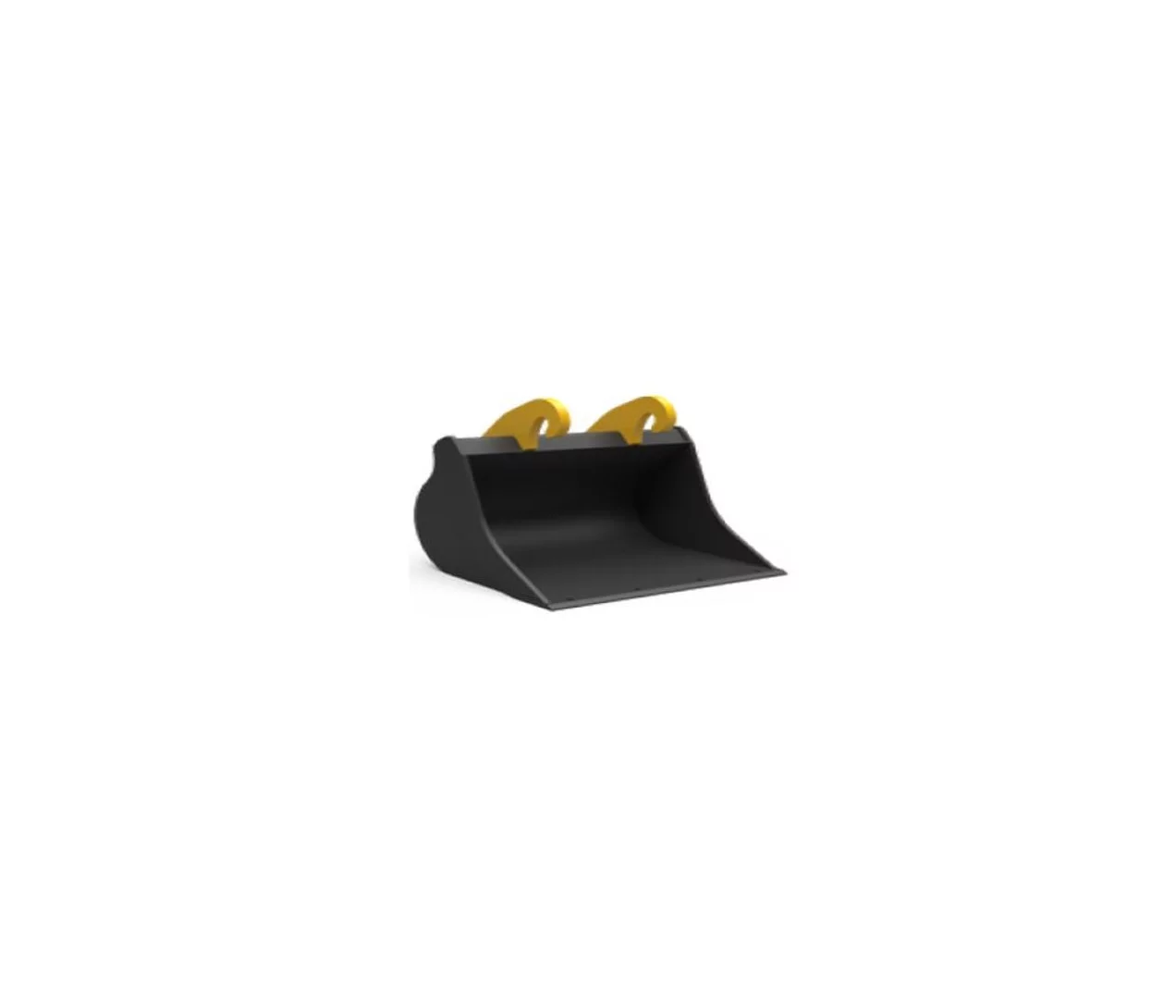

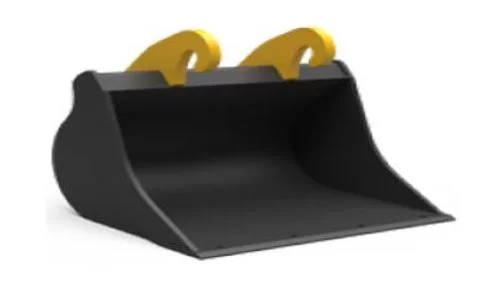

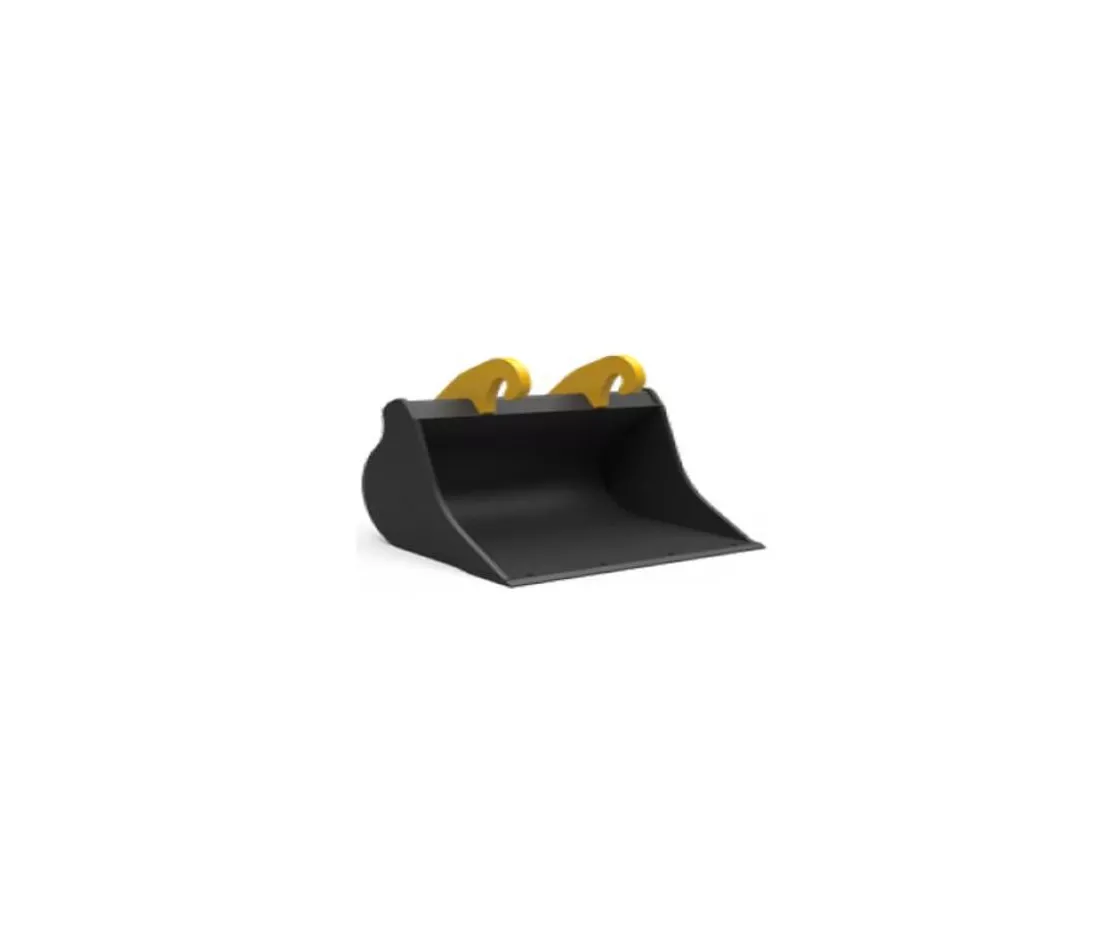

Luyckx ditch cleaning bucket - LXKB17
Excavator buckets - Ditch cleaning bucket
Luyckx manufactures its own digging buckets for excavators. Thanks to their robust construction, high-quality steel grades, and wear-resistant finish, our buckets are known for their long service life and high productivity.
Luyckx also offers custom-made digging buckets, fully tailored to your machine and specific application.
The specifications below apply to the standard version of digging buckets for machines in the 40 to 50 tonne class.
TECHNICAL SPECIFICATIONS:
| Type ditch cleaning bucket | LXKB17 |
| Reference of bucket type 17: | TT0020017 |
| Standard bucket width: | 2200mm |
| Bucket opening (A): | 1492mm |
| Depth (B): | 1560mm |
| Height (C): | 1264mm |
| Weight (from): | 1707kg |
| Capacity: | 3006L |
| Wear strips on the back | Standard |
Suspension options for ditch cleaning buckets 40-50T:
- Verachtert CW55
- Verachtert CW55small
Options / Extra's:
- Verachtert CW suspension can be equipped with a reversible version (TWIN)
- Welded cutting edge
- Bolt-on reversible cutting edge
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
