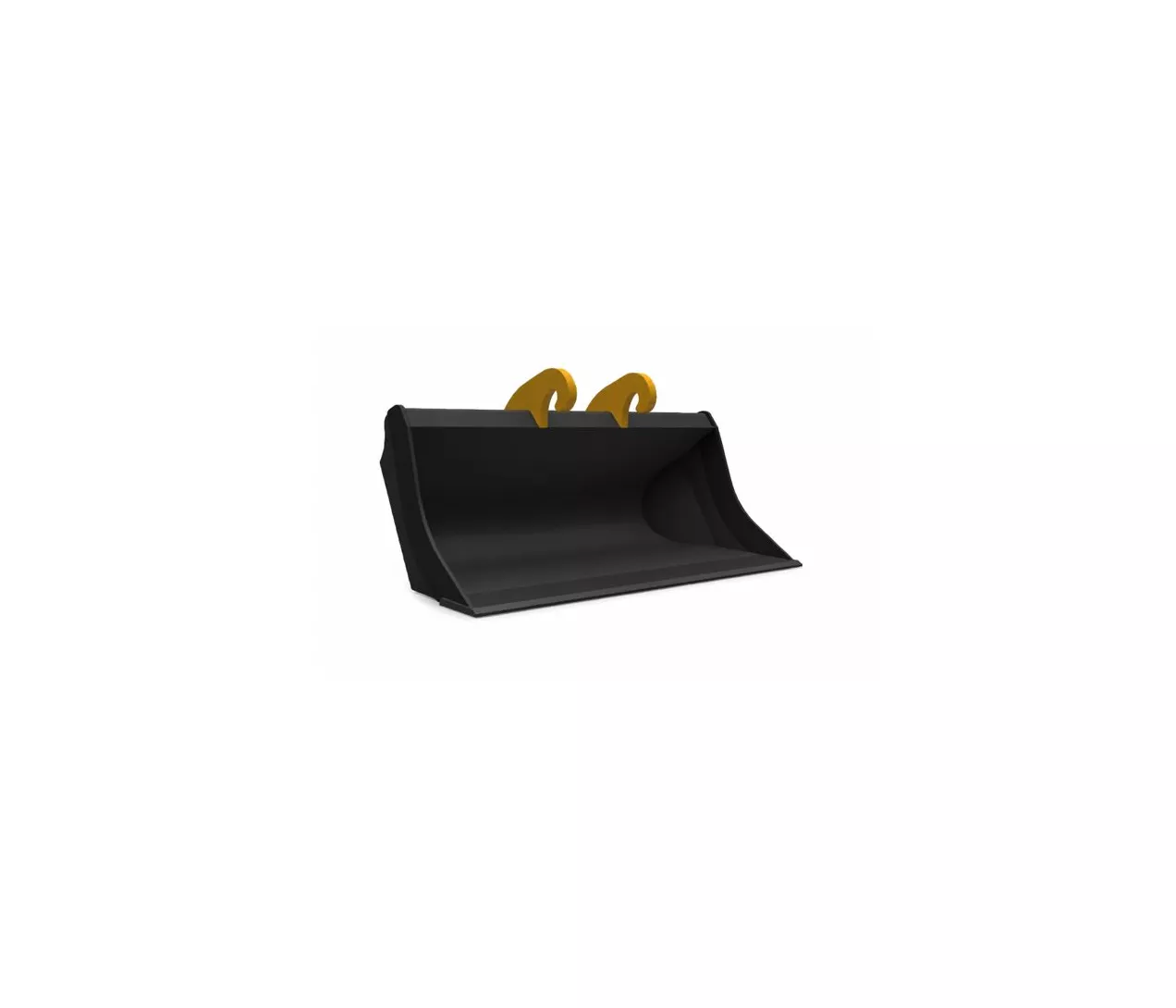

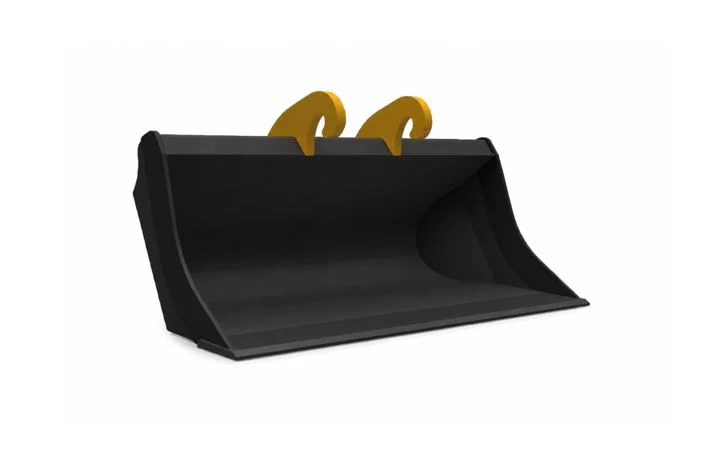

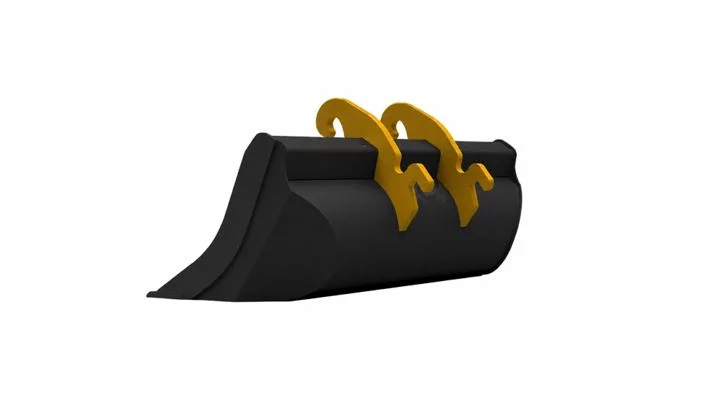

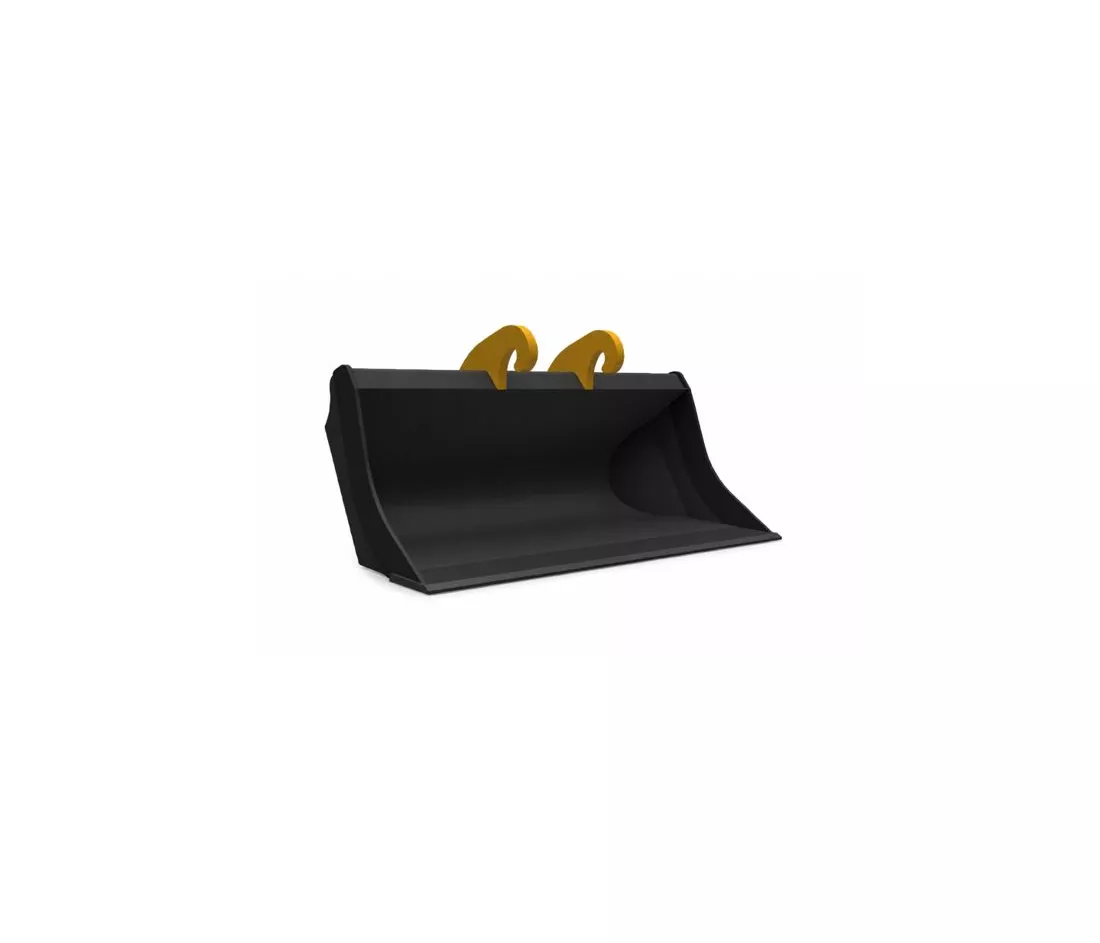

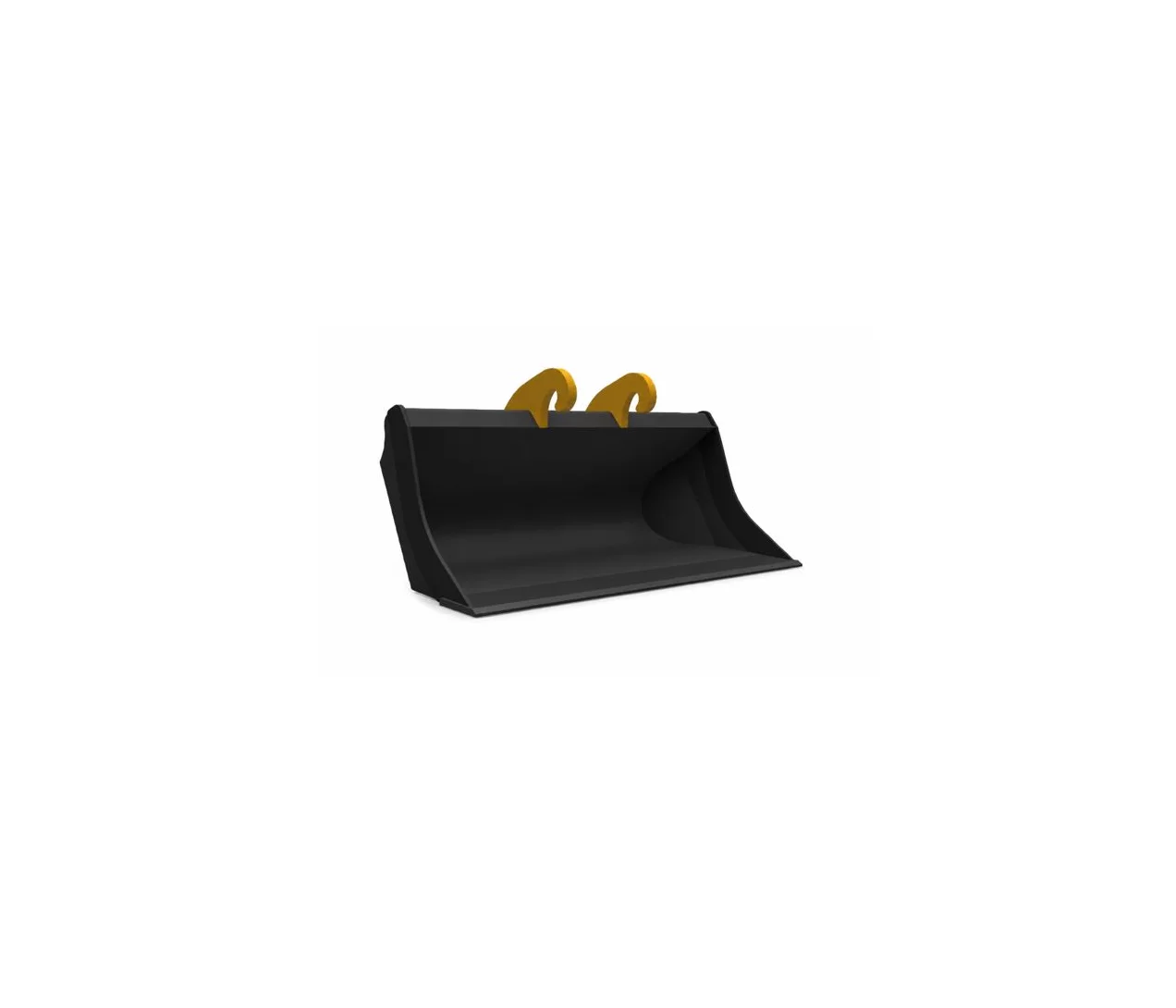

Luyckx Conical ditch cleaning bucket - LXKBC11
Luyckx manufactures its own digging buckets for excavators. Thanks to their robust construction, high-quality steel grades, and wear-resistant finish, our buckets are known for their long service life and high productivity.
Conical ditch cleaning buckets are specifically designed for use with a tiltrotator. Thanks to the conical shape of the side plates, the bucket encounters less resistance when working at an angle, resulting in improved manoeuvrability and an excellent finishing quality.
Luyckx also offers custom-made digging buckets, fully tailored to your machine and specific application.
The specifications below apply to the standard version of digging buckets for machines in the 20 to 24 tonne class.
TECHNICAL SPECIFICATIONS:
| Type ditch cleaning bucket | LXKBC11 |
| Reference of bucket: | TT0076188 |
| Standard bucket width: | 1800mm |
| Bucket opening (A): | 1040mm |
| Depth (B): | 1145mm |
| Height (C): | 831mm |
| Weight (from): | 600kg |
| Capacity: | 1120L |
| Wear strips on the back | Standard |
Suspension options for ditch cleaning buckets 20-24T:
- Verachtert CW40
- S70 System
Options / Extra's:
- Welded cutting edge
- Bolt-on reversible cutting edge
Downloads
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
