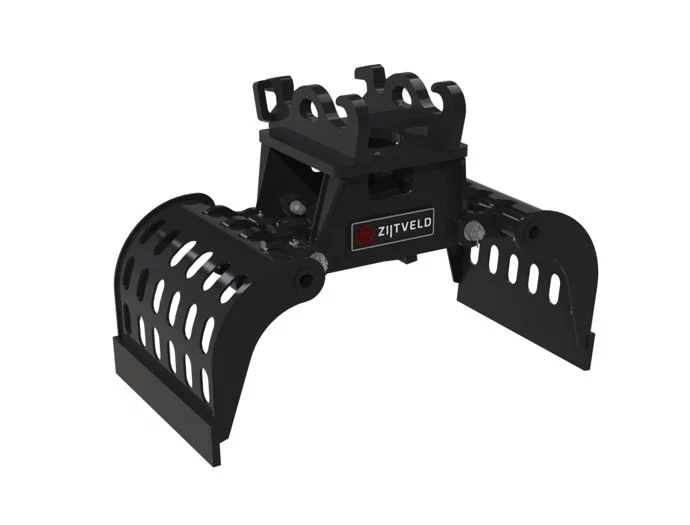

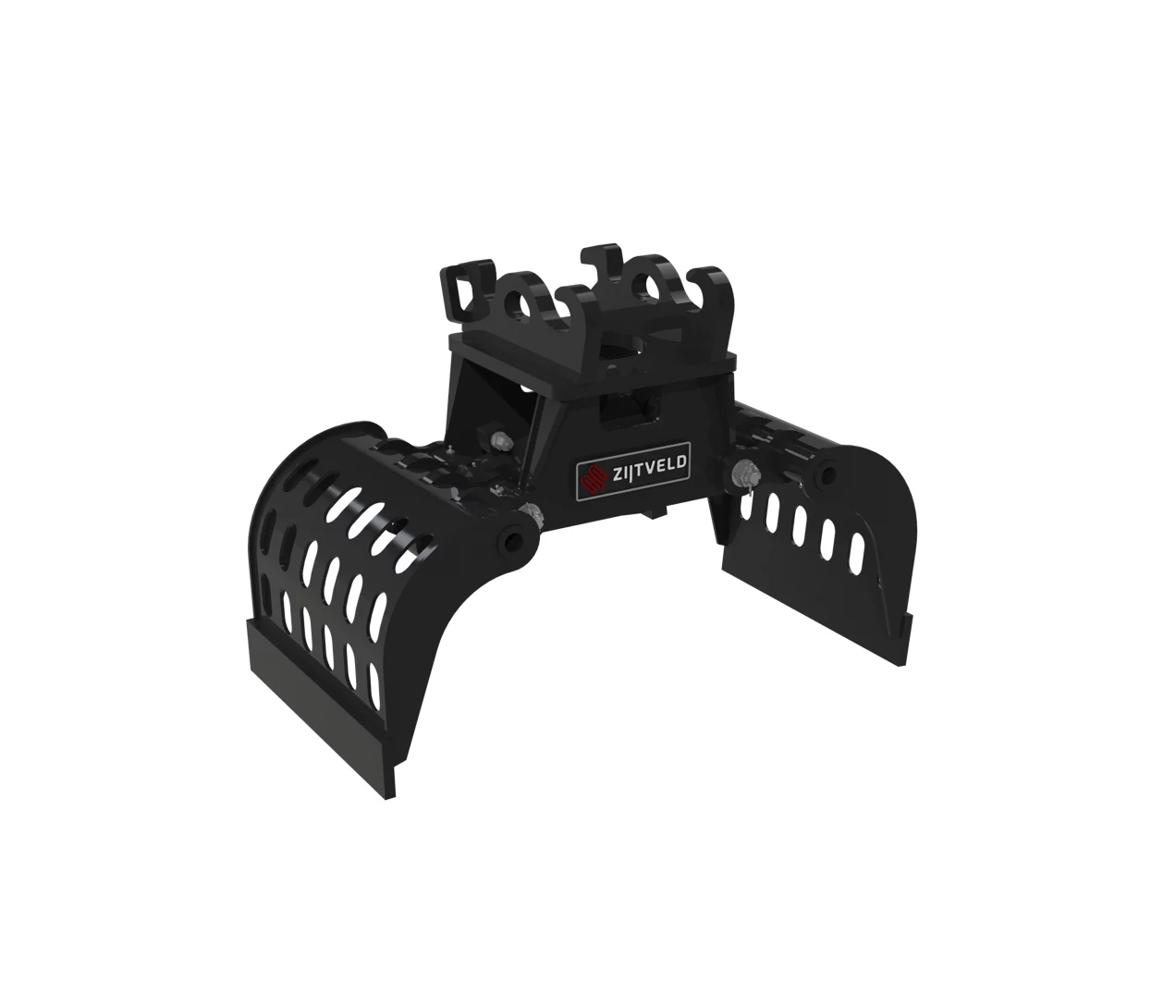

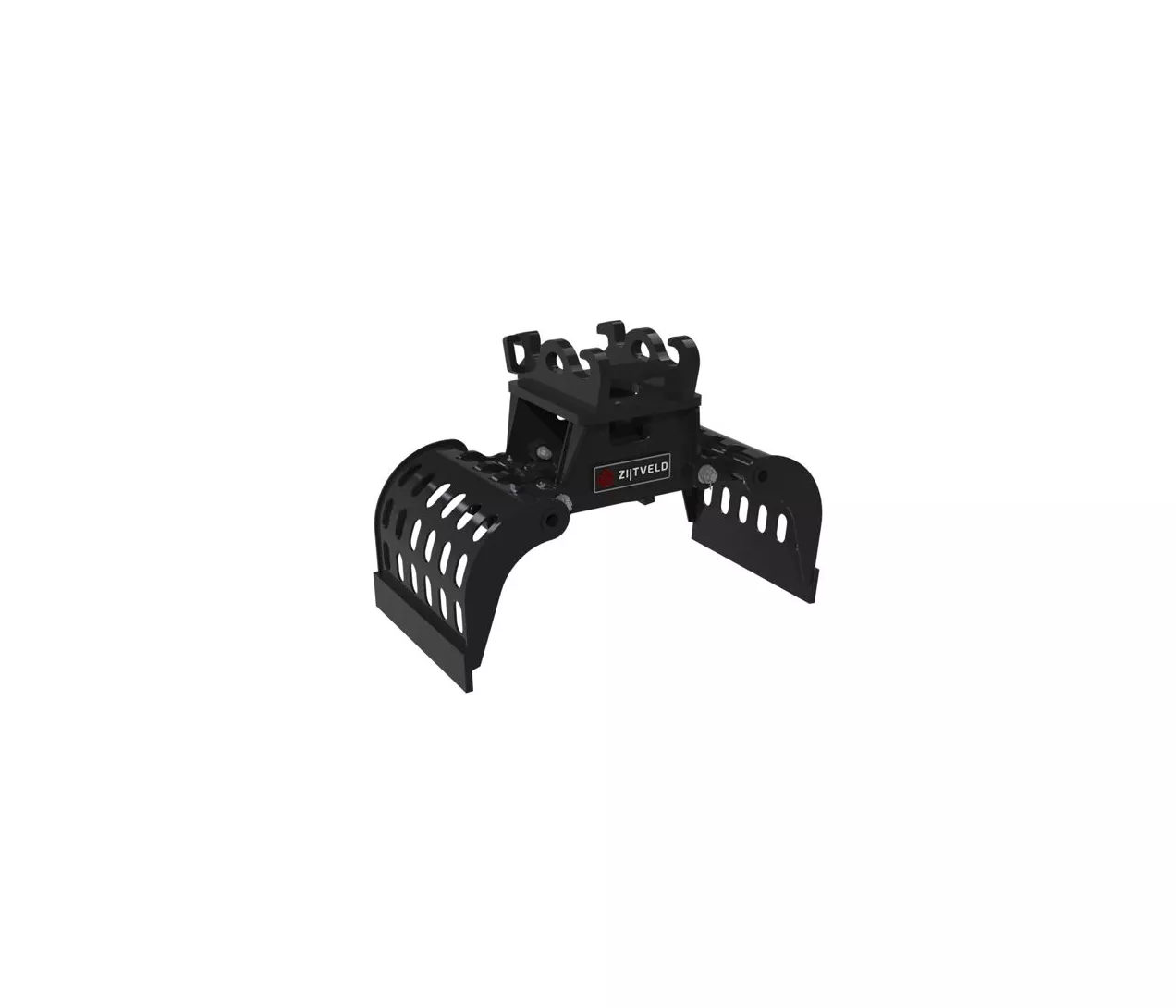

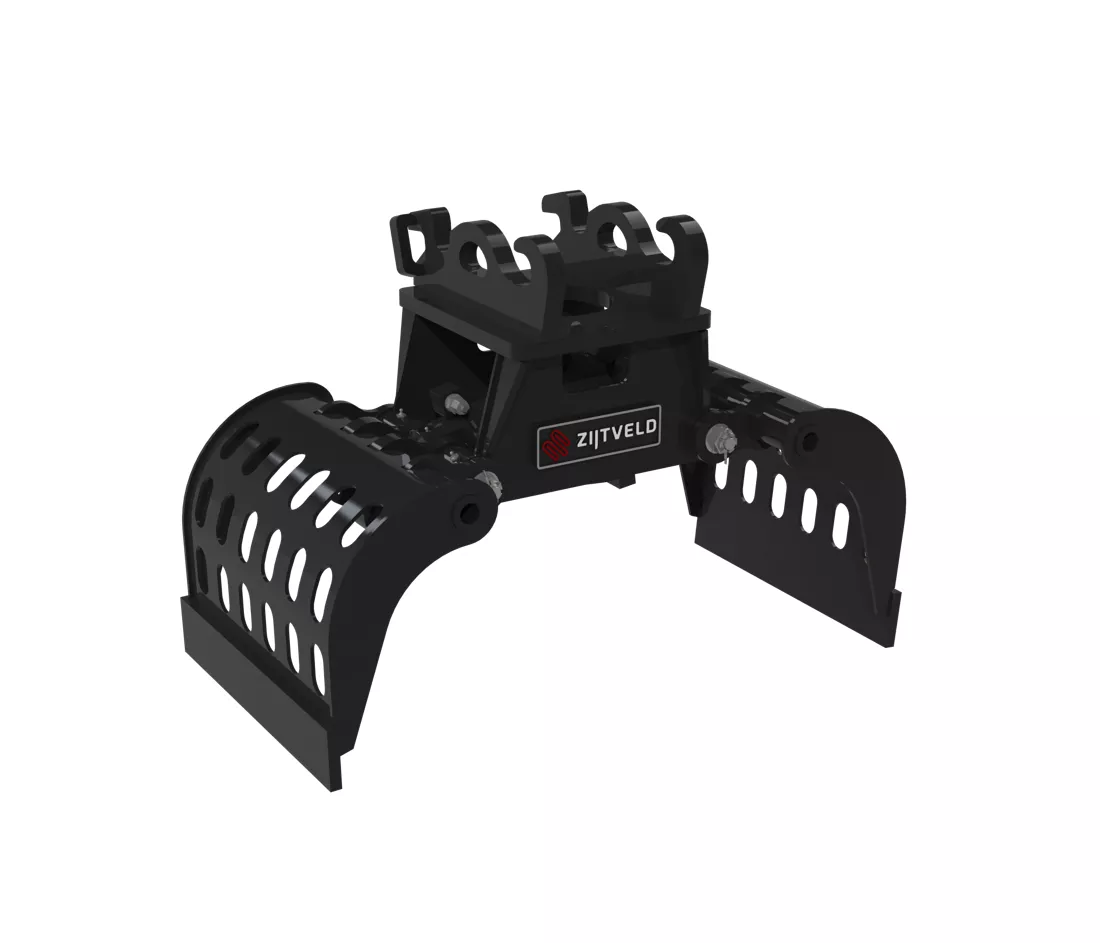

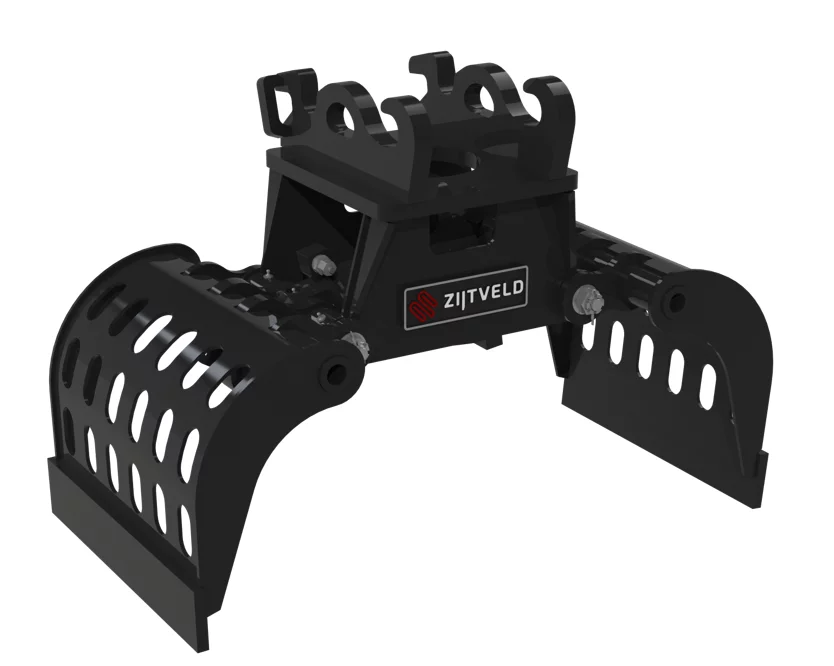

Zijtveld S150-ZD

The Zijtveld S150-ZD (fixed version) is a compact and robust sorting grapple designed for efficient and controlled operation with smaller excavators. This version without a rotator makes the grapple extra simple, low-maintenance, and cost-effective to use.

Thanks to its strong construction and the use of wear-resistant materials, this grapple offers a long service life and reliable performance, even under intensive daily use. The compact design, combined with high clamping force, ensures precise and efficient operation, even in confined spaces.

This makes the S150-ZD particularly suitable for applications in recycling, earthmoving, and light demolition work.


TECHNICAL INFORMATION:

Machine class 1.5-3T
Grapple weight: +/- 100kg
Jaw width: 450mm
Maximum opening:           800mm
Capacity: 70L
Closting force: 15kN

AVAILABLE SUSPENSIONS:

Downloads

The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
