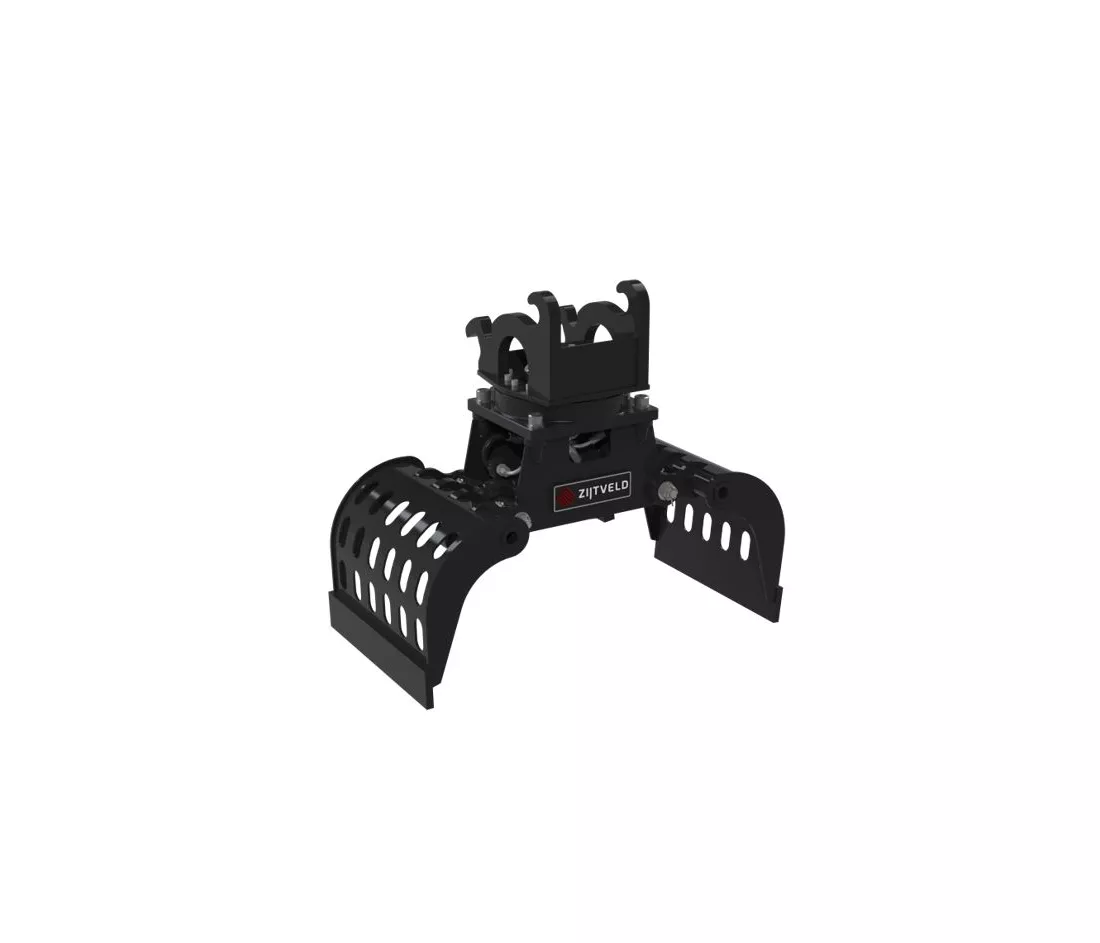

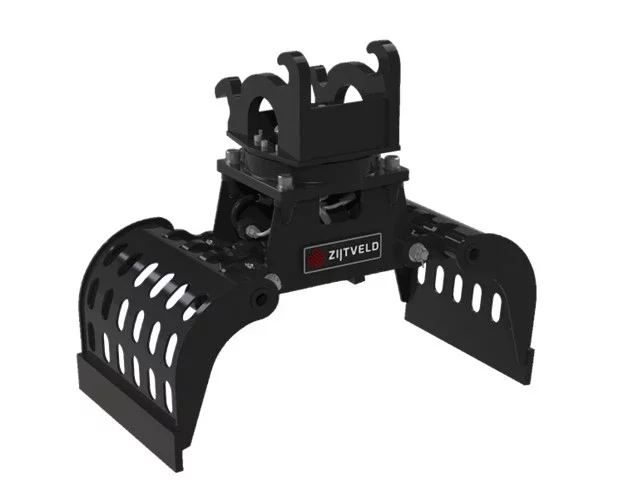

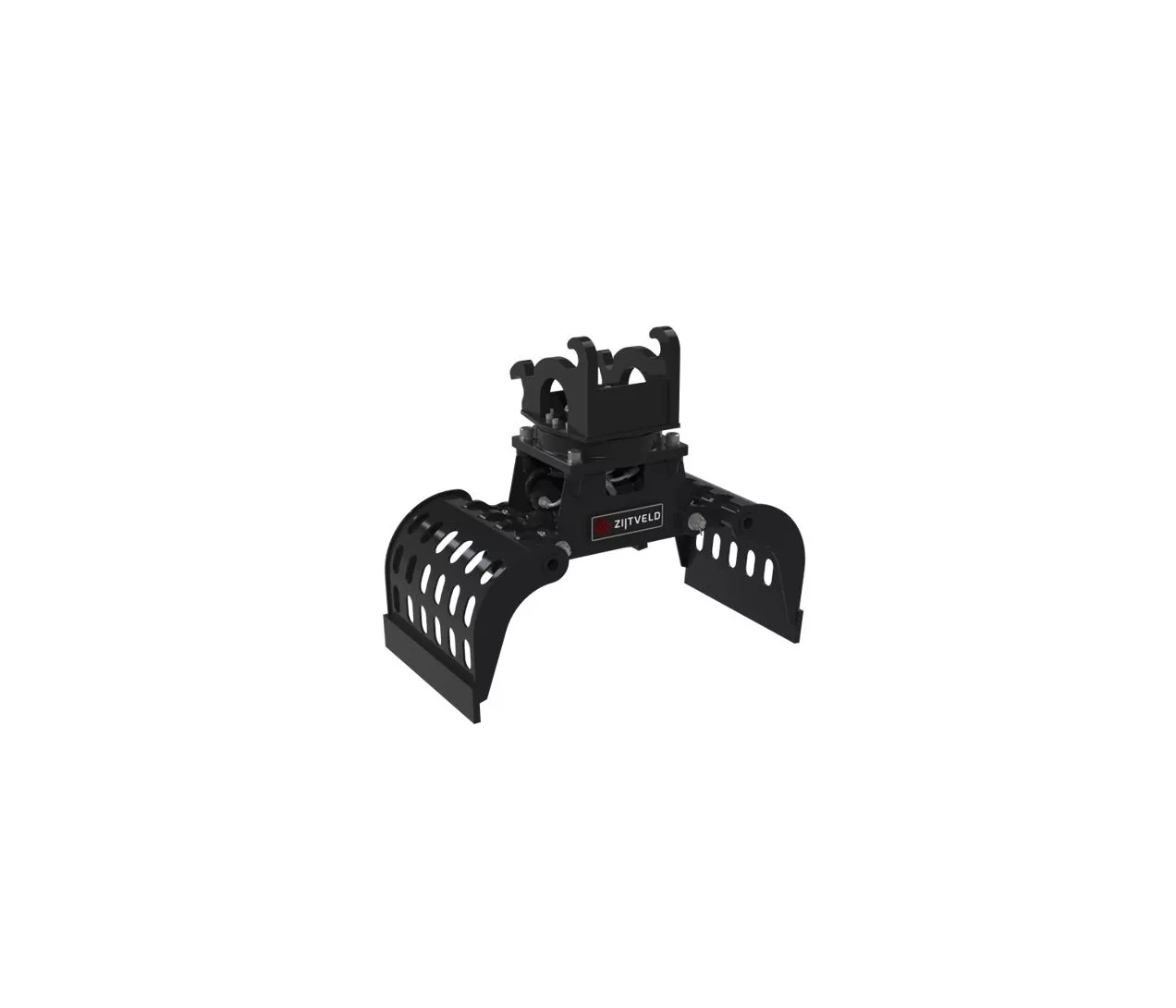

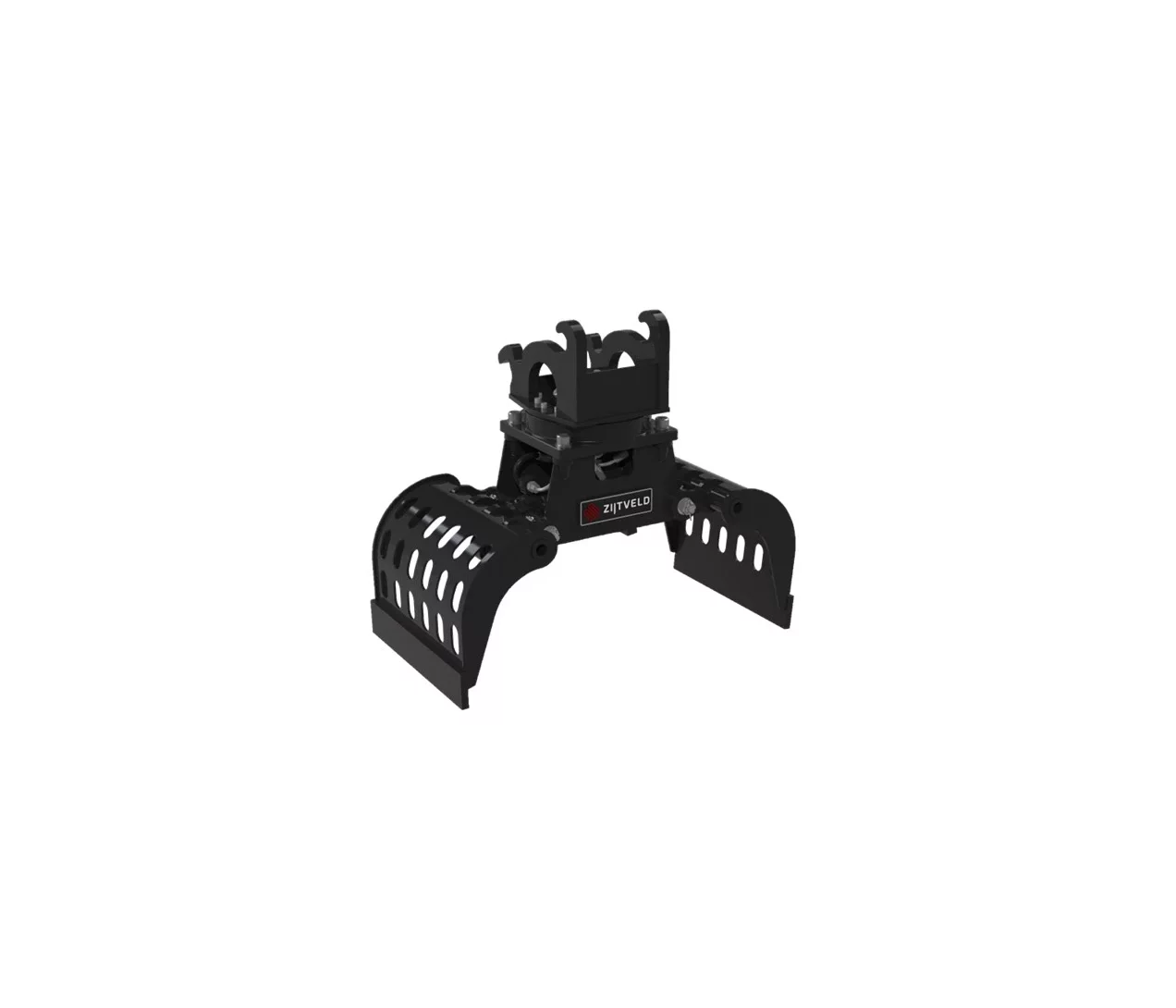

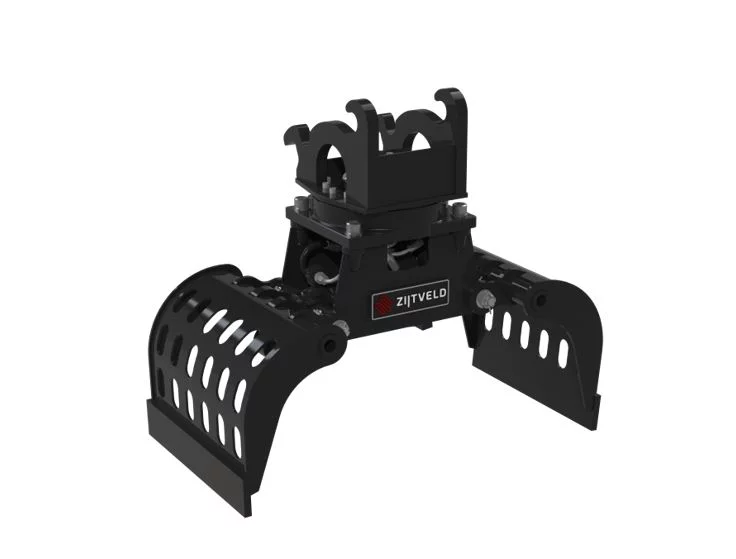

Zijtveld S150-D
The Zijtveld S150-D is a compact and powerful demolition and sorting grapple, specially designed for optimal performance on mini excavators in the 1.5 to 3-ton class. Thanks to its 360° hydraulic rotation and robust rotation system, this grapple provides maximum control and maneuverability for demolition, sorting, and handling tasks.
The S150-D is built for intensive use and tough conditions. Its reinforced central frame and wear-resistant Hardox blades ensure a long service life and minimal downtime. This makes the grapple ideal for handling rubble, wood, and scrap on both small and medium-sized projects. With a weight of approximately 140 kg and a jaw opening of around 800 mm, the S150-D combines strength with precision, while its high closing force guarantees efficient and controlled operation.
TECHNICAL INFORMATION:
| Machine class | 1.5-3T |
| Grapple weight: | +/- 140kg |
| Jaw width: | 450mm |
| Maximum opening: | 800mm |
| Capacity: | 70L |
| Closting force: | 15kN |
AVAILABLE SUSPENSIONS:
Downloads
The photographs provided in this document are for illustrative purposes only and may vary depending on the configuration. No rights can be derived from them.
